Connecting
6.3 Block diagram with connection suggestion
SINAMICS DCM DC Converter
116 Operating Instructions, 12/2018, A5E34763375A
15 to 30 A devices

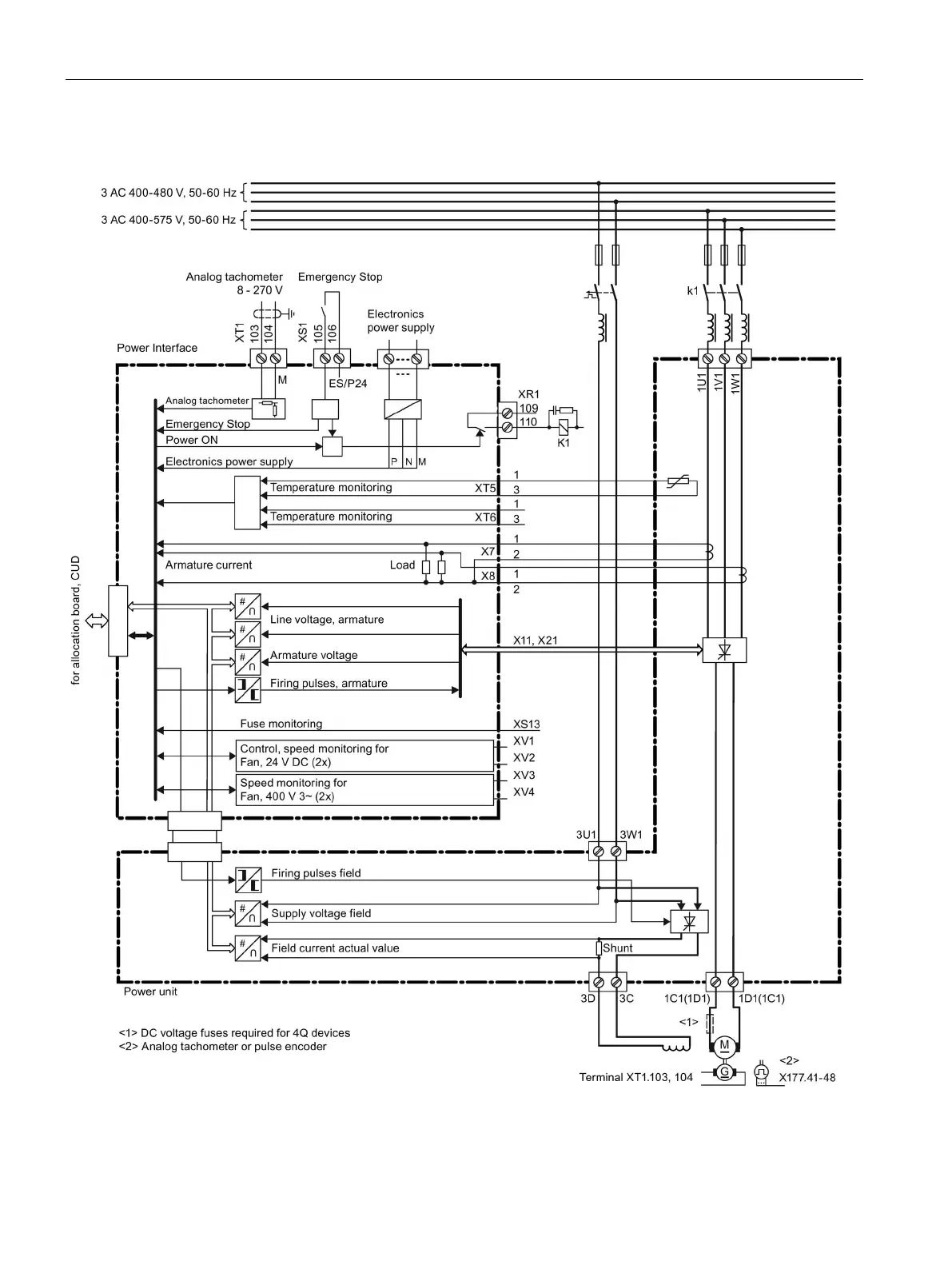

Figure 6-18 Block diagram for 15 to 30 A devices
