Connecting
6.4 Power connections
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
127
720 to 850 A/2Q devices
6RA8086-6KS22-0AA0, 6RA8087-6DS22-0AA0, 6RA8087-6FS22-0AA0,
6RA8087-6GS22-0AA0
a = 60 x 5 mm
<1> Fan with single-phase connection for devices with option L21
<2> TSE capacitor module connections:
720 A devices:
U = 91
V = 99
W = 98
C, D = 90
800 to 850 A devices:
U = 92
V = 93
W = 94
C, D = 90

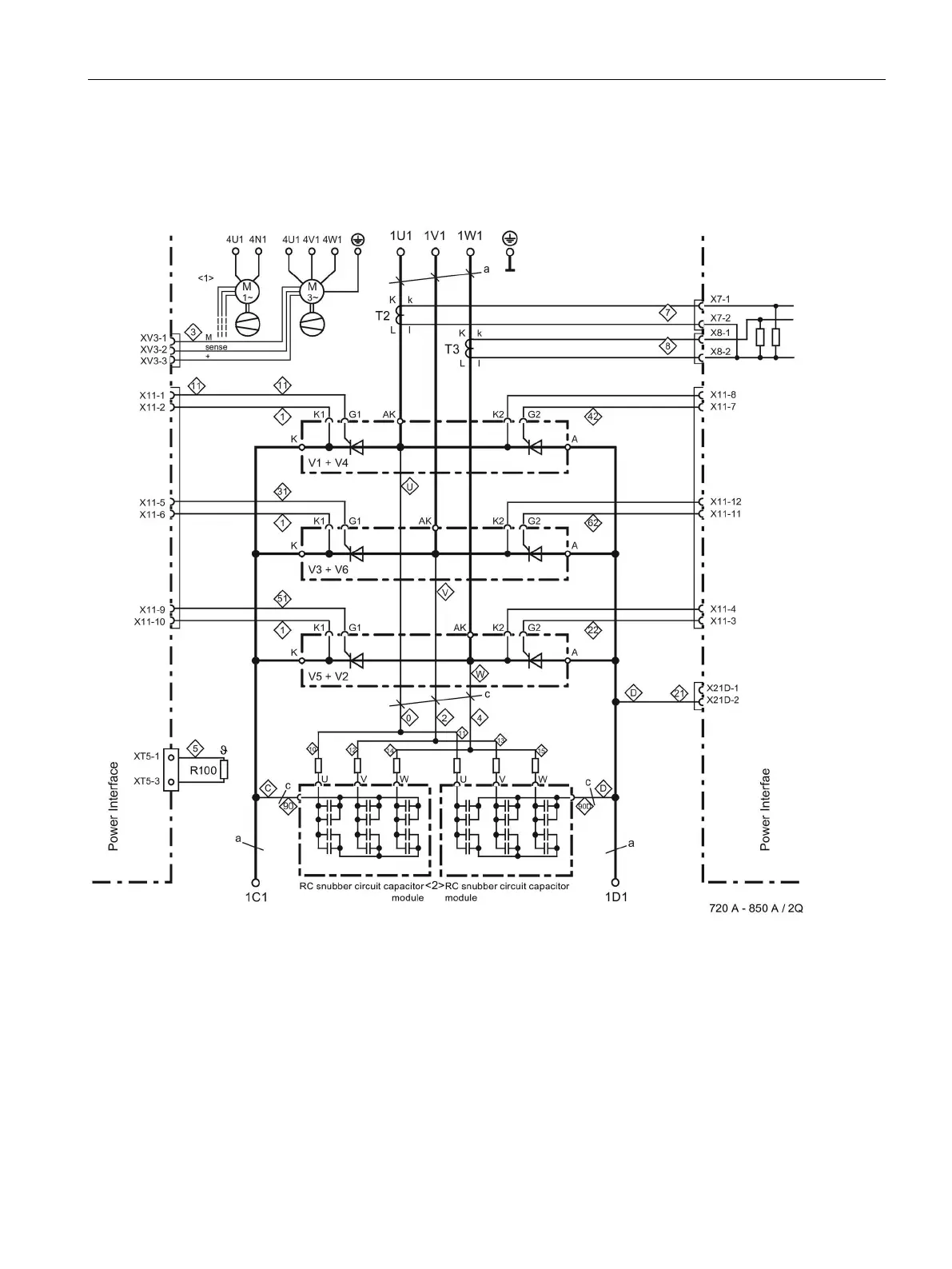

Figure 6-28 Power connections for 720 to 850 A/2Q devices
