Connecting
6.4 Power connections
SINAMICS DCM DC Converter
126 Operating Instructions, 12/2018, A5E34763375A
6RA8081-6DS22-0AA0, 6RA8081-6GS22-0AA0, 6RA8082-6FS22-0AA0,
6RA8085-6DS22-0AA0, 6RA8085-6FS22-0AA0, 6RA8085-6GS22-0AA0
<1> Fan with single-phase connection for devices with option L21
a = 30 x 5 mm, b = 35 x 5 mm

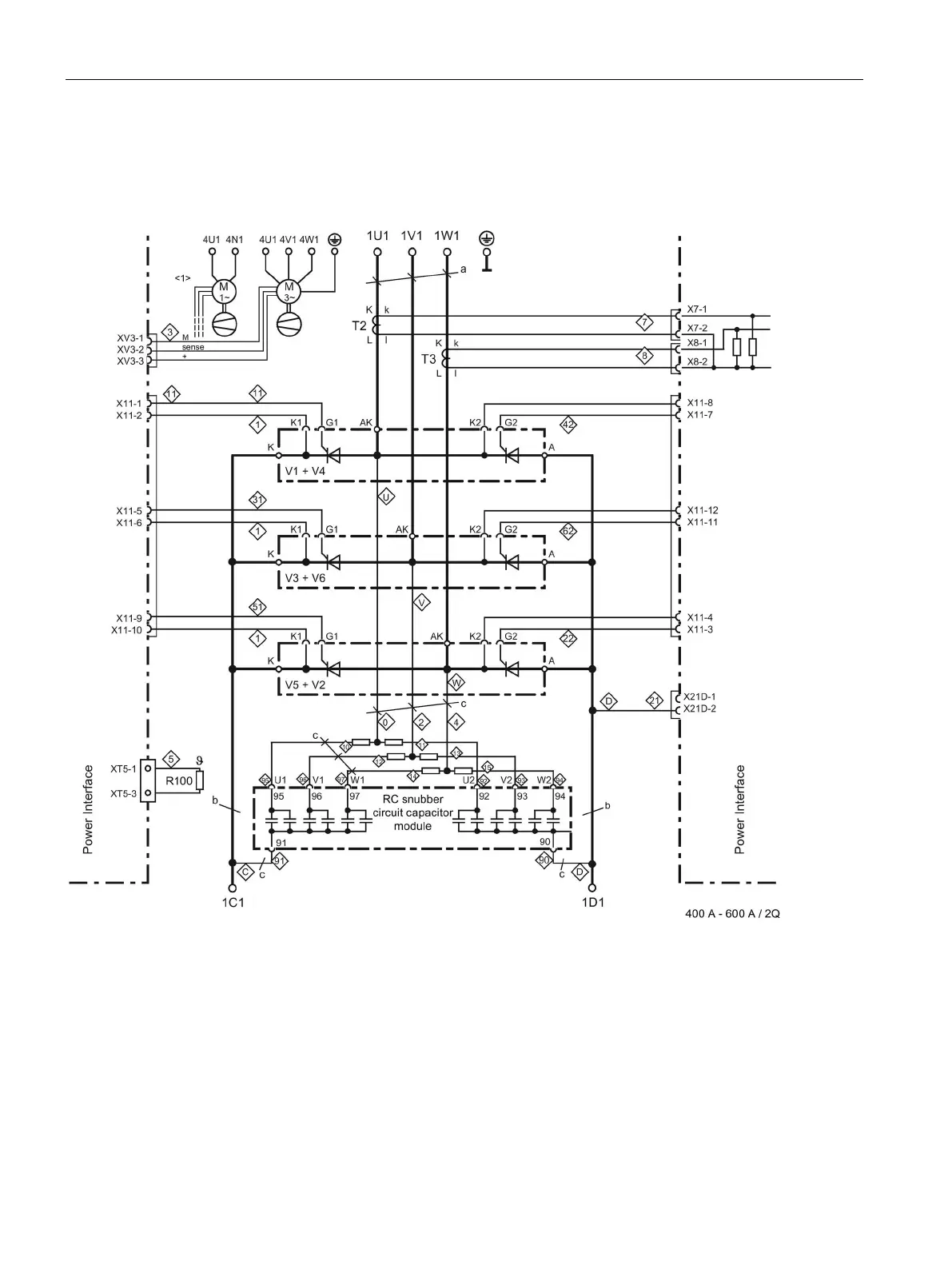

Figure 6-27 Power connections for 400 to 600 A/2Q devices
