Commissioning
8.5 Commissioning with the STARTER commissioning tool
SINAMICS DCM DC Converter
308 Operating Instructions, 12/2018, A5E34763375A

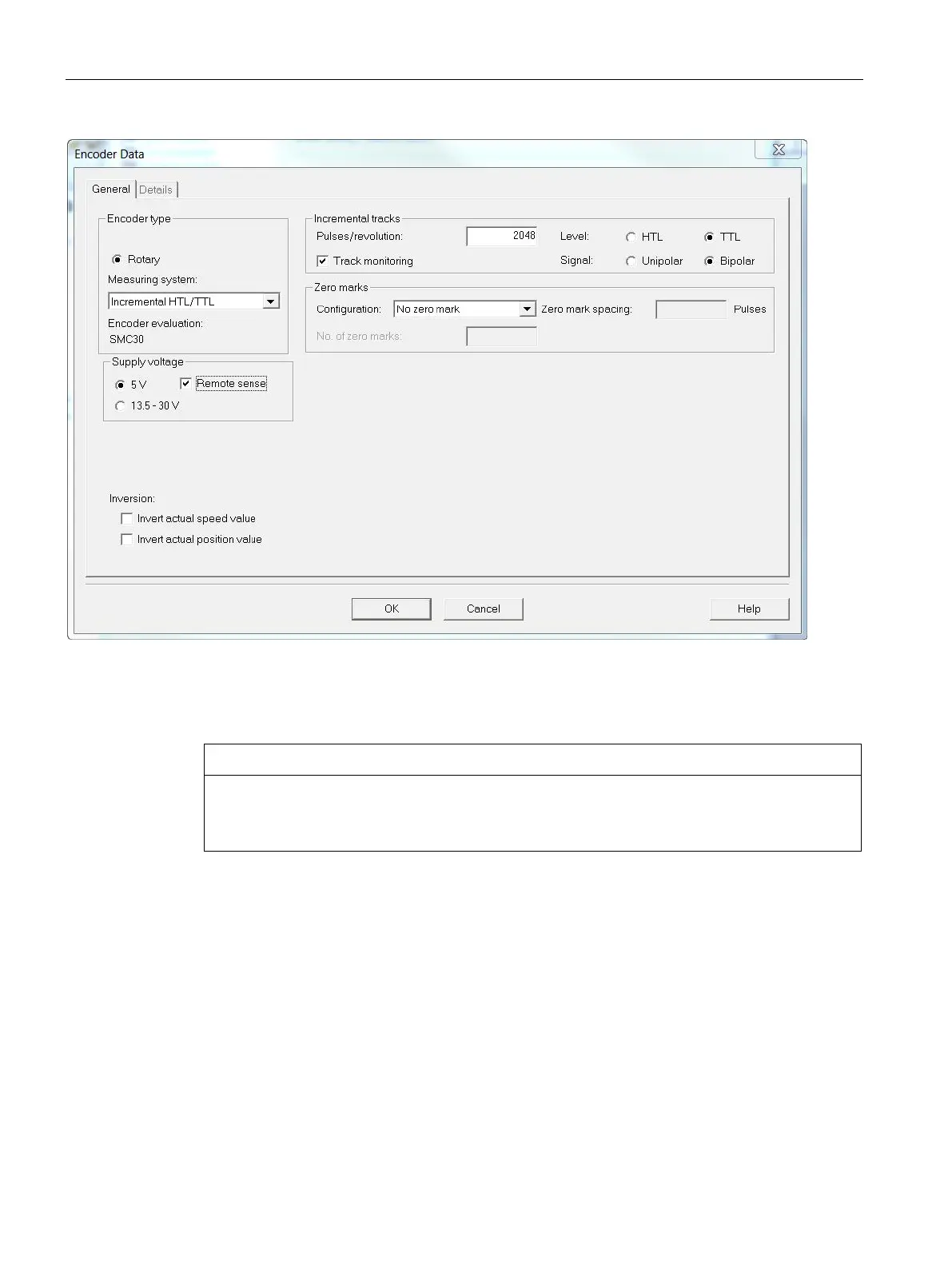

Figure 8-24 Entering encoder data – Pulse encoder via CUD
⇒ Appropriately set the
measuring system
(predominantly "incremental HTL/TTL"), the
incremental tracks
, the
level
and the
zero marks
.
NOTICE
Pulse encoder power supply at terminal X177.41 of the CUD
Terminal X177.41 always provides +15 V to supply the incremental encoder. This is
independent of the setting selected under
voltage supply
.
⇒ Click on
OK
⇒ Click on
Next
>
[3] EMF actual value internal
⇒ Enter the
EMF at maximum speed
.
(the EMF should be specified as the percentage of the voltage specified in the screen form).
⇒ Click on
Next
>
[4] Free interconnection via p50609
⇒ Enter the source with the actual value via the BICO interconnection.
⇒ Click on
Next
>
