8.5 Commissioning with the STARTER commissioning tool
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
309
[5] DRIVE-CLiQ encoder: Resolver via Sensor Module Cabinet SMC10
The resolver is connected via the Sensor Module Cabinet SMC10.
⇒ Select
encoder 2
to activate the evaluation of the encoder via the Sensor Module Cabinet
SMC10.
⇒
To select a predefined encoder configuration click on the radio button
Select standard
encoder from list
, and select one of the encoders that is listed.
The following resolvers can be evaluated via the Sensor Module Cabinet SMC10:
● [1001] resolver 1-speed
● [1002] Resolver 2-speed
● [1003] Resolver 3-speed
● [1004] Resolver 4-speed
⇒ To enter special encoder configurations, click the
Enter data
radio button and then the
Encoder data
button. The following input screen is displayed for you to enter the required
data.

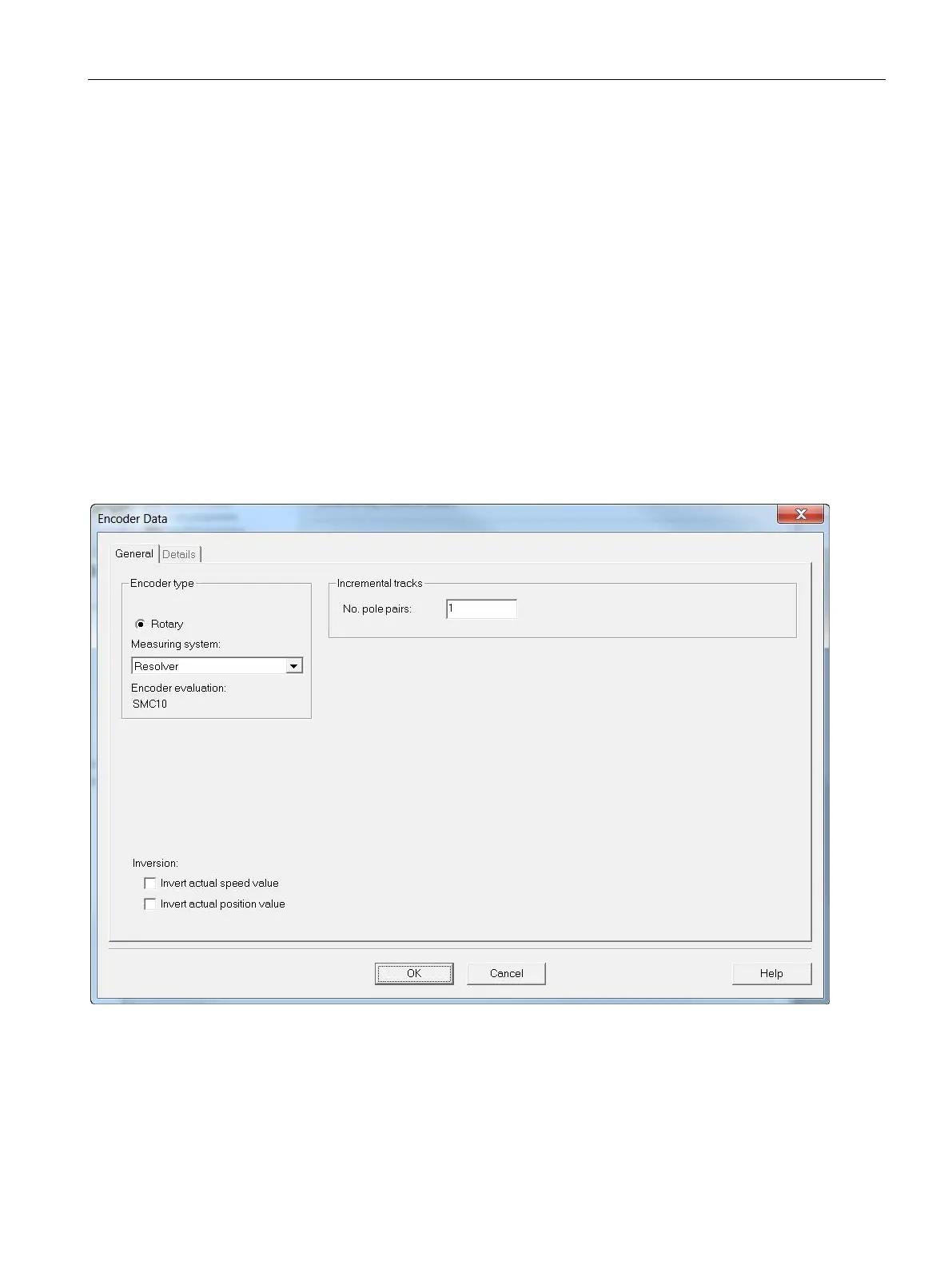

Figure 8-25 Entering encoder data – Resolver via SMC10
⇒ Enter the pole pair number.
⇒ Click on
OK
