6.1 Instructions for EMC-compliant drive installation
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
101
Connecting terminal on copper bar, max. cable diameter 15 mm
Notice! Risk of pinching cable if screws tightened too much
Bus-mounting terminal on copper bar, max. cable diameter 10 mm
Notice! Risk of pinching cable if screws tightened too much
Metallic tube or cable tie on bare metallic comb-type/toothed bar
Clamp with metallic backing plate on cable support rail

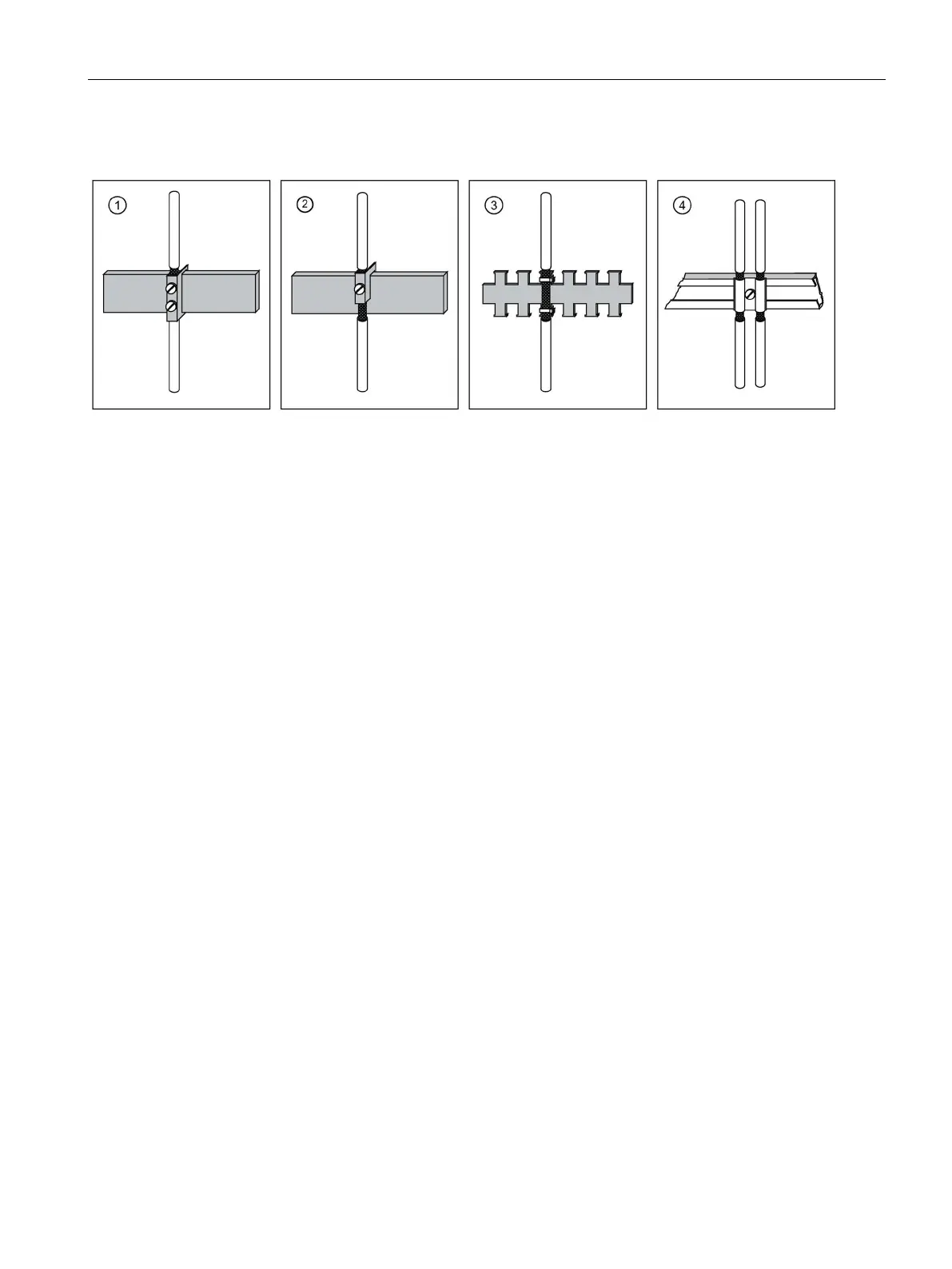

Figure 6-8 Shield connection
