Additional system components
7.1 Option Board: Communication Board Ethernet CBE20
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
193
Interface description
7.1.3.1

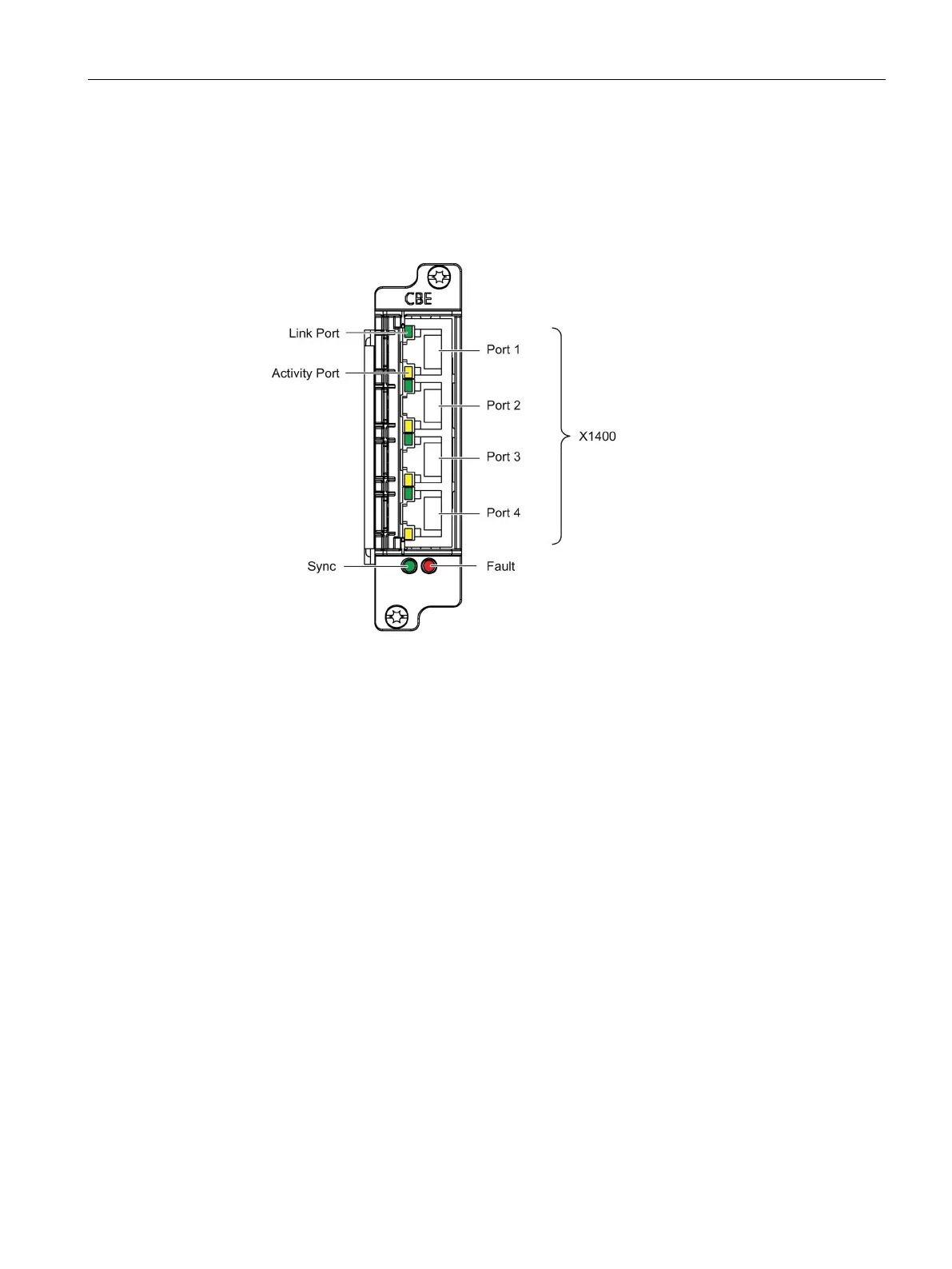

Figure 7-1 Interface description CBE20
The MAC address of the Ethernet interface is located on the upper side of the board.
