8.5 Commissioning with the STARTER commissioning tool
SINAMICS DCM DC Converter
288 Operating Instructions, 12/2018, A5E34763375A
Installing the STARTER commissioning tool
Download STARTER here: STARTER download
(https://support.industry.siemens.com/cs/de/en/ps/13437/dl).
STARTER is installed using the "setup" file. When you double-click the "Setup" file, the
installation wizard guides you through the process of installing STARTER.
Layout of the STARTER user interface
STARTER provides these 4 operating areas:

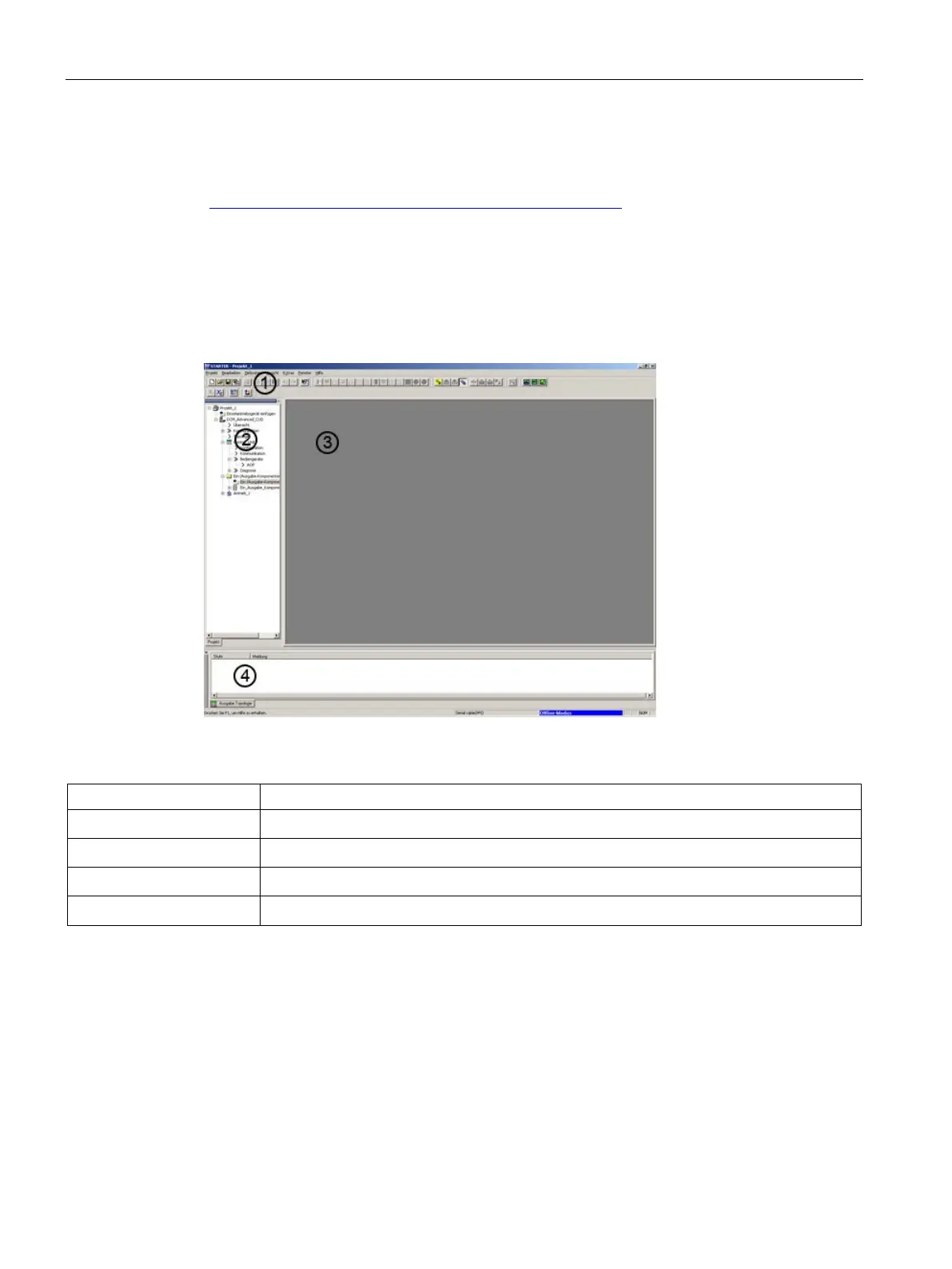

Figure 8-5 STARTER operating areas
Toolbars
In this area, you can access frequently used functions by clicking icons.
Project navigator
The elements and objects contained in the project are displayed in this area.
Working area
Changes to the drive units are made in this area.
Detail view
This area displays detailed information, for instance about faults and alarms.
