7.1 Option Board: Communication Board Ethernet CBE20
SINAMICS DCM DC Converter
194 Operating Instructions, 12/2018, A5E34763375A
7.1.3.2
X1400 Ethernet interface

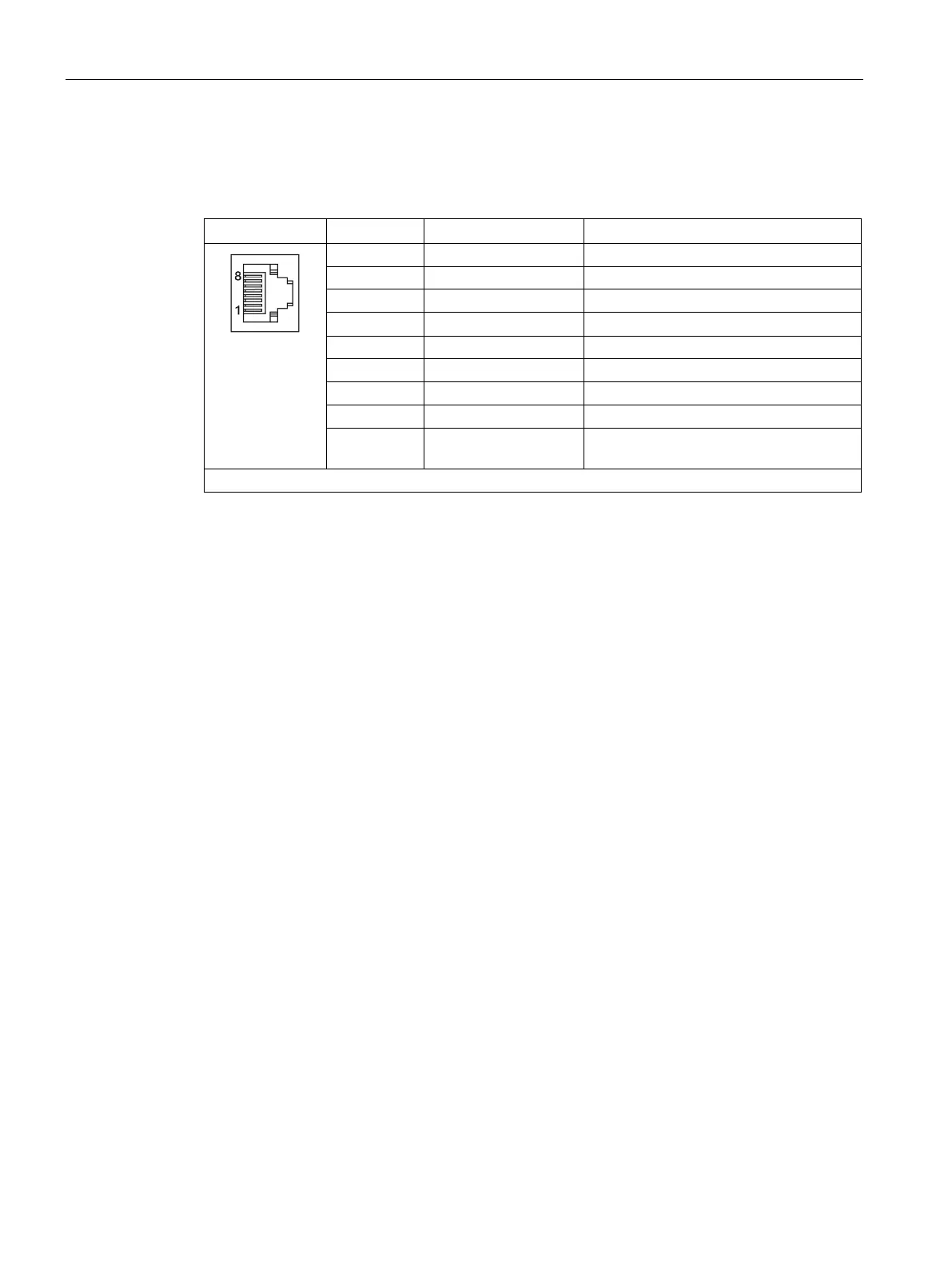

Table 7- 1 X1400 Ethernet, ports 1-4
Pin
Signal name
Technical specifications
1
RXP
Receive data +
2
RXN
Receive data -
3
TXP
Transmit data +
4 Reserved, do not use
5
Reserved, do not use
6
TXN
Transmit data -
7
Reserved, do not use
8
Reserved, do not use
Screened
backshell
M_EXT Screen, permanently connected
Connector type: RJ45 socket
For diagnostic purposes, the ports have one green and one yellow LED.
Cable and connector types
Information on PROFINET cables and connectors can be found in the following catalog:
Industrial Communication
Catalog IK PI, 2009 Edition,
