Connecting

6.3 Block diagram with connection suggestion

SINAMICS DCM DC Converter

114 Operating Instructions, 12/2018, A5E34763375A

6.3

Block diagram with connection suggestion

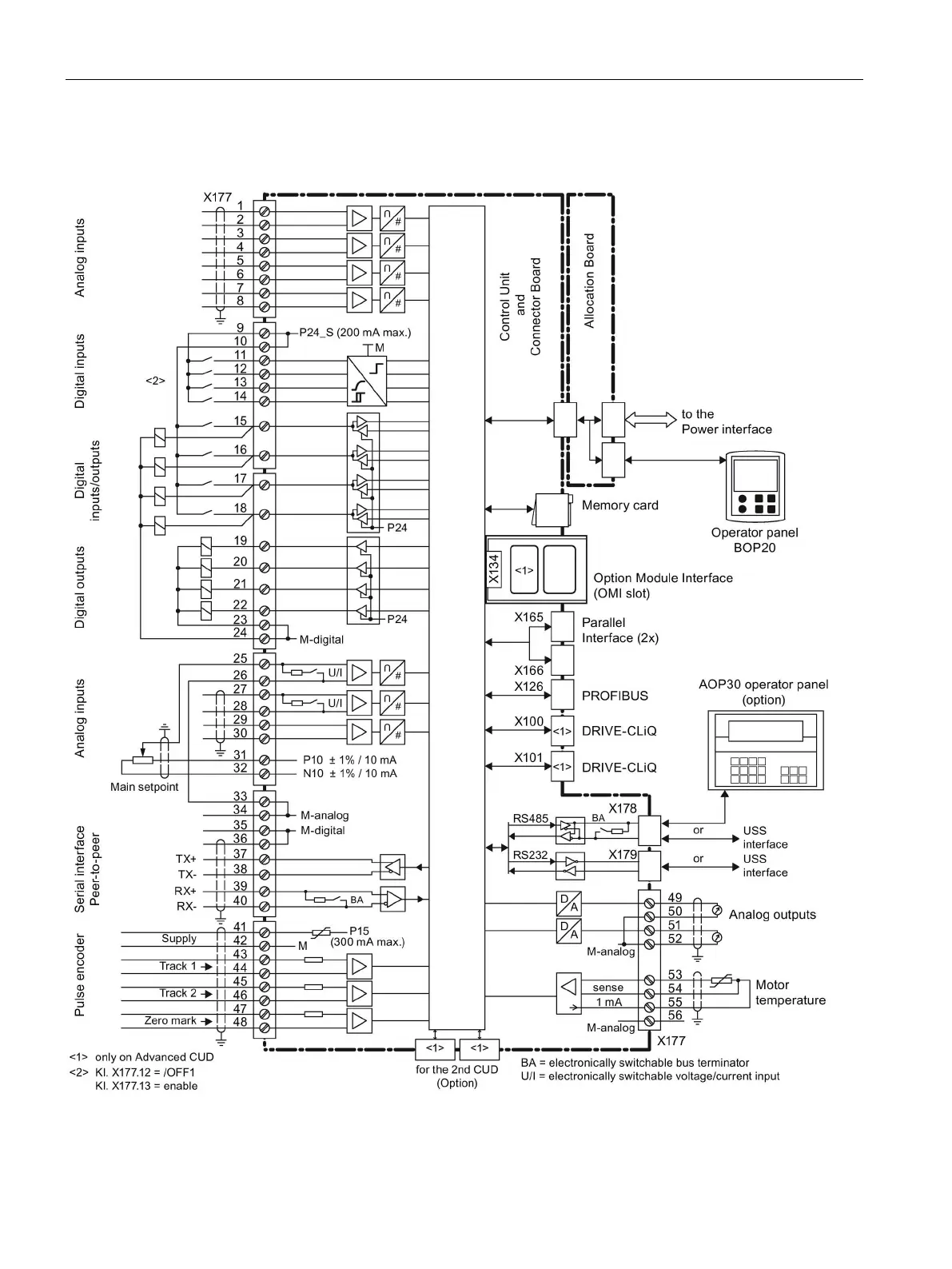

Figure 6-17 Open-loop/closed-loop control section block diagram
