6.2 Cable routing into the unit
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
113
Routing the functional safety cable
Route the cable into the device from the bottom.
Connect the cable to terminals X200, X201.
Strain relief of the cables through positioning on shield clamps on the lower edge of the housing.

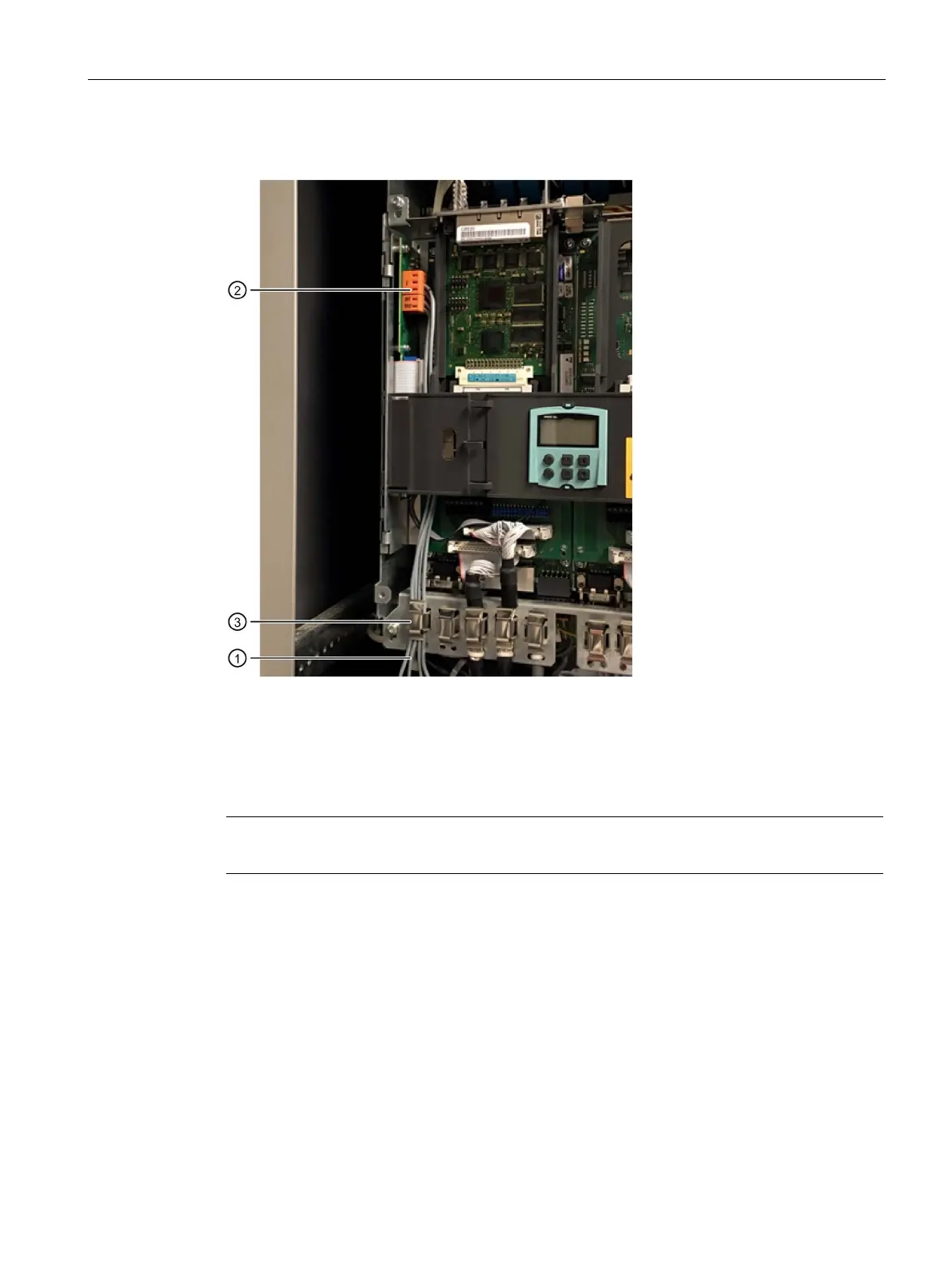

Figure 6-16 Routing the functional safety cable
Note
It is not required to u
se shielded cables and shield connection in the device.
