6.2 Cable routing into the unit
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
107
Cable routing into the unit
Cable routing example
Note
Cables, which are not mechanically fixed in the device, must be externally fixed.

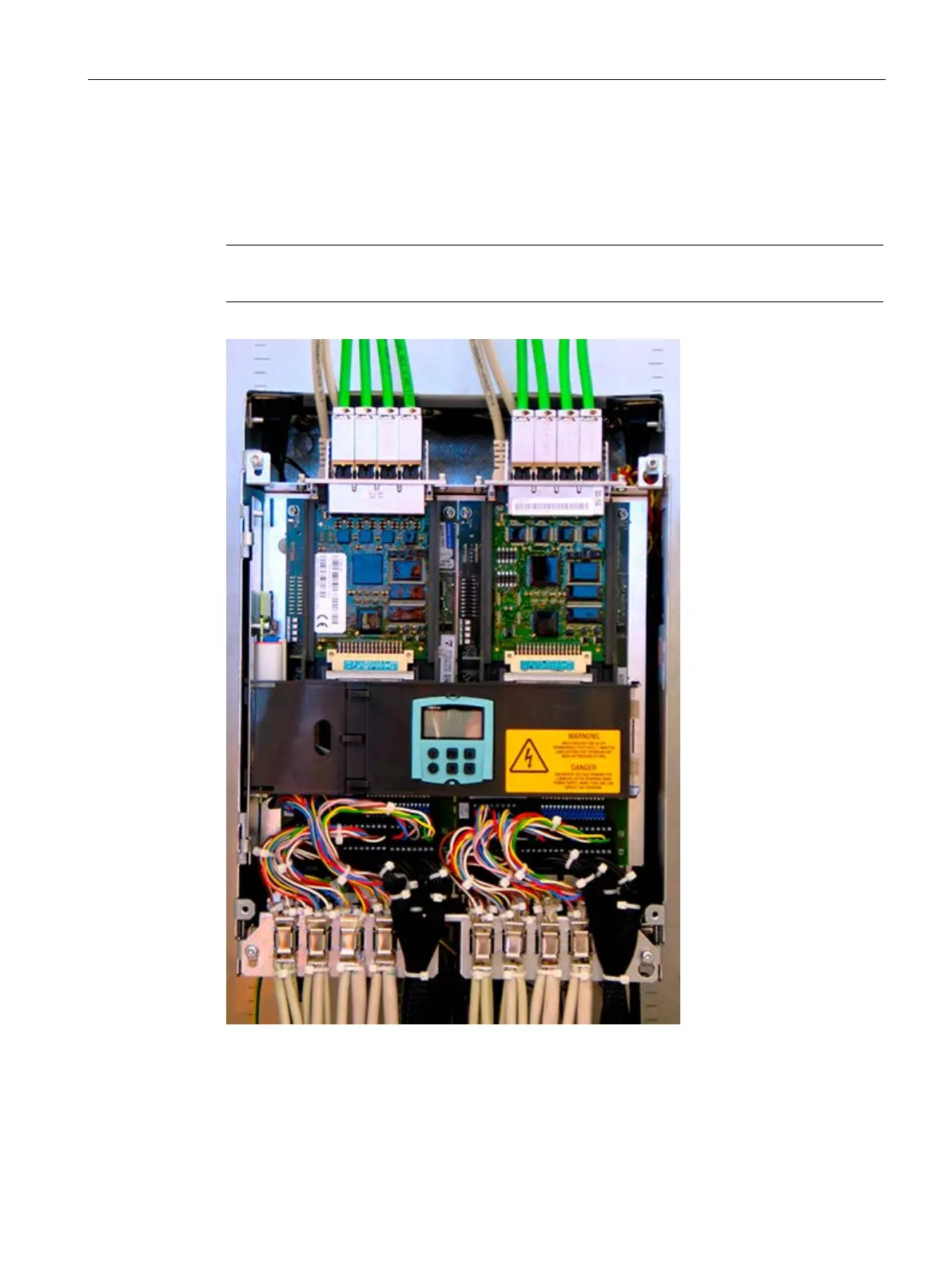

Figure 6-10 Example for cable routing when fully expanded
