Connecting
6.2 Cable routing into the unit
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
109
Option L05: Connecting the electronic power supply
Devices with "Power interface with DC electronic power supply"
Use a cable tie to attach the cable to the circuit board (Power Interface)

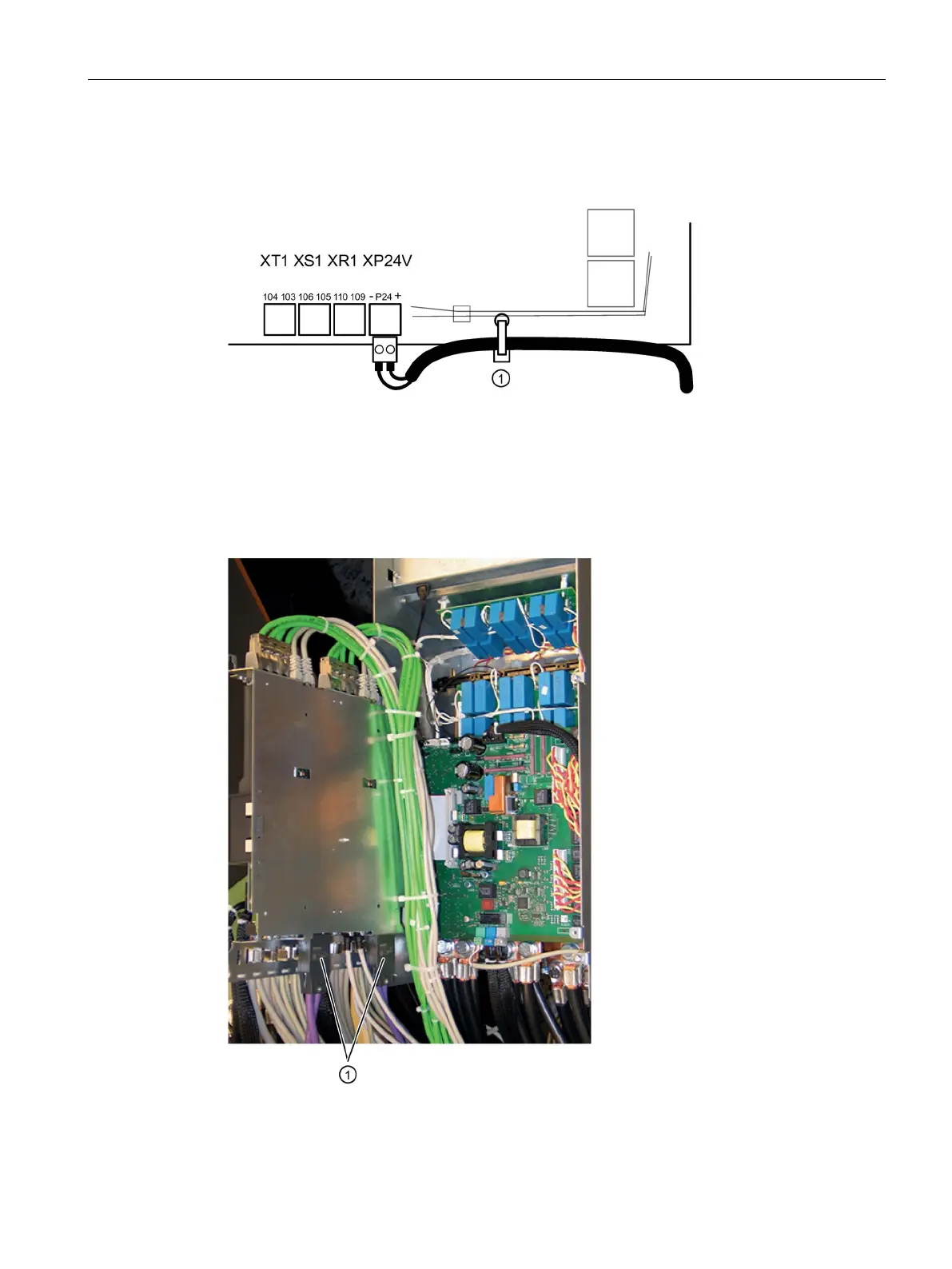

Figure 6-12 Option L05, electronic power supply
The maximum cable length is 30 m.
Connection for the PROFIBUS cable
Figure 6-13 Positions of the PROFIBUS connections
