Connecting
6.4 Power connections
SINAMICS DCM DC Converter
138 Operating Instructions, 12/2018, A5E34763375A
400 V/3000 A, 575 V/2800 A, 690 V/2600 A, 950 V/2200 A/4Q devices
6RA8096-4MV62-0AA0, 6RA8097-4GV62-0AA0, 6RA8097-4KV62-0AA0,
6RA8098-4DV62-0AA0
a = 120 x 10 mm, b = cross-section 60 x 10 mm / width 323 mm

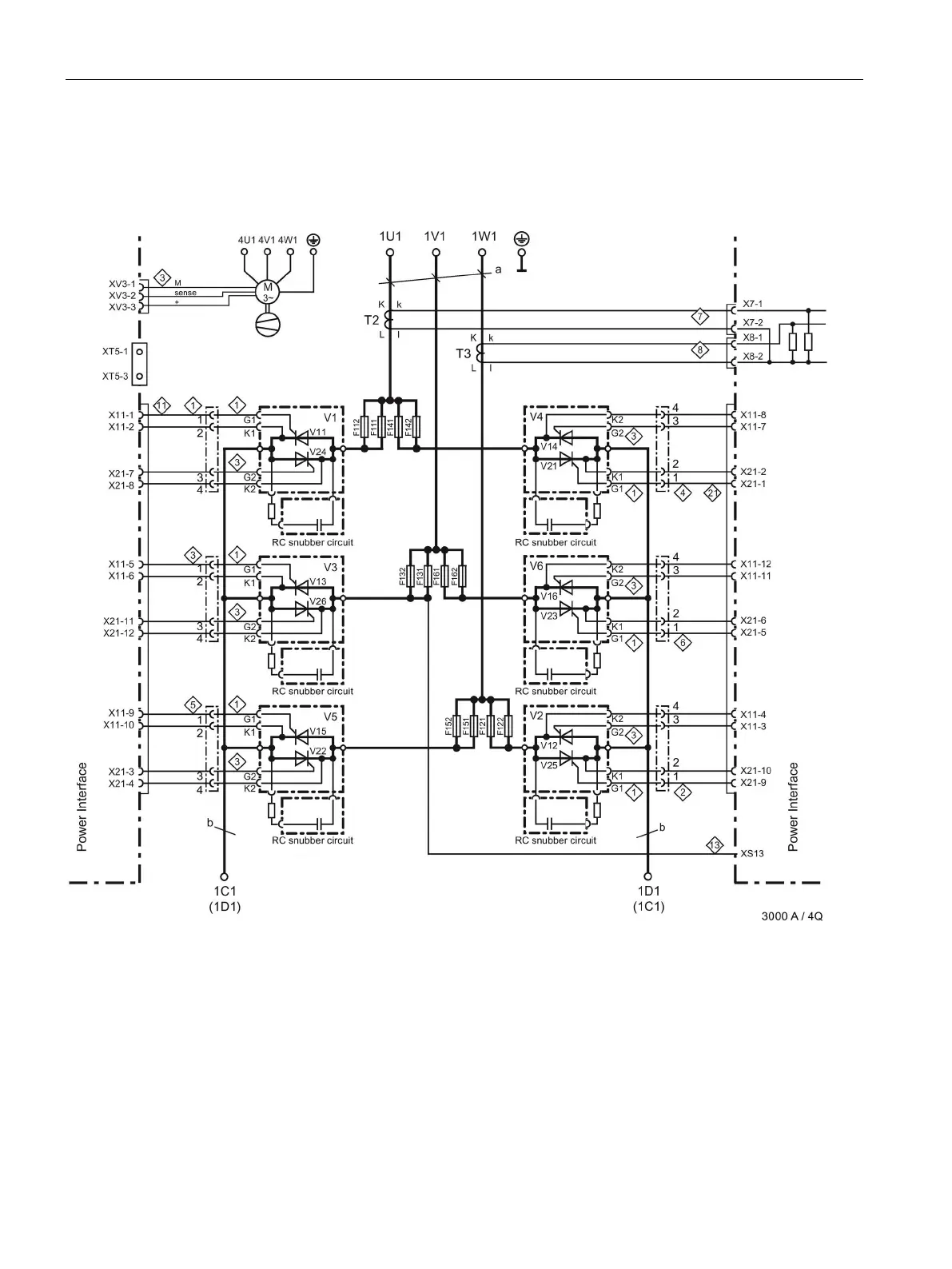

Figure 6-39 Power connections for 2200 to 3000 A/4Q devices
