Connecting
6.8 Arrangement of terminals and connectors
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
159
Module – Power Interface for 2Q devices, 400 - 600 V with AC electronic power supply

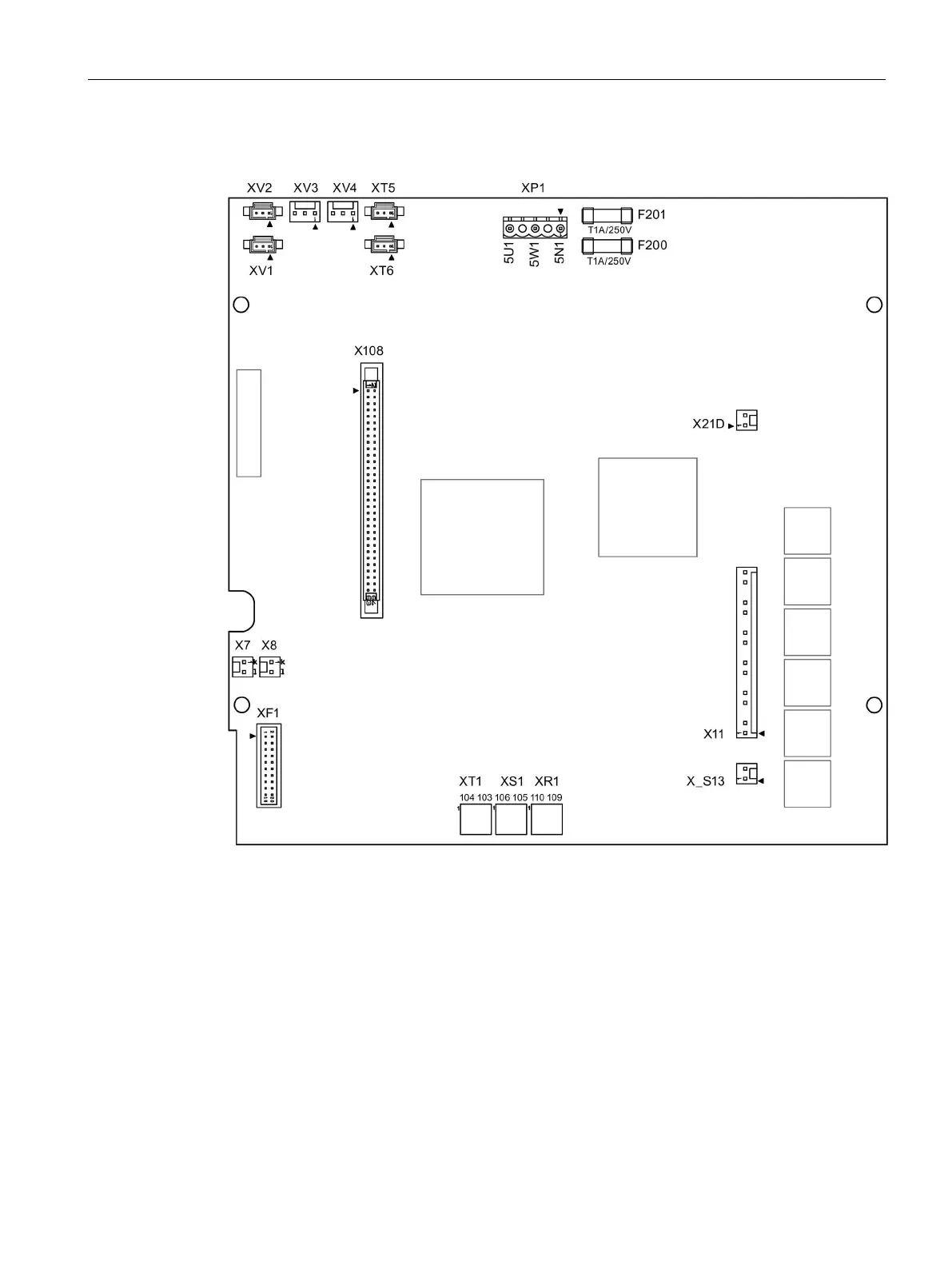

Figure 6-47 Terminal/connector arrangement on the "Power Interface for 2Q devices, 400 - 600 V
with AC electronic power supply"
