Connecting
6.8 Arrangement of terminals and connectors
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
161
Module – Power Interface for 690 - 950 V devices with AC electronic power supply
<1> Connector X21 not fitted on 2Q devices
Connector X21D not fitted on 4Q devices

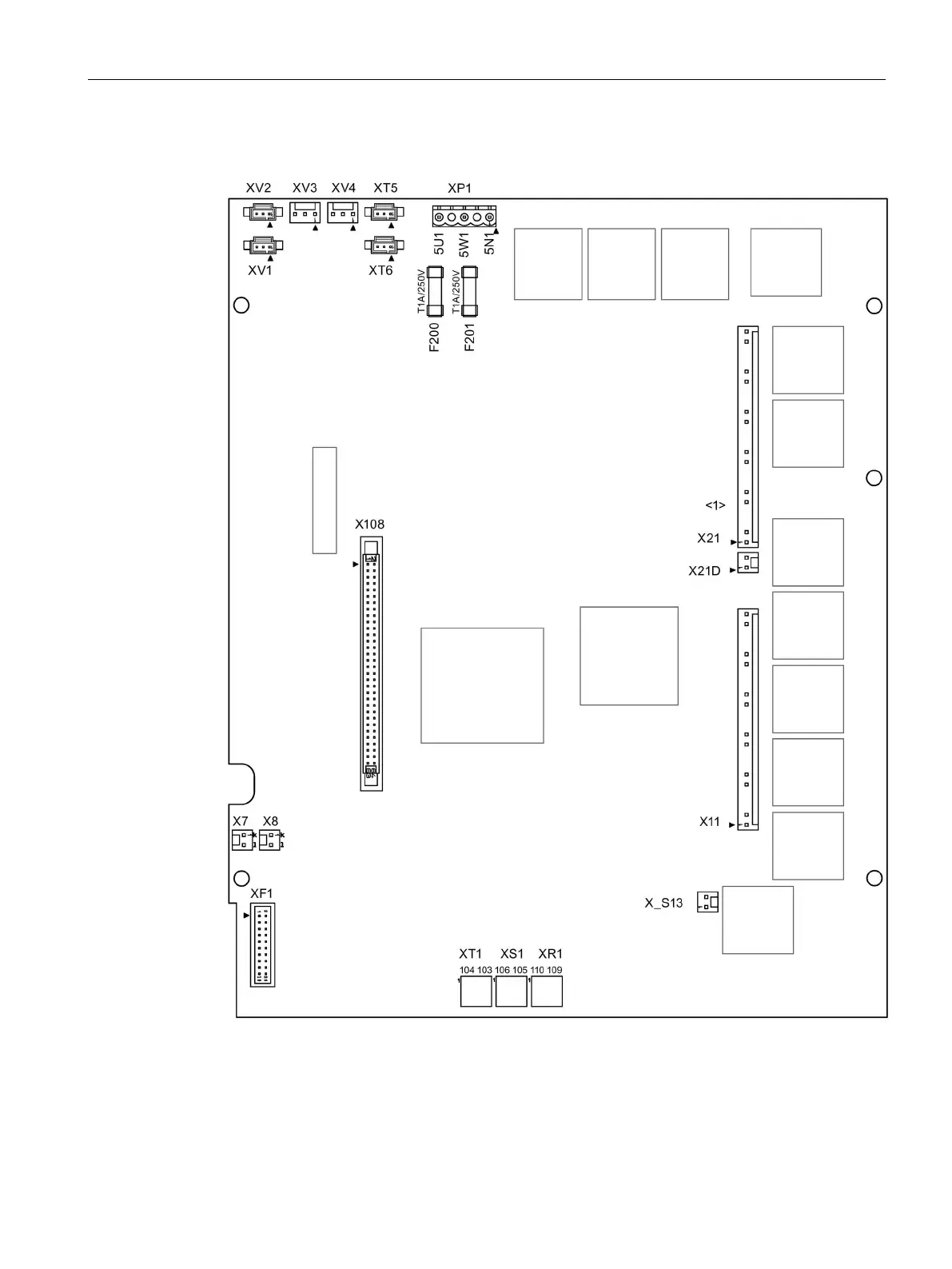

Figure 6-49 Terminal/connector arrangement on the "Power Interface for 690 - 950 V devices with
AC electronic power supply"
