Additional system components
7.2 SMC10 Sensor Module Cabinet-Mounted
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
205

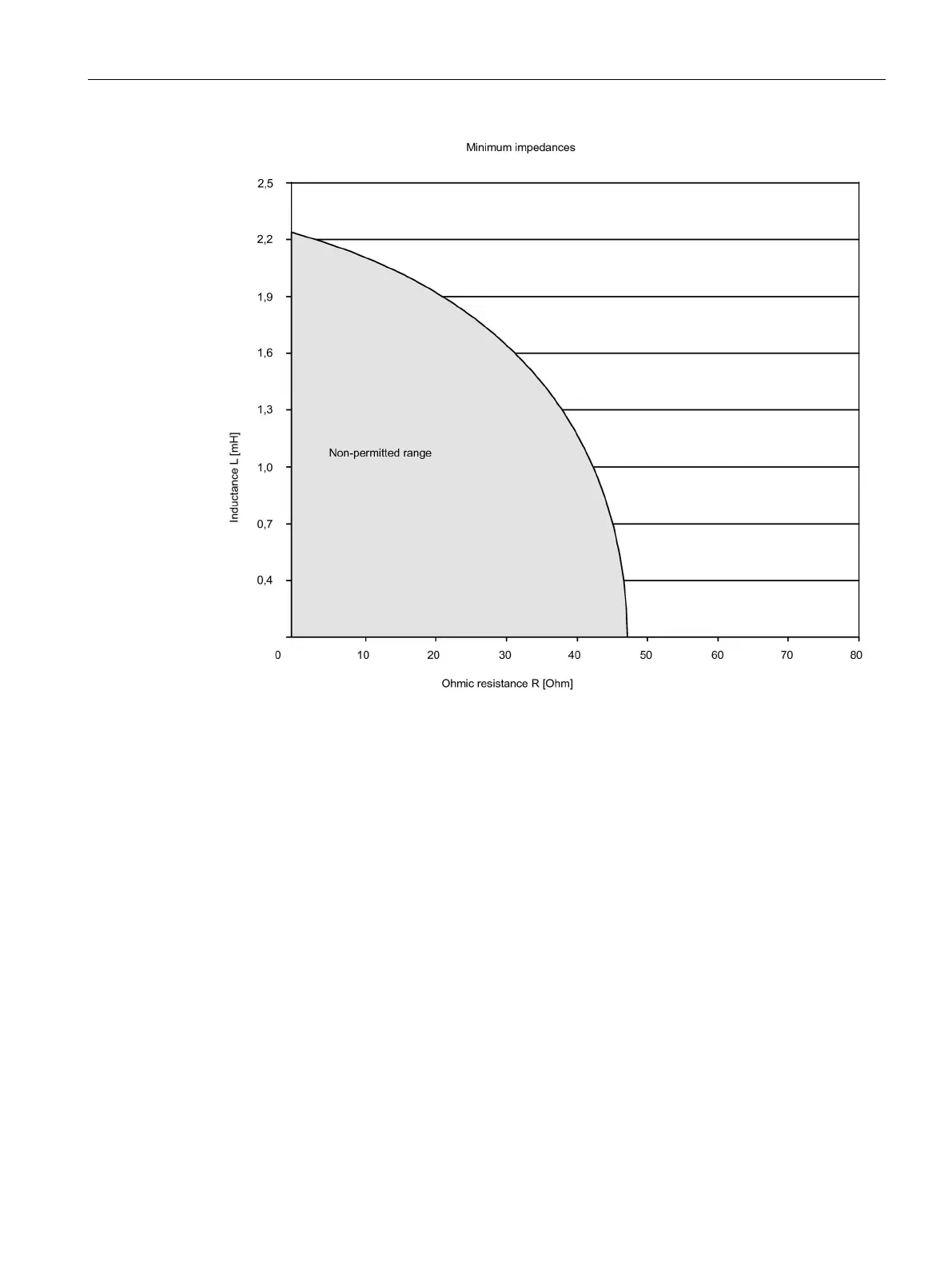

Figure 7-6 Rotor impedances that can be connected with excitation frequency f = 5000 Hz
To check as shown in the previous figure, the impedances Z
rs
or Z
ro
(impedance between R1
and R2 with short-circuited or open outputs) from the encoder manufacturer's data sheet
must be used.
