Additional system components
7.3 Sensor Module Cabinet-Mounted SMC30
SINAMICS DCM DC Converter
222 Operating Instructions, 12/2018, A5E34763375A

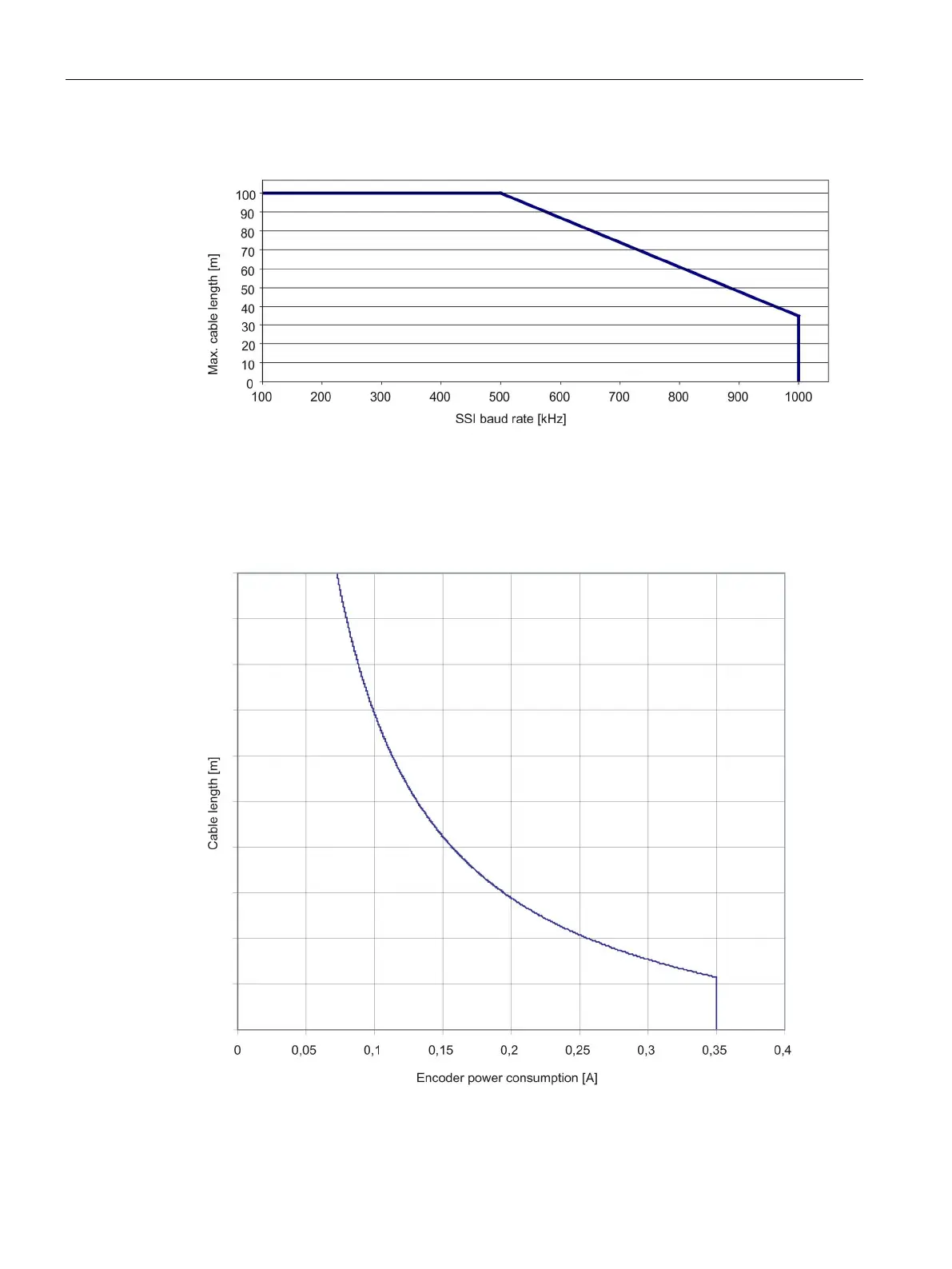

Figure 7-14 Maximum cable lengths depending on the SSI baud rate for SSI encoders
Encoders with 5 V supply connected to X521/X531
For encoders with a 5 V supply at X521/X531, the cable length depends on the encoder
current (for 0.5 mm
2
cable cross-sections):
Figure 7-15 Max. cable length as a function of the encoder current drawn
