Additional system components
7.4 Terminal Module TM15
SINAMICS DCM DC Converter
232 Operating Instructions, 12/2018, A5E34763375A

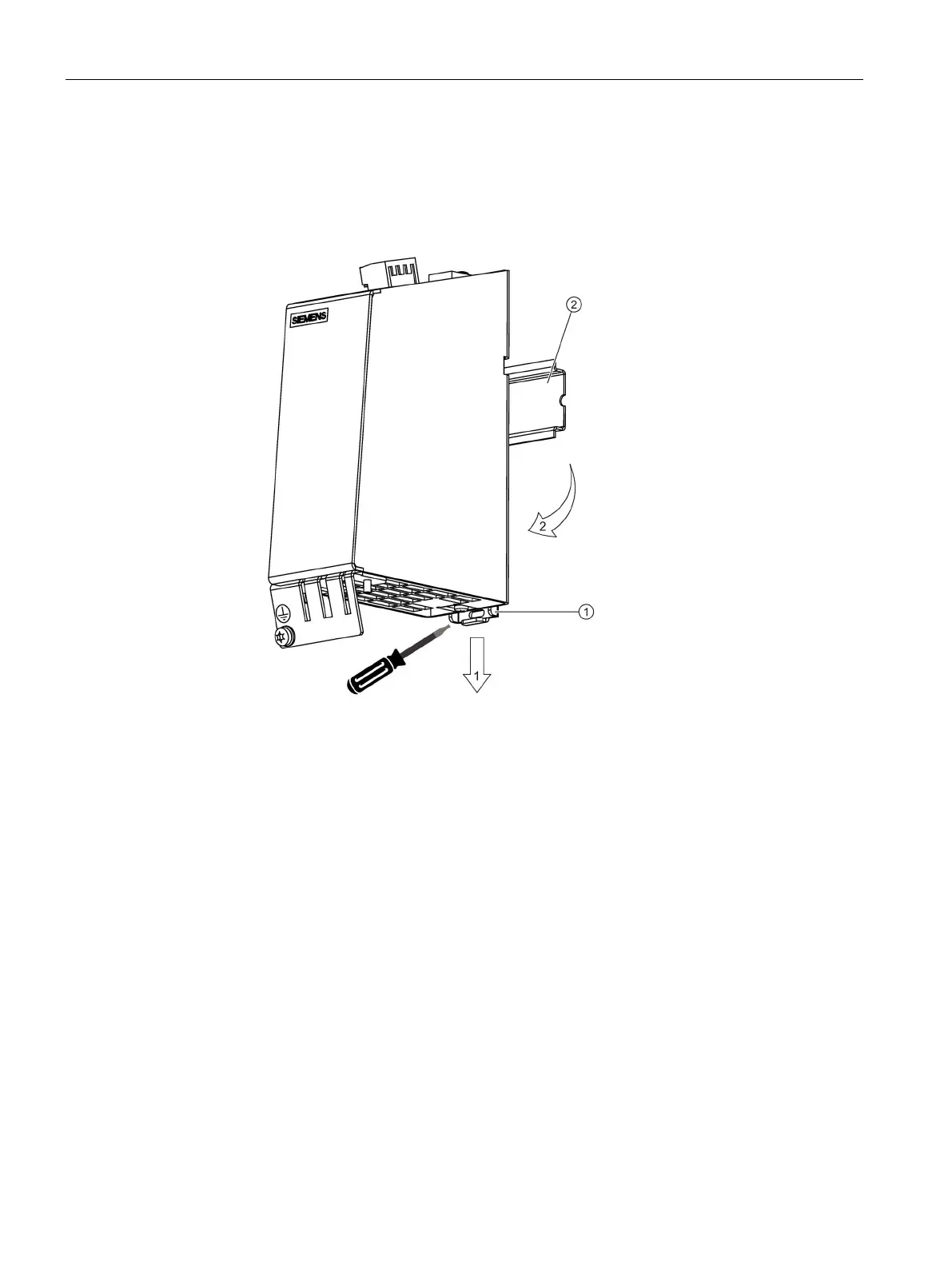

1. First shift the mounting slide downwards at the lug to release the interlocking with the
mounting rail.
2. Swivel the component to the front and withdraw it upwards from the DIN rail.
Figure 7-21 Removing from a mounting rail
