Additional system components
7.5 Terminal Module TM31
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
241
-CLiQ cable length is 100 m.
X524 electronic power supply

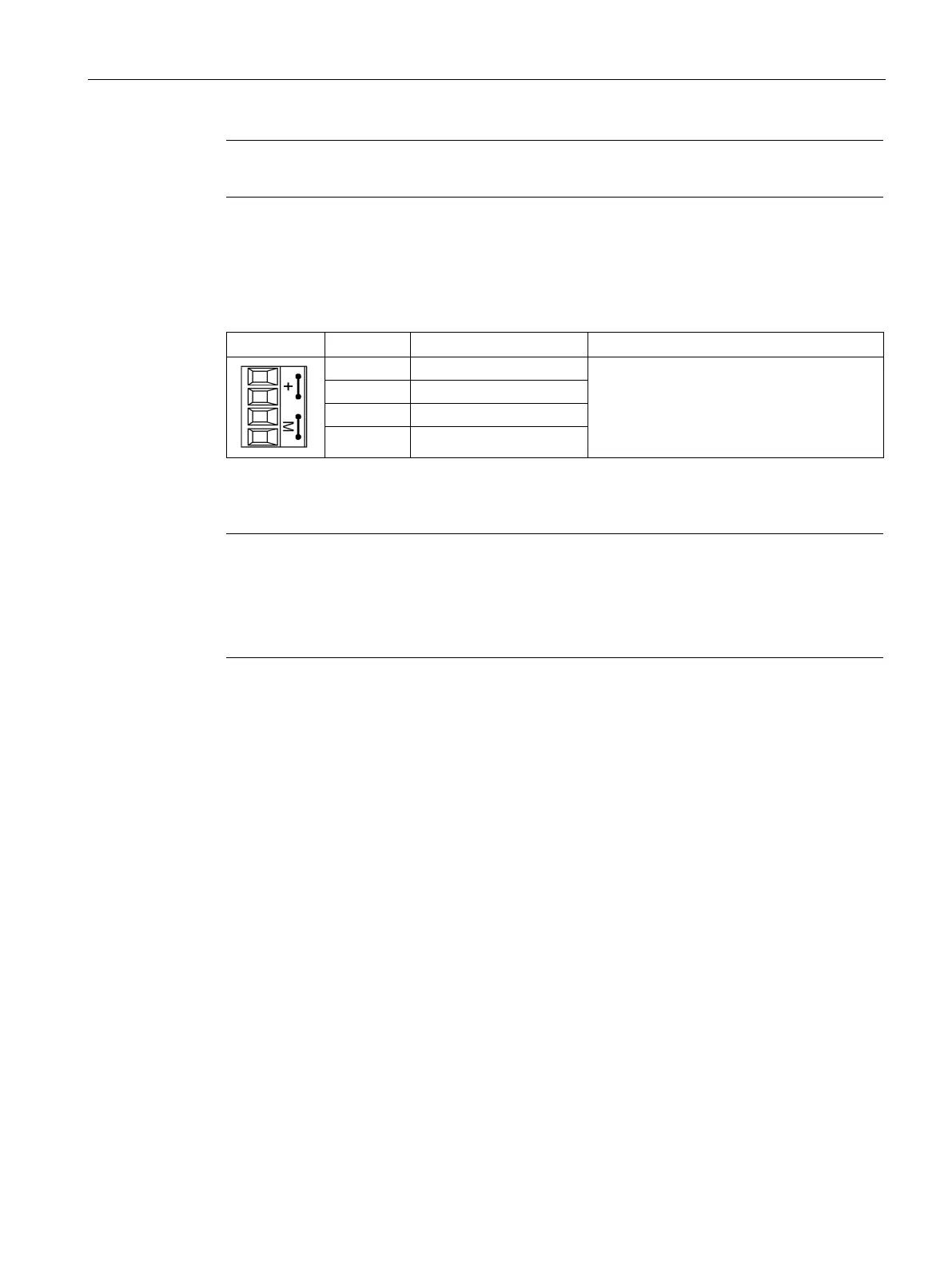

Table 7- 33 Terminals for the X524 electronic power supply
+ Electronic power supply Voltage: 24 V DC (20.4 - 28.8 V)
Power consumption: max. 1.7 A
1)
Max. current via jumper in connector:
20 A (15 A according to UL/CSA)
M Electronics ground
1)
Including the current consumption for the digital outputs and for supplying the sensor
The maximum cable length that can be connected is 30 m.
"+" or "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
The current consumption increases by the value for the DRIVE
-CLiQ node and digital
