Commissioning
8.7 Commissioning optional additional modules
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
327
● In the topology view, check at which interface of the Control Unit input/output components
should be connected, and connect them there.
[0] = X100, [1] = X101.

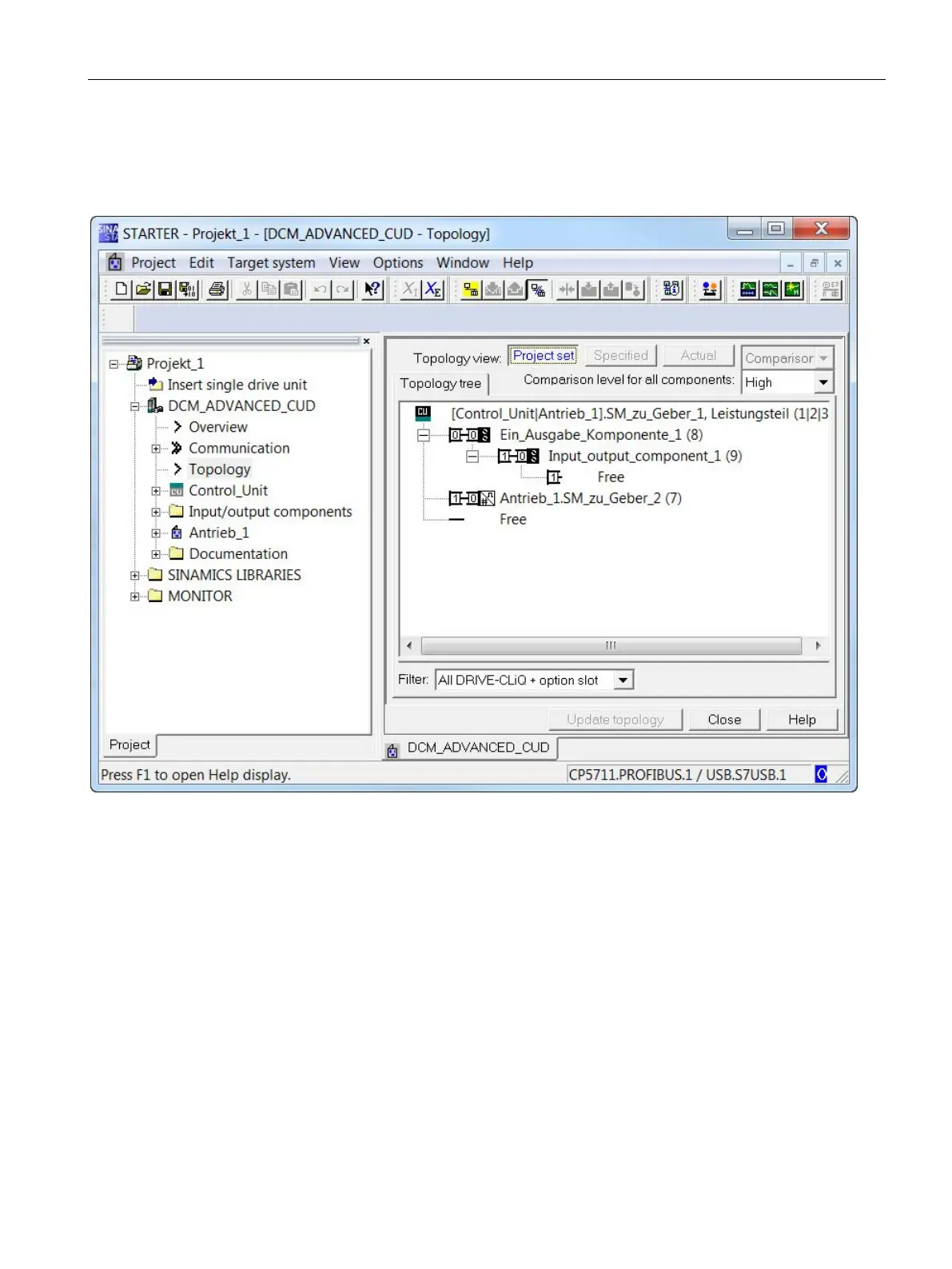

Figure 8-38 Topology
● Re-connect to the target device.
● Load the project into the drive with "Load to target device".
● Persistently save with RAM→ROM.
● The LED on the Terminal Module now lights up green and you can access the
parameters of the additional DOs.
