8.7 Commissioning optional additional modules
SINAMICS DCM DC Converter
332 Operating Instructions, 12/2018, A5E34763375A

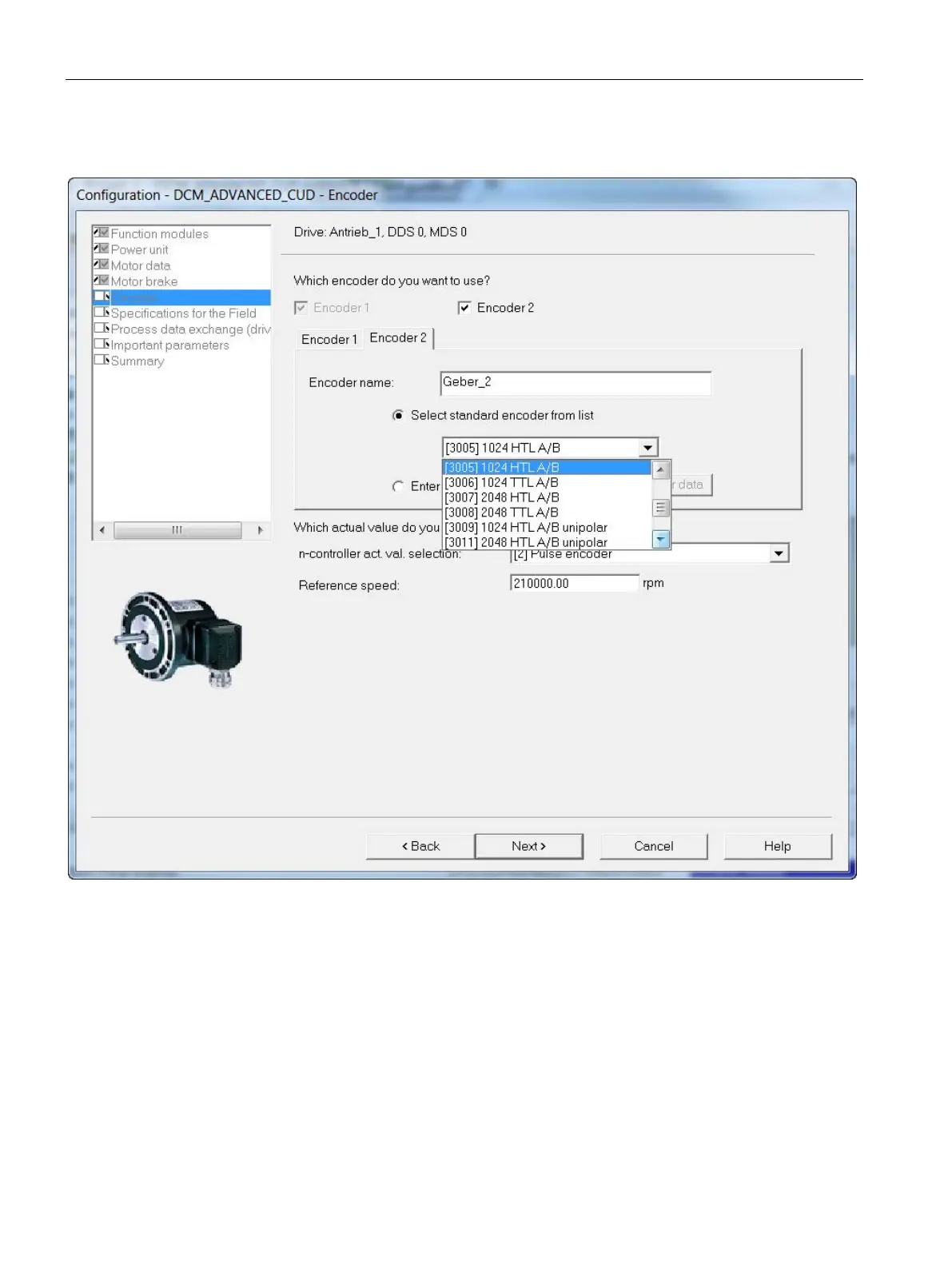

Figure 8-42 Selecting the pulse encoder
● To enter special encoder configurations, click the
radio button followed by the
button - and then enter the encoder data.
● If the encoder connected at the SMC10 or SMC30 is also used as actual value for the
closed-loop speed control, then under
n-controller act. val. selection
, select entry "[5]
DRIVE-CLiQ encoder".
● Run through the wizard until the end and load the expanded project into the drive.
