Descriptions of functions
10.3 Communication according to PROFIdrive
SINAMICS DCM DC Converter
452 Operating Instructions, 12/2018, A5E34763375A
10.3.4.5
Example 2: Write parameters (multi-parameter request)
Requirements
● The PROFIdrive controller has been commissioned and is fully operational.
● PROFIdrive communication between the controller and the device is operational.
● The controller can read and write data sets in conformance with PROFIdrive DPV1.
Task description
Jog 1 and 2 are to be set up via the input terminals of the CUD. A parameter request is to be
used to write the corresponding parameters as follows:
•
BI: p1055 = r53010.0
Jog bit 0
•
BI: p1056 = r53010.6
Jog bit 1
•
p50436[0] = 5%
Jog 1 speed setpoint
•
p50436[1] = 10%
Jog 2 speed setpoint
The request is to be handled using a request and response data block.

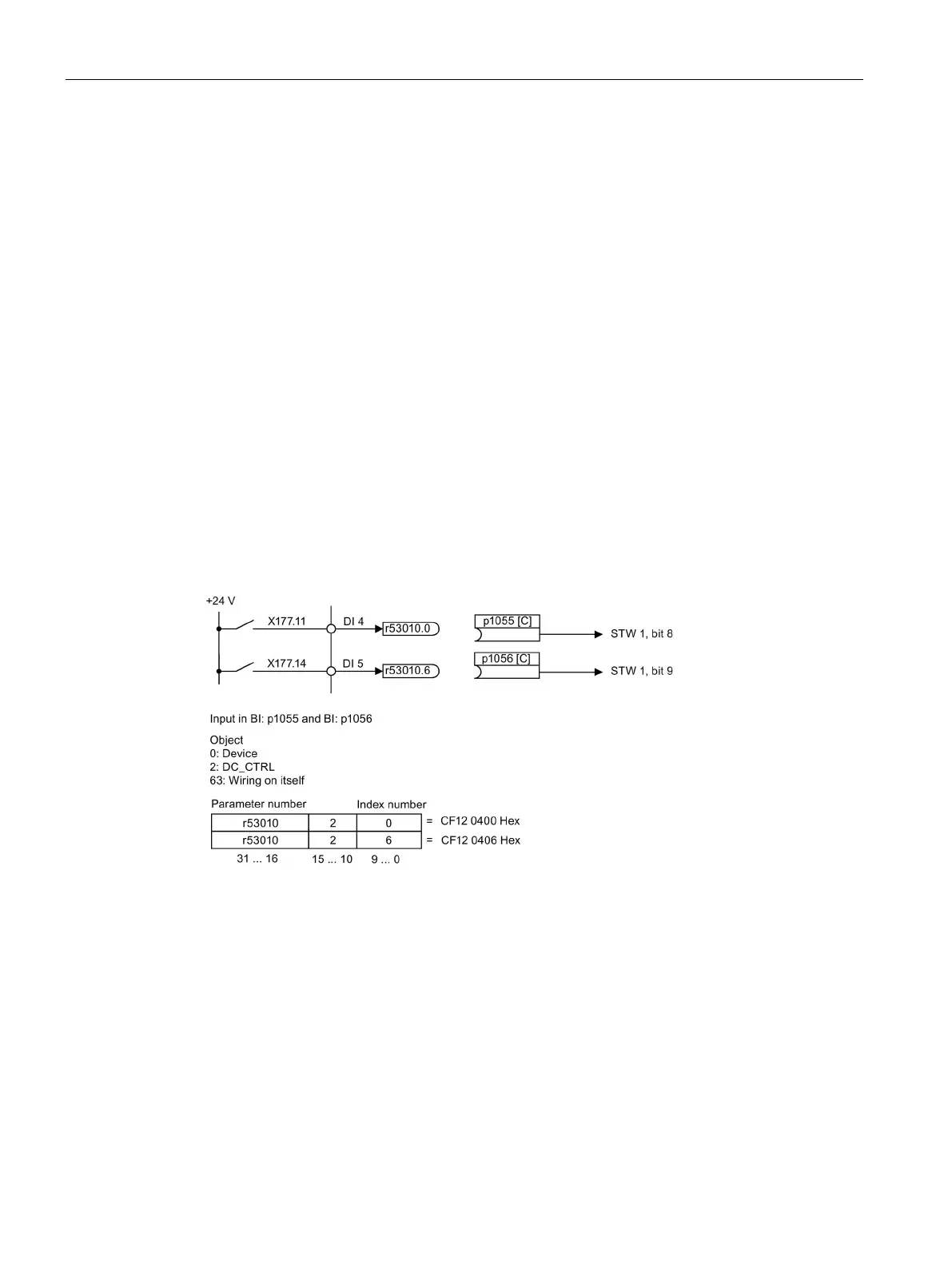

Figure 10-10 Task description for multi-parameter request (example)
Basic procedure
1. Create a request to write the parameters.
2. Invoke the request.
3. Evaluate the response.
