10.4 Communication via PROFIBUS DP
SINAMICS DCM DC Converter
476 Operating Instructions, 12/2018, A5E34763375A
8. The "Direct data exchange – Overview" tab shows you the configured direct data
exchange relationships which correspond to the current status of the configuration in
HW Config.

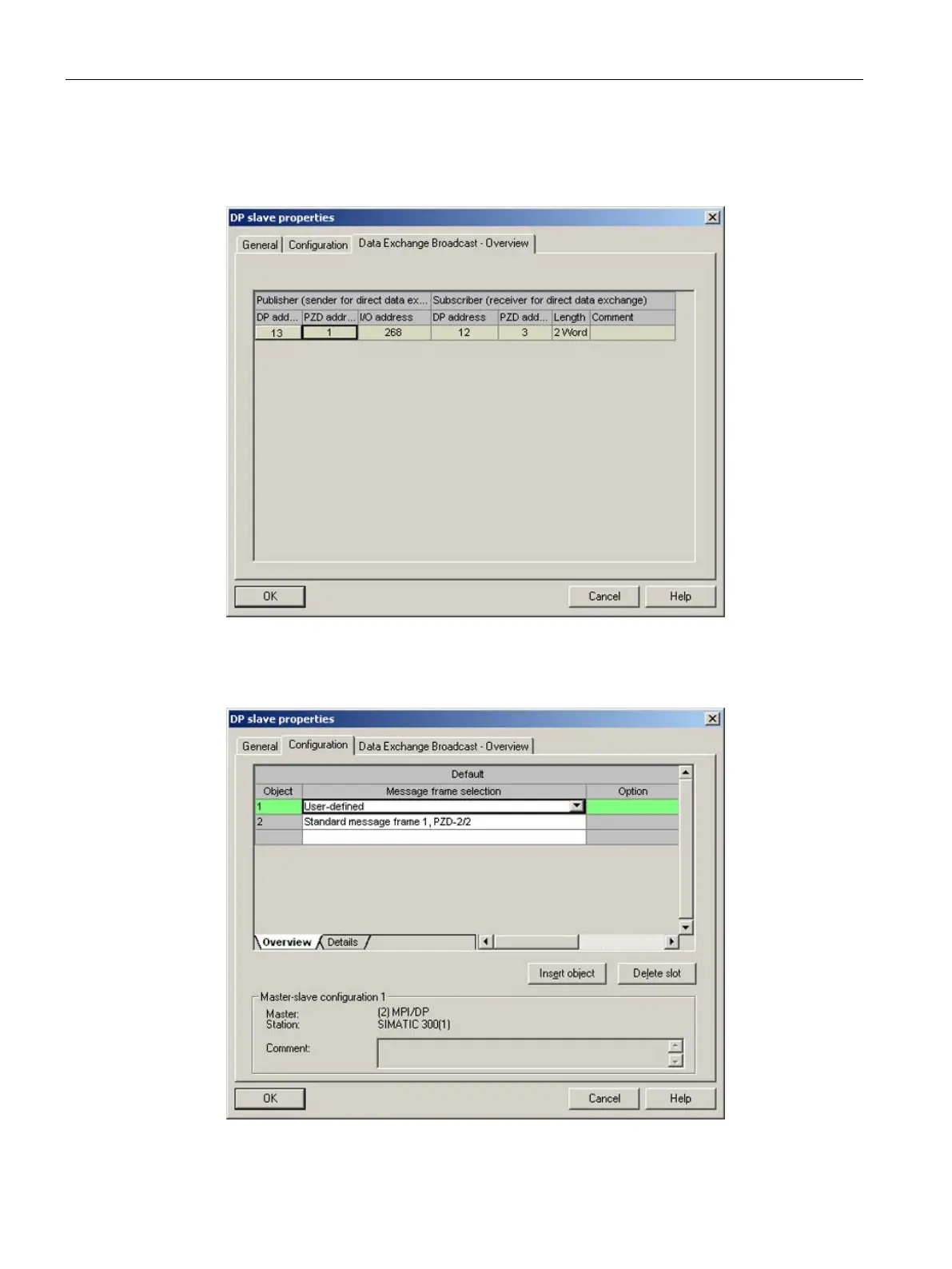

Figure 10-24 Direct data exchange – Overview
9. When the direct data exchange link has been created, the standard telegram for the drive
object is replaced with the "User-defined" telegram in the configuration overview.
Figure 10-25 Telegram assignment for direct data exchange
