Configuring the startup trace
1. In STARTER, click the symbol (device trace-function generator).
The "Trace" parameterizing screen form is then displayed.

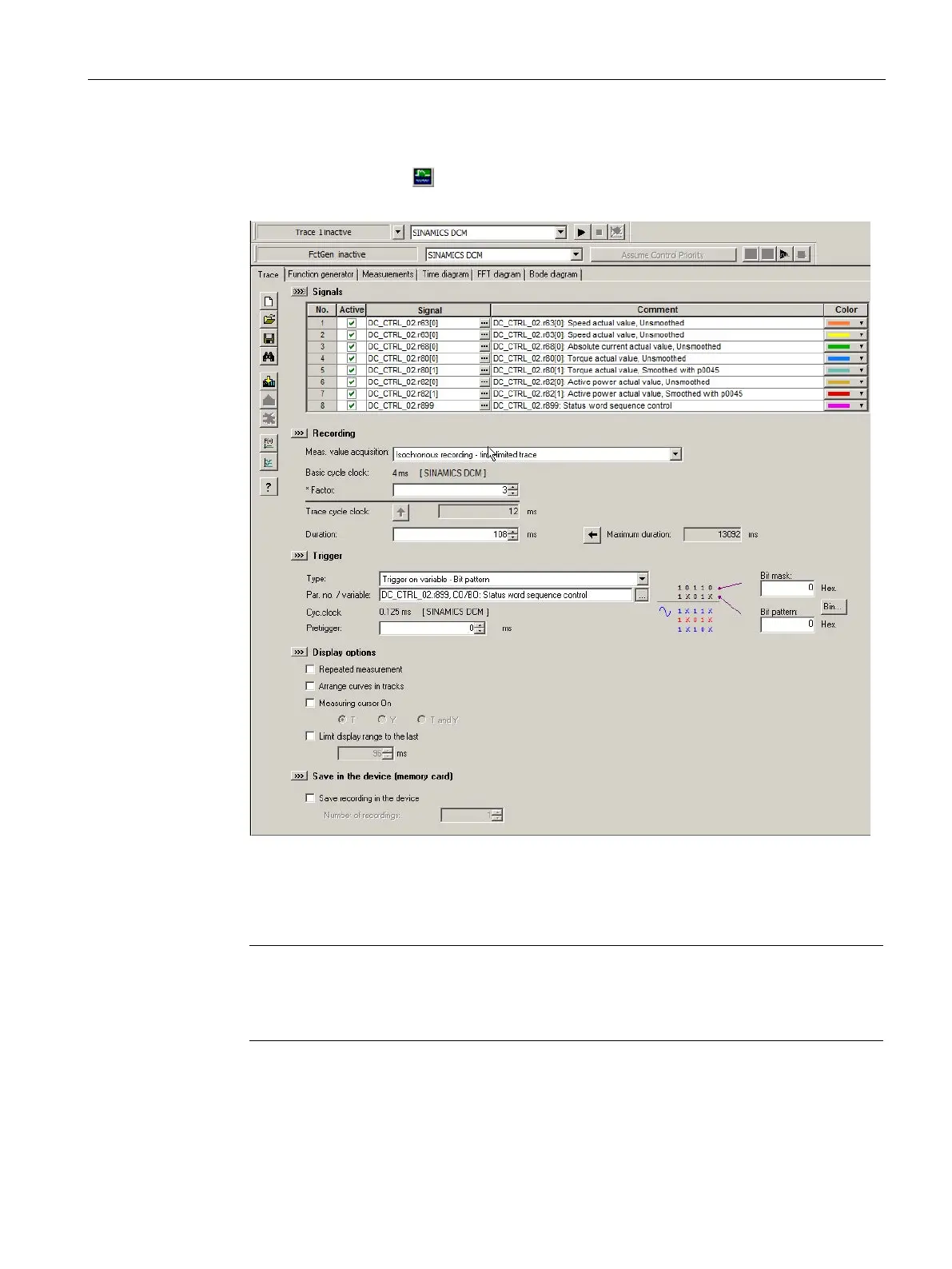

Figure 10-97 Startup trace in STARTER
2. Activate the "Save recording in the device" checkbox.
3. Enter a number ≥ 1 in the "Number of recordings" field.
nformation on how to parameterize and operate the trace function is available in
the STARTER online help in Chapter
"Trace, measuring functions and automatic
".
4. Make the required trace settings and save the settings.
