Transportation, unpacking, installation
5.2 Installation
SINAMICS DCM DC Converter
90 Operating Instructions, 12/2018, A5E34763375A
Mount the CUD and push it into the connectors for the left-hand CUD.
Secure the CUD using four screws (screw and washer assembly, M3×6), tightening torque 1 Nm

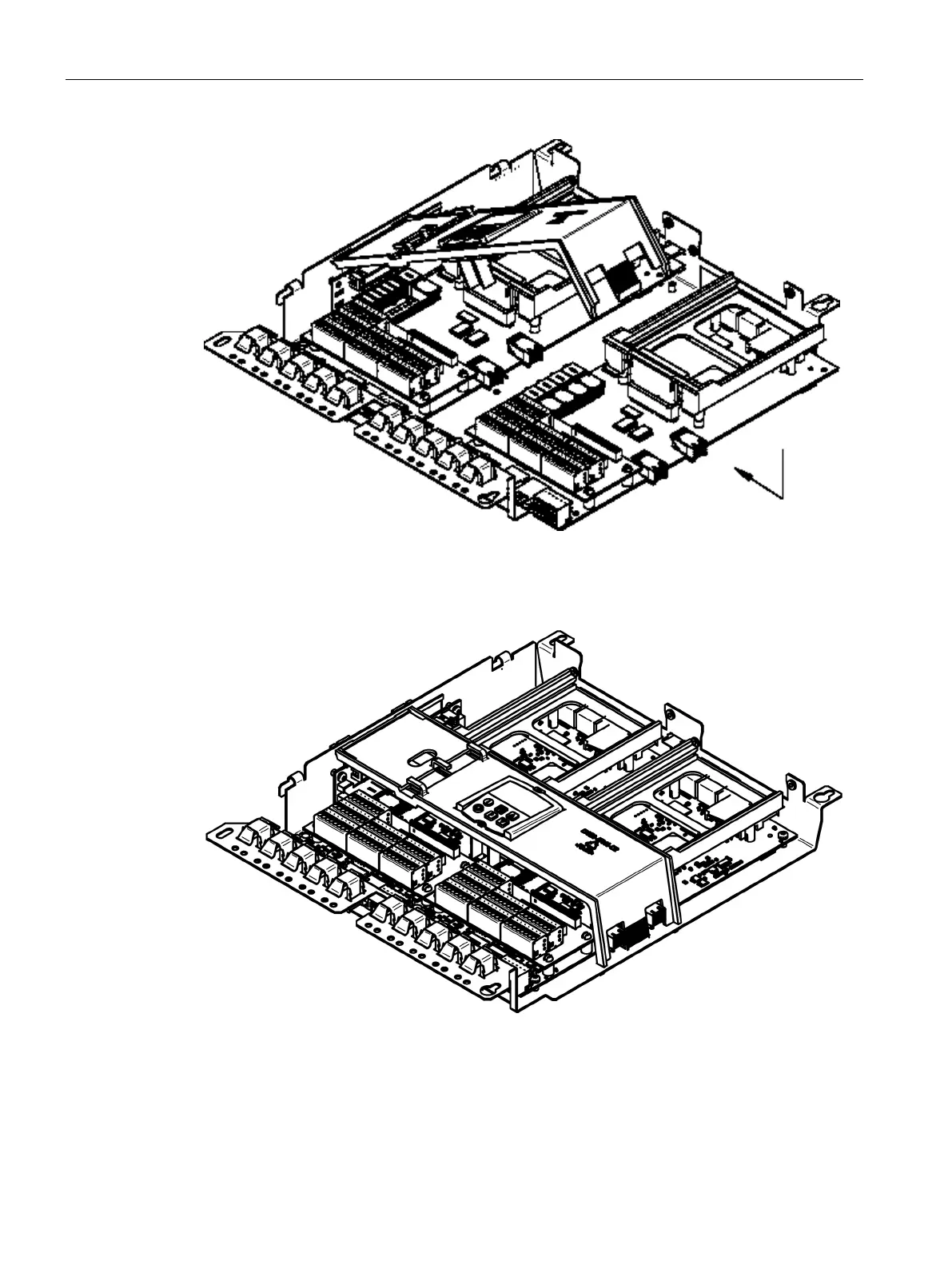

Figure 5-13 Installing a second CUD (2)
4. Lock the BOP support again.
CAUTION: Do not clamp the BOP cable
Figure 5-14 Installing a second CUD (3)
