6 Setup
6.1 Connect X300 Gateway

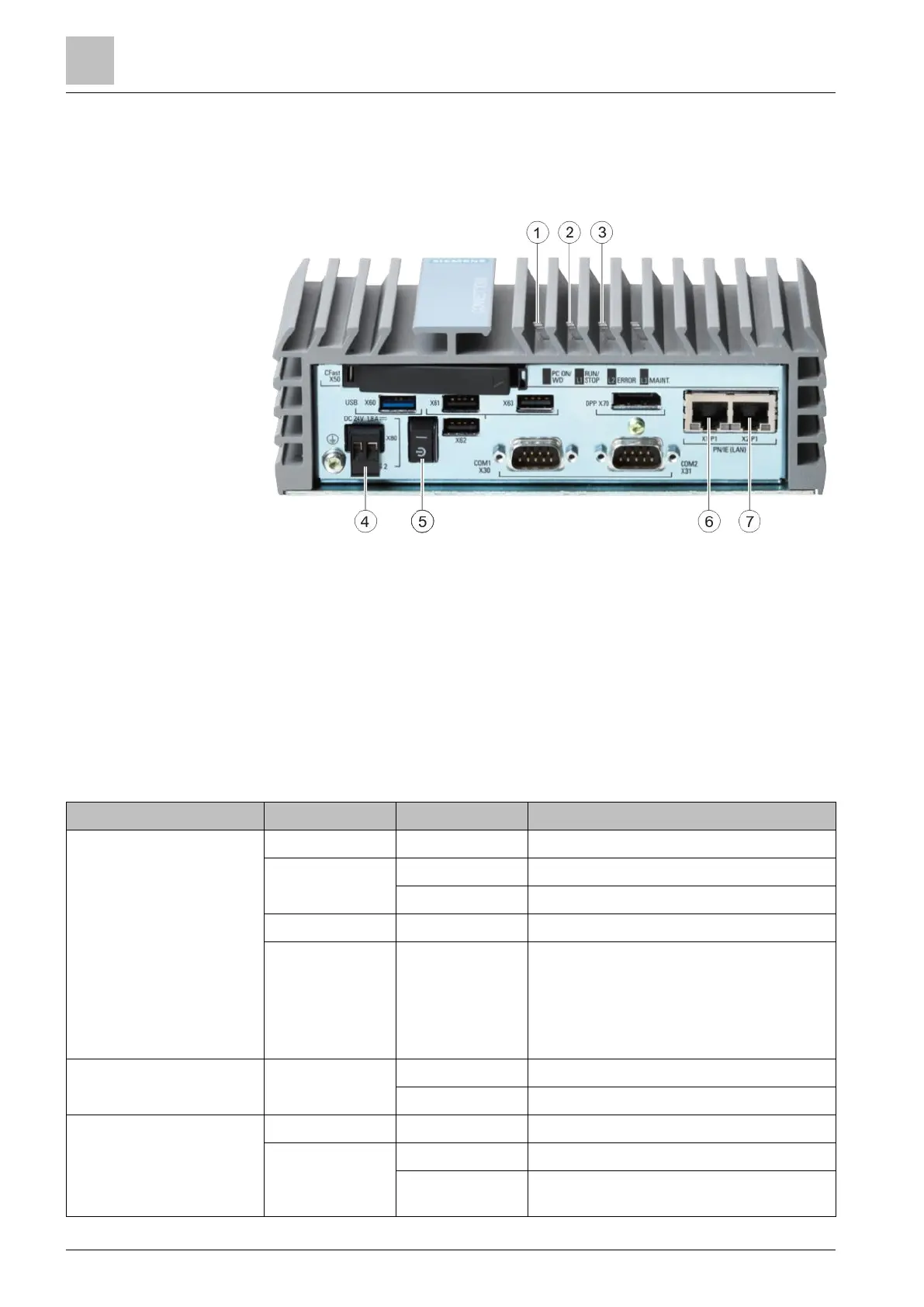

1
Operation LED (WD)
2
Operation LED (L1)
3
Internet connection LED (L2)
4
DC 24 V power supply
5
On/Off switch
6
LAN Ethernet port (X1P1) for fire control panel and initial commissioning
7
WAN Ethernet port (X2P1) for Internet
Status indication LEDs
LED
LED color
LED state
Meaning
WD
Off
Off
Device off
Green
Flashing
BIOS starting
Steady on
BIOS ready
Orange
Steady on
Idle state
Red
Flashing
Watchdog fault
1. Switch off
2. Wait 1 minute
3. Switch on
L1
Green
Flashing
Software applications starting
Steady on
Software applications ready
L2
Off
Off
No Internet or network connection
Orange
Flashing
Communication with the cloud
Steady on
IP connection active, connection problems
with the cloud
