Page 126 HydroRanger 200 – INSTRUCTION MANUAL 7ML19985FC03
mmmmm
Parameters
Entering a Level Breakpoint
1. Go to Parameter P054.
2. For each index enter a breakpoint in measurement units.
3. Ensure that each breakpoint corresponds to the same index for P055.
P055 Volume Breakpoints and Characterization
(Universal Volume Calculation) [6 relay model]
Each segment defined by the level breakpoints (P055) requires a volume so that the
HydroRanger 200 can make the level-to-volume calculations.

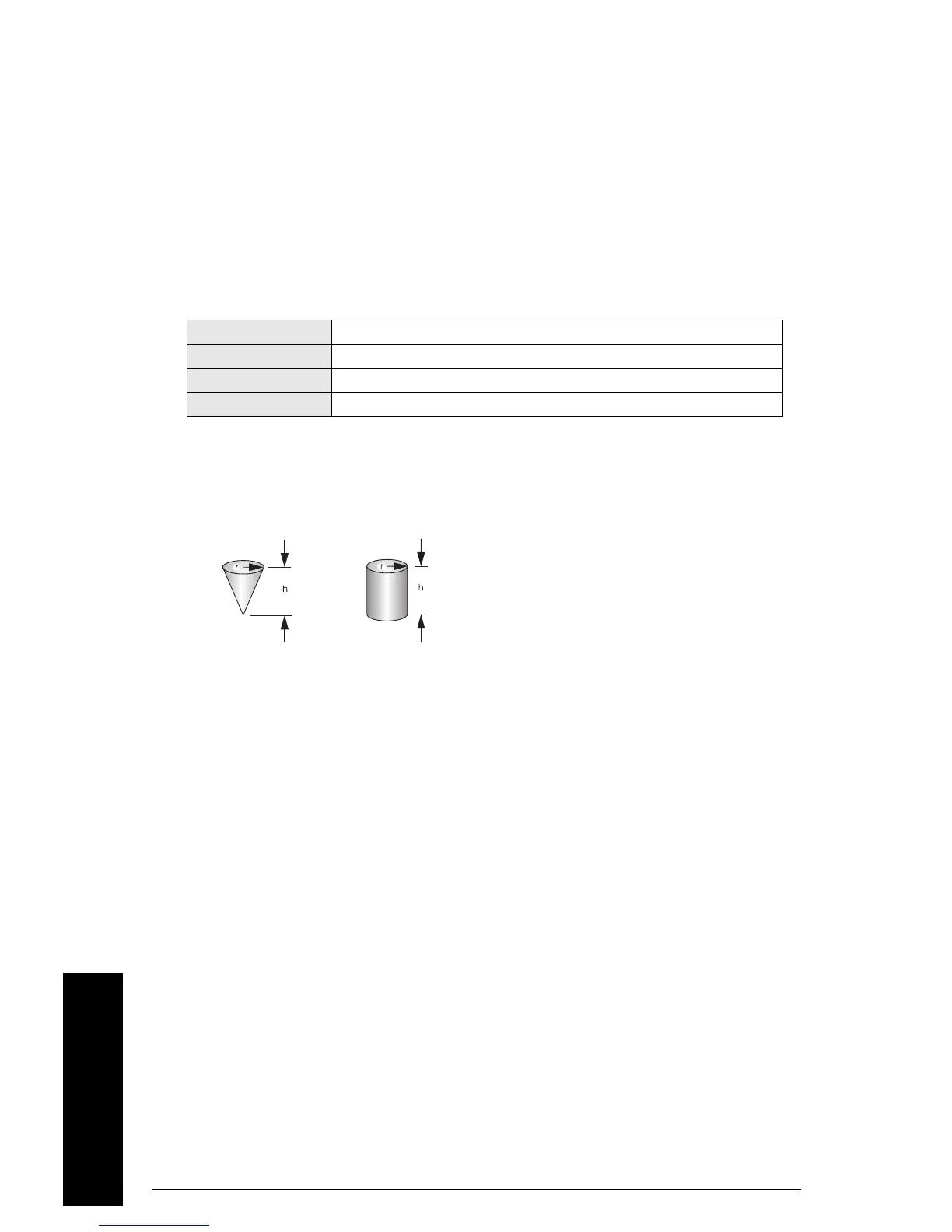

Typical volume calculations
Entering a Volume Breakpoint
1. Go to Parameter P055.
2. For each index enter a volume.
3. Ensure that each volume corresponds to the same index for P054.
For more on
Volume Characterization
, go to page 50.
Display and Reading (P060 to P062)
These parameters are used to:
• Change the number of decimal places displayed
• Convert the Reading to alternate units
• Reference measurements to other than Empty (P006) or Span (P007)
Primary Index Level
Secondary Index Breakpoint
Values Range: 0.0 to 99999
Related • P054 Breakpoints Levels (Universal Volume Calculation)
Cone Cylinder
V = (1/3)πr
2
hV = πr
2
h
