7ML19985FC03 HydroRanger 200 – INSTRUCTION MANUAL Page 57
mmmmm
Pump Control
Set Relays to ALTERNATE DUTY ASSIST
Set the ON Setpoints
Set the OFF Setpoints

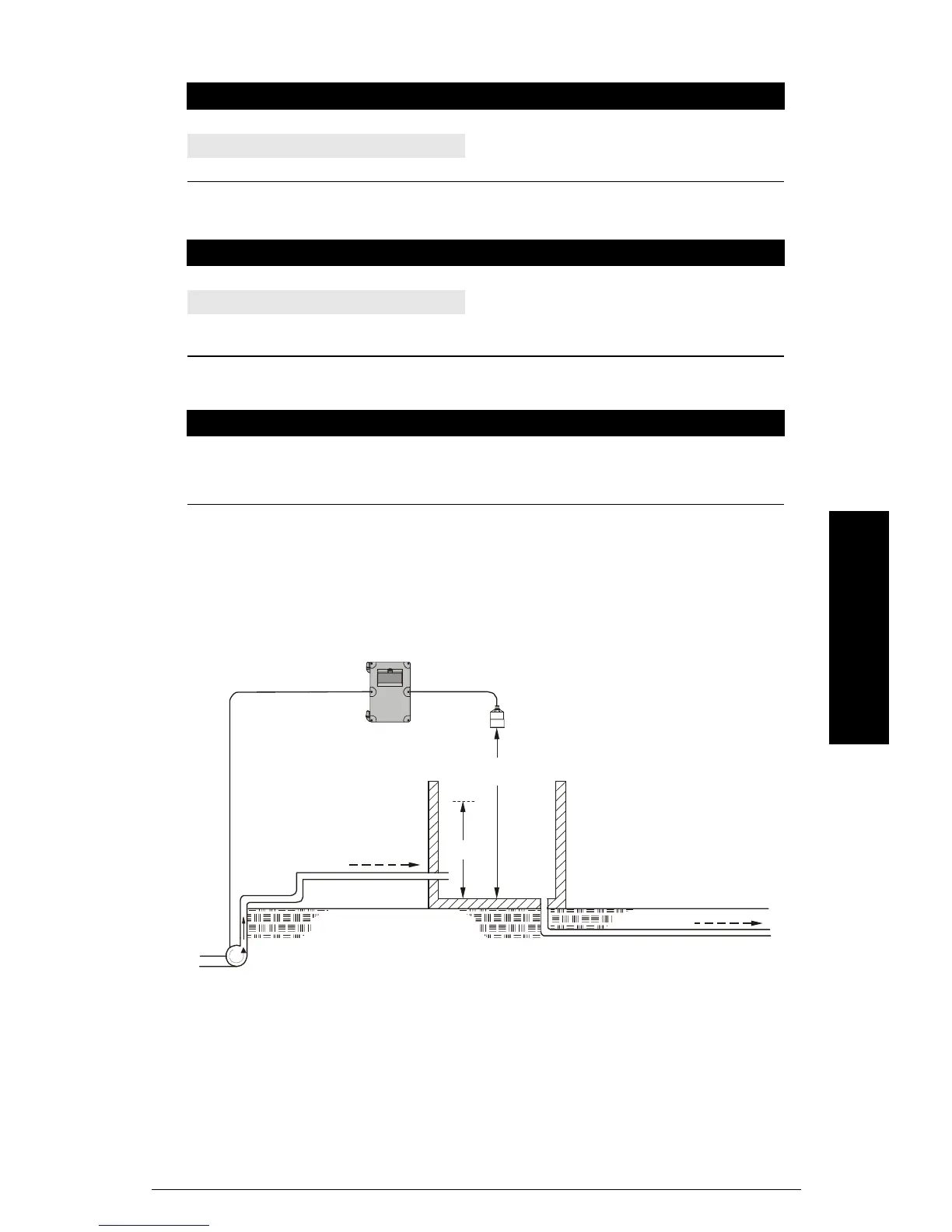

Setting a Pump Up (Reservoir) Group
Sets a group of three pumps to pump up a reservoir.
Parameter Index Value Description
P111 1 52
Sets the pump relays (index 1, 2, and 3) to
ALTERNATE DUTY ASSIST.
P111 2 52
P111 3 52
Parameter Index Value Description
P112 1 1.0m Sets the three setpoints for the pump relays.
The first cycle will use these setpoints.
Subsequent cycles rotate the setpoints
among the pumps.
P112 2 1.1m
P112 3 1.2m
Parameter Index Value Description
P113 0 0.5m By using index 0 all six relays are set at the
same time, including any alarm relays. Use
with caution.
P006
P007
Inflow
Outflow
HydroRanger 200
