7ML19985FC03 HydroRanger 200 – INSTRUCTION MANUAL Page 73

mmmmm

Open Channel Monitoring

6 Relay Model

Setting Totalized Volume

To display the totalized volume on the LCD use the following parameters:

Applications Supported by HydroRanger 200

[6 relay model]

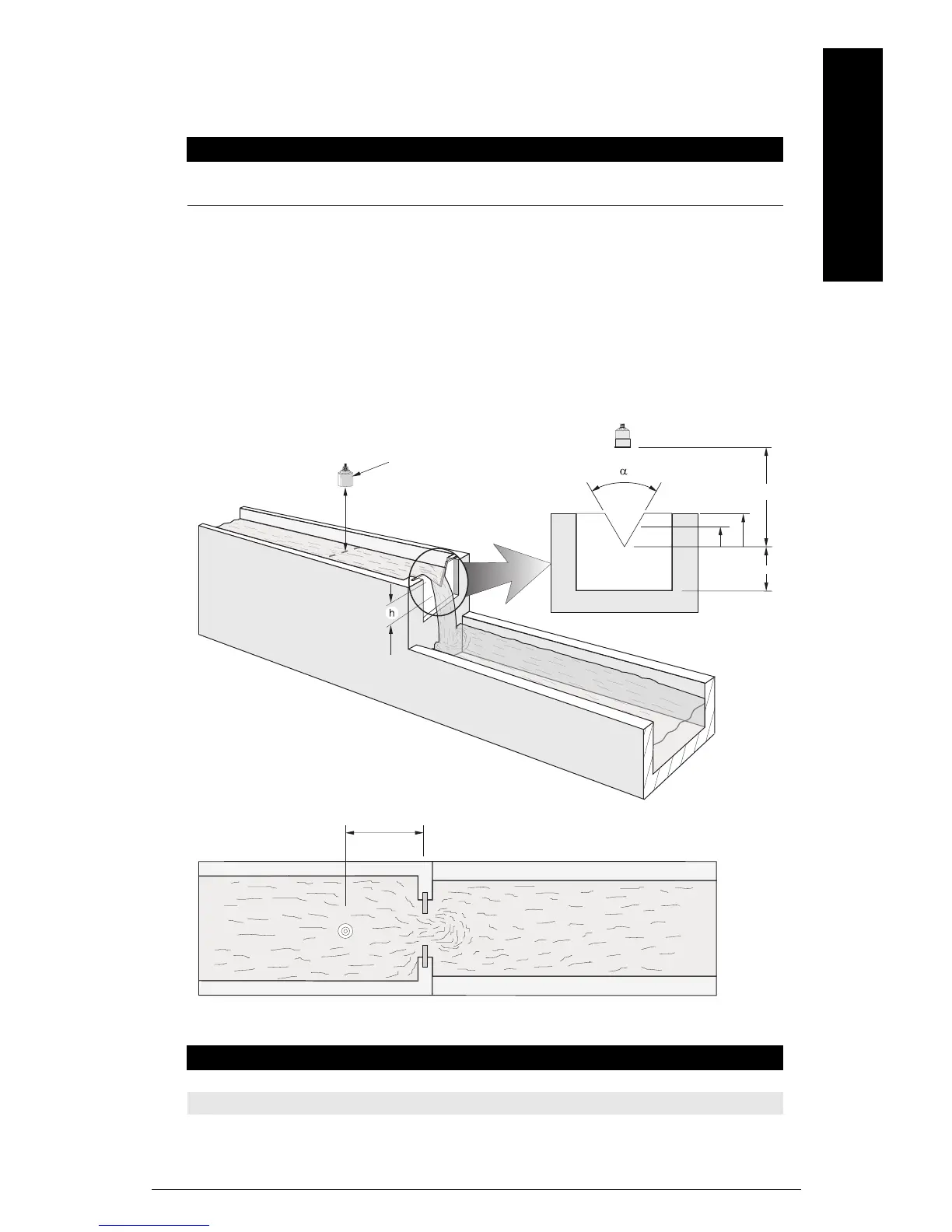

BS-3680 / ISO 1438/1 Thin plate V notch weir

Parameter Index Value Description

P737 G 2 Show the eight digit totalizer in the primary

display

Parameter Index Value

P600 G 7–ISO 1438/1 V Notch Weir

P602 1 Notch angle

(view only) 2 Discharge coefficient (Ce)

P801

P006

Transducer

4 to 5 x h

max

= P007)

Plan View

Side View

Front View

P602

notch angle

P603

P007
