Page 36 HydroRanger 200 – INSTRUCTION MANUAL 7ML19985FC03
mmmmm
Operation

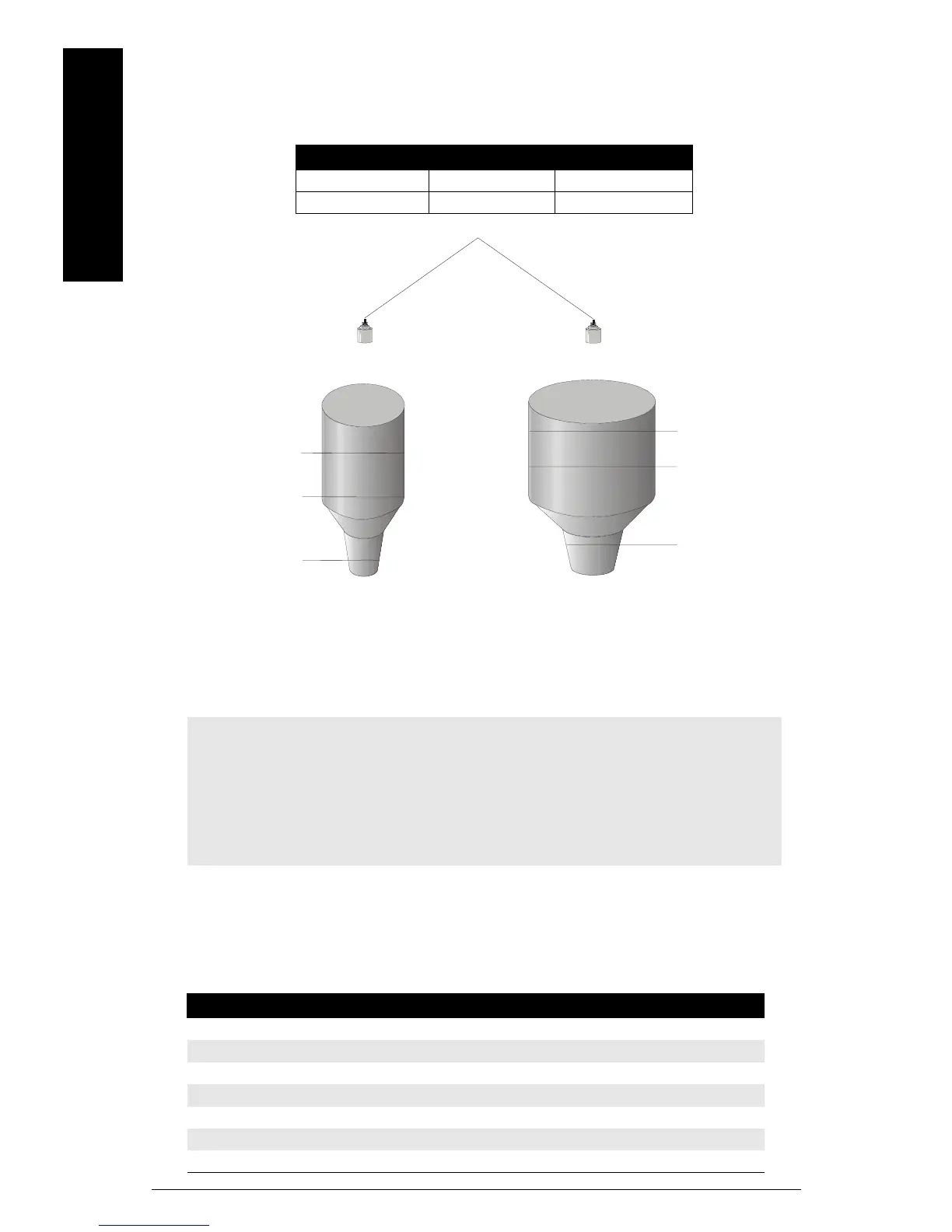

Example [6 relay model]
P054 provides up to 32 breakpoint levels used with P055 (Volume Breakpoint) for universal
volume calculation. The illustration indicates how you can set secondary indexes to
specific functions.
•
P054 [1,1] = .75m sets breakpoint 1 on transducer 1 to .75m.
• P054 [2,1] = 8m sets breakpoint 1 on transducer 2 to 2.75m.
Starting Measurement
The HydroRanger 200 startup varies between single and dual point models.
Single Point Models
The HydroRanger 200 starts in DISTANCE mode with the transducer preset for the XPS-10
and an empty distance of 5 meters. Change the following parameters to reflect your
application parameters.
A B C
P054 [1,6] = 2m P054 [1,3] = 1.5m P054 [1,1] = .75m
P054 [2,6] = 8m P054 [2,3] = 5.5m P054 [2,1] = 2.75m
Note: The number of points is an order option and is set by the factory. On a single
point model, the index for P001 is global (G). On a dual point model the index for
P001 is 1 or 2. To check the model in use, enter P001 on handheld programmer. For
a single point device, parameter P001 will not show an entry for index number on
the LCD. (See
HydroRanger 200 Display on page 34 for location of index number on
the LCD.) Parameter P001 will display an index number for a dual point model.
Parameter Index Value Description
P001 G 1 Operation = level
P002 G 1 Material = liquid
P003 G 2 Maximum Process Speed = medium
P004 G 104 Transducer = XPS-15
P005 G 1 Units = meters
P006 G 12 Empty = 12m
P007 G 10 Span = 10m
A
C
B
1
2
P054
[6 = 2m]
[3 = 1.5m]
[1 = 0.75m]
[1 = 2.75m]
[3 = 5.5m]
[6 = 8m]
A
B
C
