193/248

Building Technologies Division Basic documentation LMV36... CC1P7544en

Infrastructure & Citiies Sector 28 Parameter level 25.09.2013

28.11 Fuel-air ratio curves – settings and commissioning

Vhmins%

Bild 94/0707

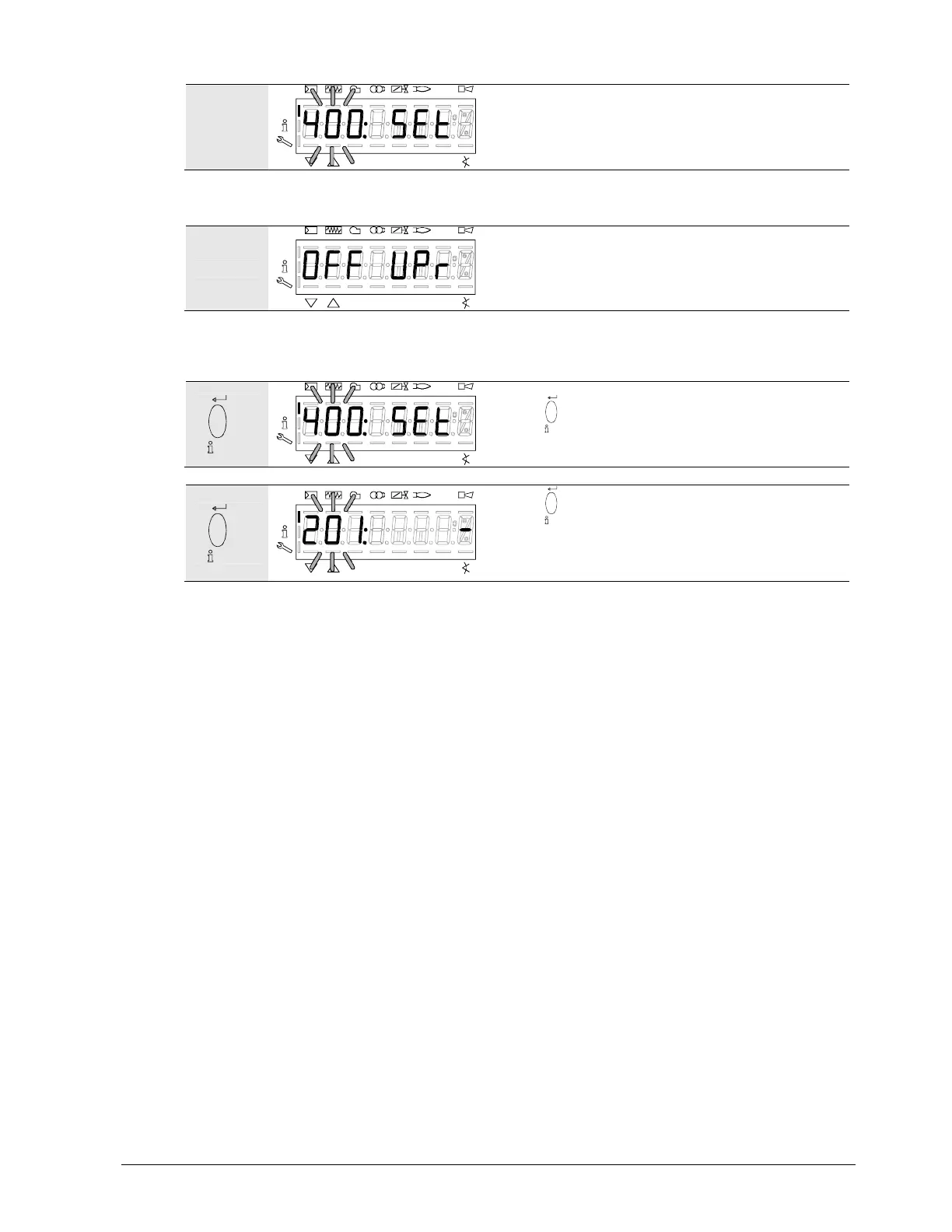

The display shows 400: flashing on the left,

SEt appears on the right.

28.11.1 Initial commissioning

mi n

Bild 95/0707

An unprogrammed unit or a unit whose operating

mode has been reset or changed displays OFF UPr0

or OFF UPr1.

For initial commissioning, change to the parameter level (refer to chapter Operation).

The settings can then be made on parameter level 400.

reset

Vhmins%

Bild 94/0707

Press

reset

to select parameter 400 for initial

commissioning and for setting fuel-air ratio control.

reset

Vhmins%

Bild 96/0707

Press

reset

to go to the settings for fuel-air ratio control

and parameter 201 for selecting the operating mode.

201: appears flashing.
