7.4.6 Output safety valve (SV) type SI X6–03 / magnetic clutch
LMV...
Bild 292e/1209
X6-03
Safety valve / magnetic clutch
Protective earth (PE)
Magnetic
clutch

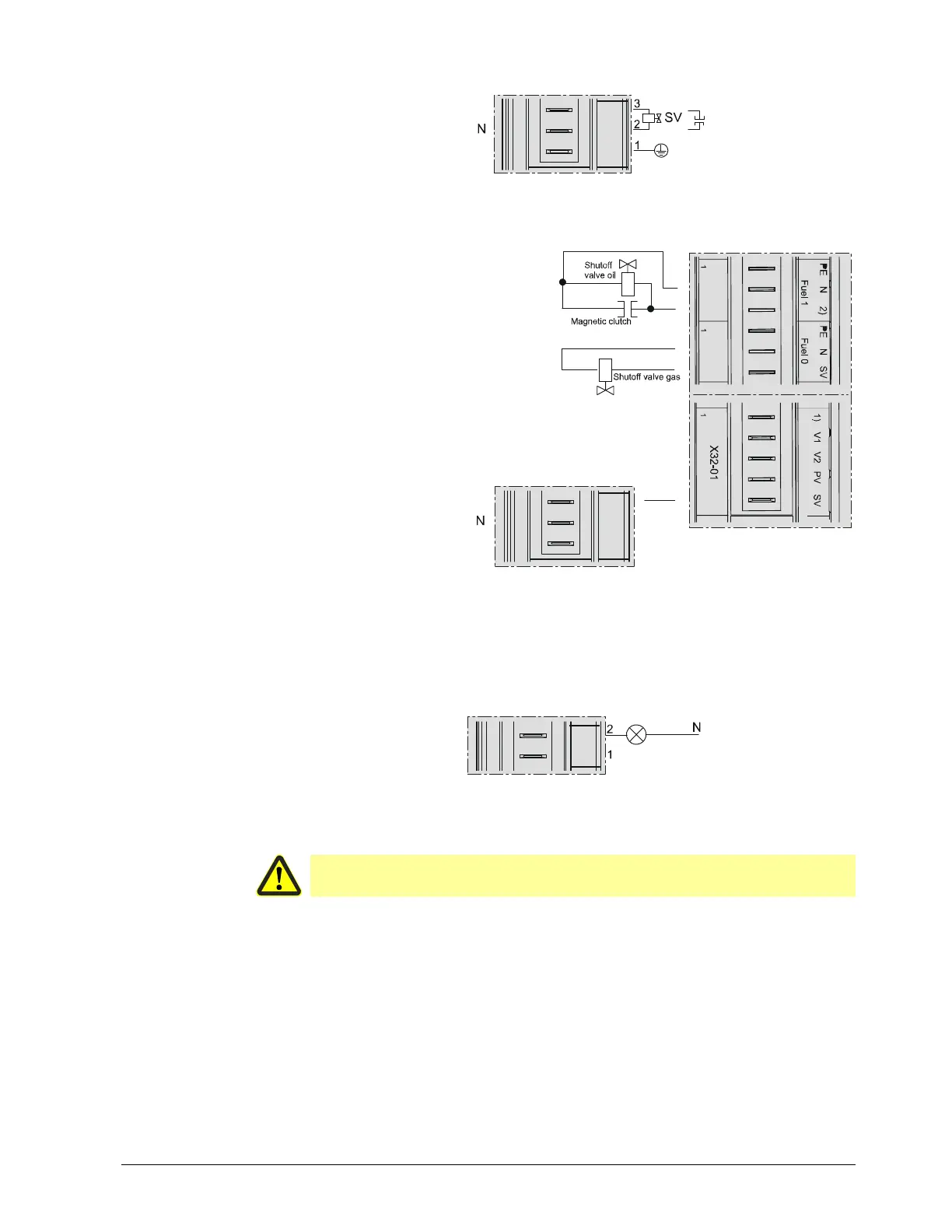

Figure 38: LMV36...: Output safety valve (SV) / magnetic clutch X6-03
LMV...
Bild 293e/1209
X6-03
Safety valve / magnetic clutch
Protective earth (PE)
AGM60...
V3
X6-02 X24-06
1
2
3
1
2
3
1
2
3
4
5
3
2
1
Figure 39: LMV36... with AGM60…: Output safety valve (SV) / magnetic clutch X6-03
Output for connection of an oil shutoff valve / oil connection valve or safety valve for
liquefied gas. The output is connected parallel to the output for the fan.
7.4.7 Output for indication of operation X8-04 pin 2
LMV...
Bild 294e/0409
X8-04
Indication of operation
Figure 40: Output for indication of operation X8-04
Output for connection of indication of operation.
Caution!
The output is connected parallel to the fuel valve (V1).
