LMV Series Technical Instructions
Document No. LV5-10
00
SCC Inc. Page 7 Section 1
Air Damper Assembly (continued)

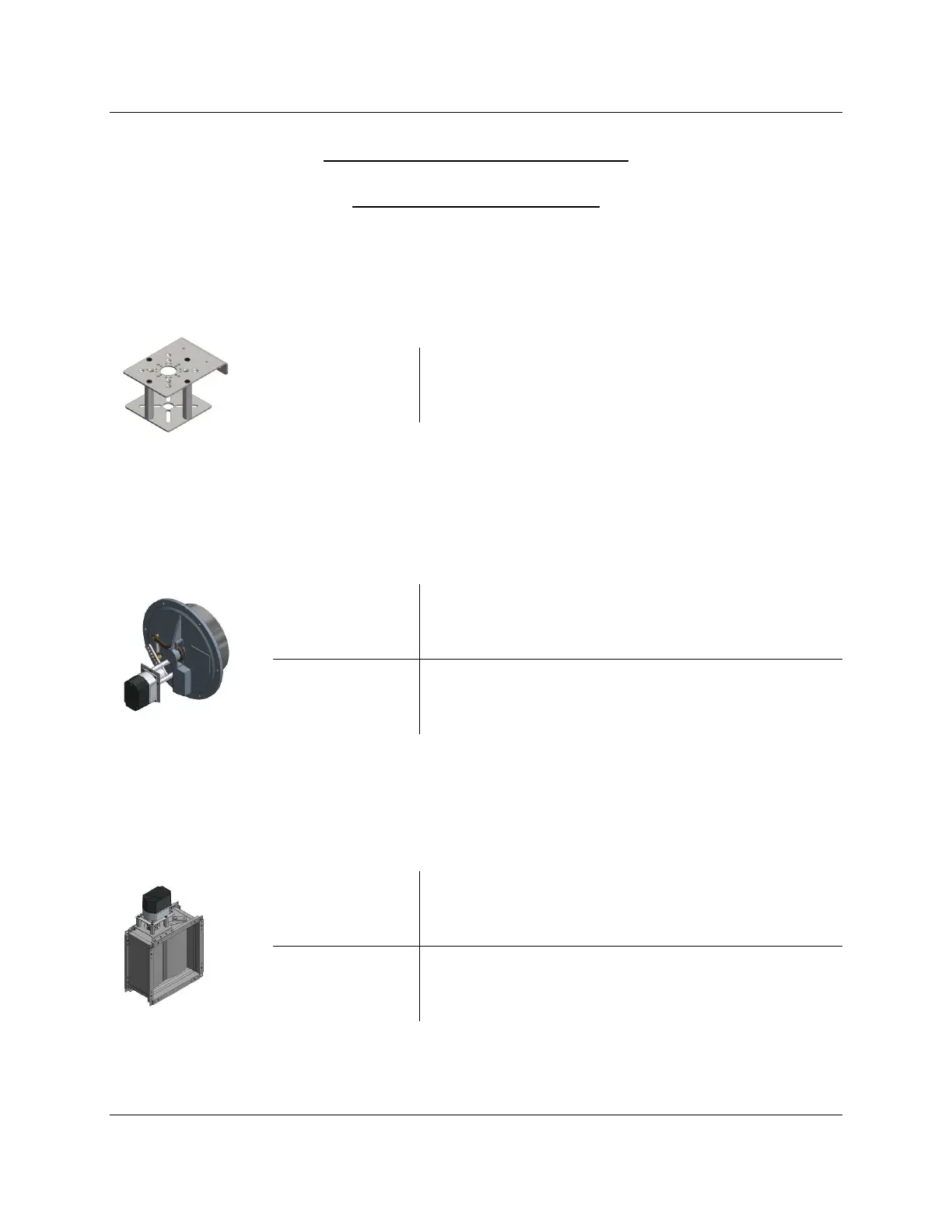

Mounting Bracket Kits - Optional
Modular bracket kits are available to assist i
n mounting any SQM… actuator to a variety of
valves or air dampers. A coupling is necessary when using a modular bracket kit. For more
information, refer to Document No. CPBK-2000.
BR-AS…
Modular bracket kits for mounting SQM… ac
tuators
to a variety of valves or dampers
When retrofitting a Cleaver Brooks boiler,
the following kits are available for the rotary air
damper. No additional couplings are needed with these retrofit kits. Refer to Document No.
CPBK-4000 for technical information or Document No. CPBK-4100 for installation instructions.
BR-48CBAIR
Bracket for mounting an SQM48… actuator to a
Cleaver Brooks rotary air damper
BR-3345CBAIR
Bracket for mounting an SQM45… actuator
to a
Cleaver Brooks rotary air damper
When using a Lucoma air damper, the f
ollowing actuator mounting kits are available. No
additional couplings are needed with these mounting kits. Refer to Document No. CPBK-3000
for technical information or Document No. CPBK-3100 for installation instructions.
BR-SQM48-LUC
Bracket for mounting an SQM48… actuator
to an
8x8 through 28x28 Lucoma air damper
BR-SQM3345-
LUC
Bracket for mounting an SQM45… actua
tor to an
8x8 through 28x28 Lucoma air damper
