Siemens LMV51.140C1 Technical Instructions

Technical Instructions LMV Series
Document No. LV5-100
0
Section 1 Page 6 SCC Inc.

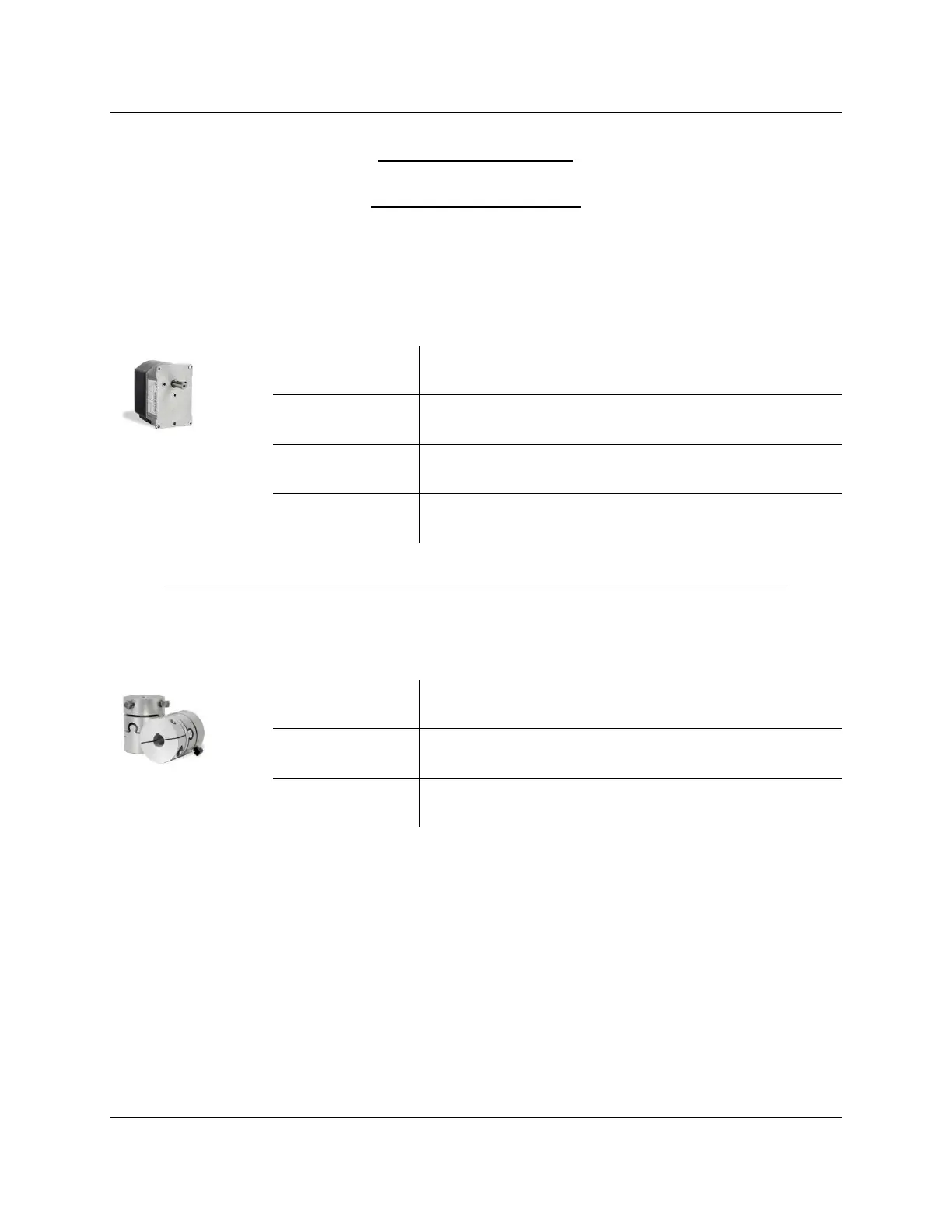

Air Damper Assembly
Actuator – Qty (1) Required
Choose one of the following actuato
rs for the air damper. For more information, refer to
Document No. N7814 (SQM4… actuators) or Document No. N7818 (SQM9… actuators). SQM9…
actuators are rated NEMA 4. Any SQM4… actuator can be made NEMA 4 by adding the correct
NEMA 4 kit. See the “Actuator Accessories” section for more information.
SQM45.295B9 27 in-lb torque, 10mm “D” shaft, 10-120 seconds
SQM48.497B9 177 in-lb torque, 14mm keyed sha
ft, 30-120 seconds
SQM48.697B9 310 in-lb torque, 14mm keyed sha
ft, 60-120 seconds
SQM91.391A9 600 in-lb torque, 25mm keyed sha
ft, 30-120 seconds
Coupling – Qty (1) Required (Provided With S
ome Mounting Brackets – See Below)
Zero-lash, flexible couplings are available f
or each actuator. For more information, refer to
Document No. CPBK-1000.
CCM10DCA… Flexible couplings for SQM45… actuators
CFM14KCB… Flexible couplings for SQM48… actuators
CJM25KCA… Flexible couplings for SQM91… actuators
