LMV Series Technical Instructions
Document No. LV5-10
00
SCC Inc. Page 5 Section 1

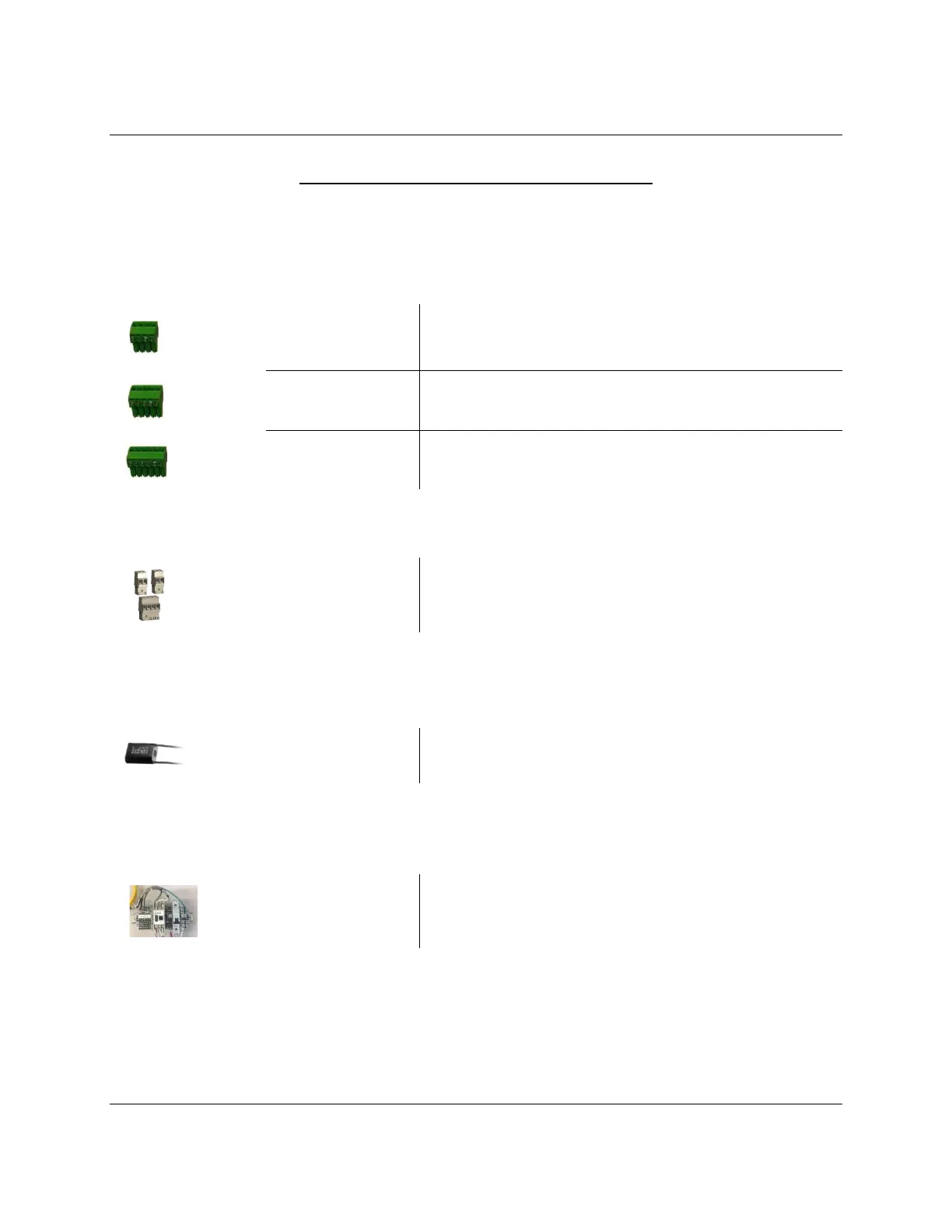

Control Panel Components (continued)
Replacement green connectors are available if
necessary. 4-pin connectors are for terminals
X52, X71, and X72. 5-pin connectors are for terminals X60, X61, X62, X70, and on each actuator
and O
2
module. 6-pin connectors are for terminals X50, X51, and X73.
1840382(5)
5 pack of spare 4-pin green connectors
1840395(5)
5 pack of spare 5-pin green connect
ors
1840405(3)
3 pack of spare 6-pin green connect
ors
An extra set of transformer terminals
is required if using a second transformer.
AGG5.2PLUGS
Extra set of terminals for a second
transformer (PRI,
SEK1, SEK2)
An optional spark quencher is available t
o reduce voltage spikes typically caused by closing a
normally open vent valve.
XEB0471
Spark quencher for reducing voltage spikes
An optional converter is available to
allow communication between RS-485 devices and the
LMV5 which utilizes the RS-232 communication protocol.
TS-5X-KT
RS232 to RS485 DIN rail converter kit
