LMVSeriesTechnicalInstructions 
DocumentNo.LV5‐1000
SCCInc. Page9 Section4


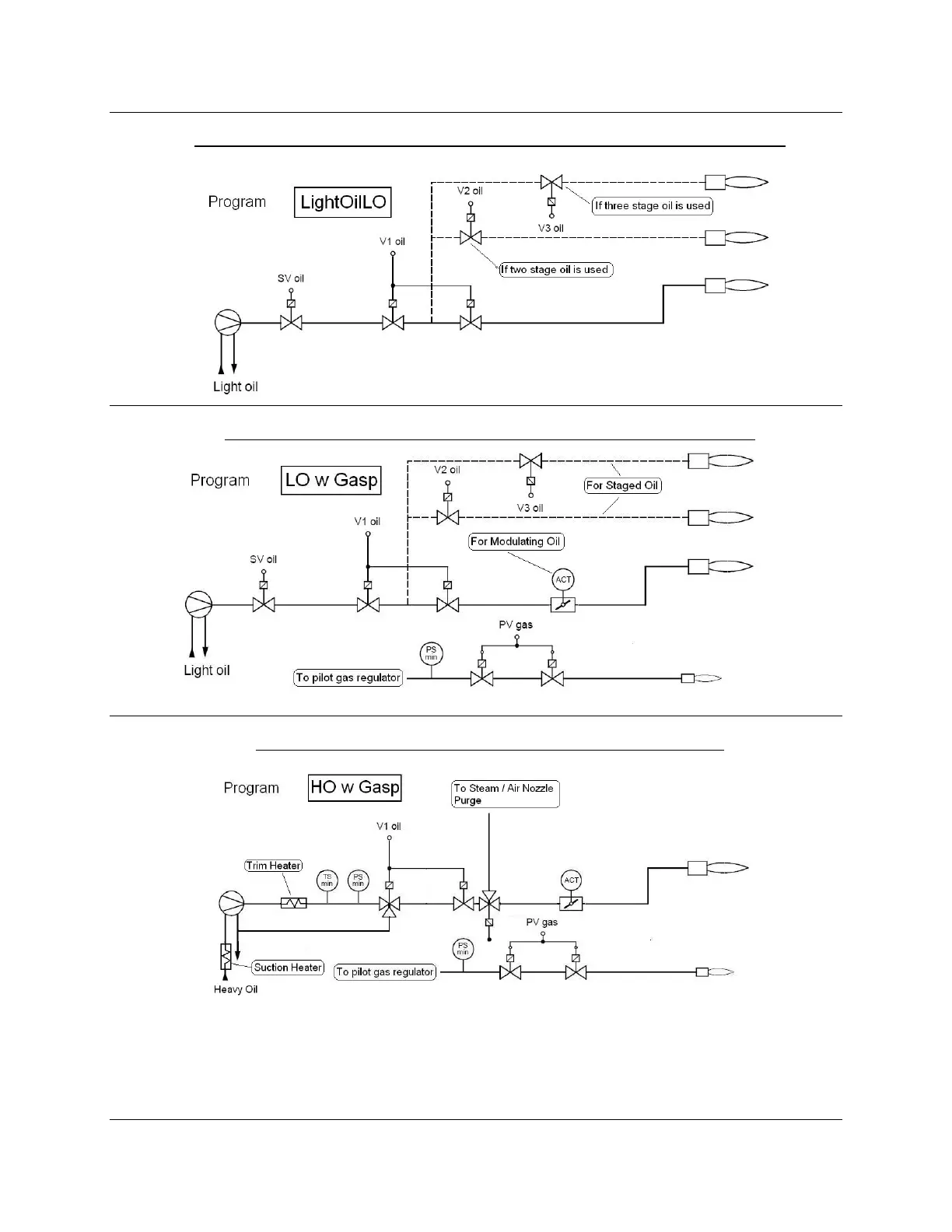

DirectSparkIgnitionforLightOil,Single‐stageorMulti‐stage(othertrainspossible)




GasPilotIgnitionforLightOil,StagedorModulating(othertrainspossible)



GasPilotIgnitionforHeavyOil,Modulating(othertrainspossible)


Legend:
ACT= Actuator  SV= Shutoff(safety)valve
V1= Oilvalves(main) PS= Pressureswitch
V2= Stage2oilvalve  PV= Pilotvalve
V3= Stage3oilvalve  TS= Temperatureswitch

