Sensors
Pressure Sensors – Qty (1) Required for St
eam Boilers

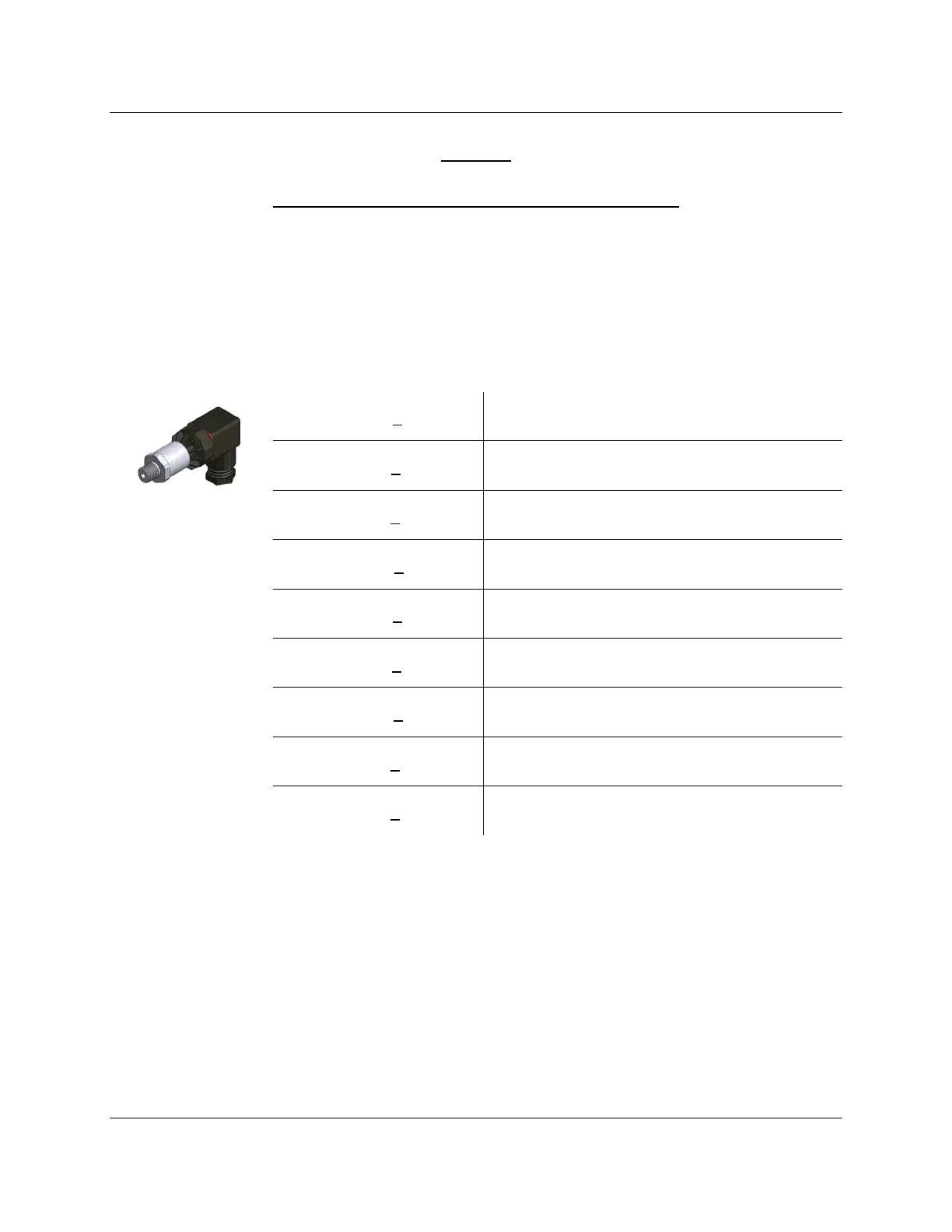

A wide range of pressure sensors is available
for steam boilers. All sensors have a 1/4” NPT
process connection and a 1/2” NPT conduit connection. Sensors are available with either a 4-
20 mA or 0-10 Vdc output signal. All available 4-20 mA sensors are listed below. To order a 0-
10 Vdc sensor, change the underlined digit to a 1. The 0-100 PSI sensor is only available with a
4-20 mA signal. For more information on 7MF pressure sensors, refer to Document No. SEN-
2000.
7MF1565-4BB00-5EA1
0-15 PSI range, 4-20 mA signal
7MF1565-4BE00-5EA1
0-30 PSI range, 4-20 mA signal
7MF1565-4BF00-5EA1
0-60 PSI range, 4-20 mA signal
7MF1565-4BG00-5EA1
0-100 PSI range, 4-20 mA signal
7MF1565-4CA00-5EA1
0-150 PSI range, 4-20 mA signal
7MF1565-4CB00-5EA1
0-200 PSI range, 4-20 mA signal
7MF1565-4CD00-5EA1
0-300 PSI range, 4-20 mA signal
7MF1565-4CE00-5EA1
0-500 PSI range, 4-20 mA signal
7MF1565-4CF00-5EA1
0-750 PSI range, 4-20 mA signal
