08/2005 Machining the Workpiece
3.11 Simulatin
g
machinin
g
3
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 3-117

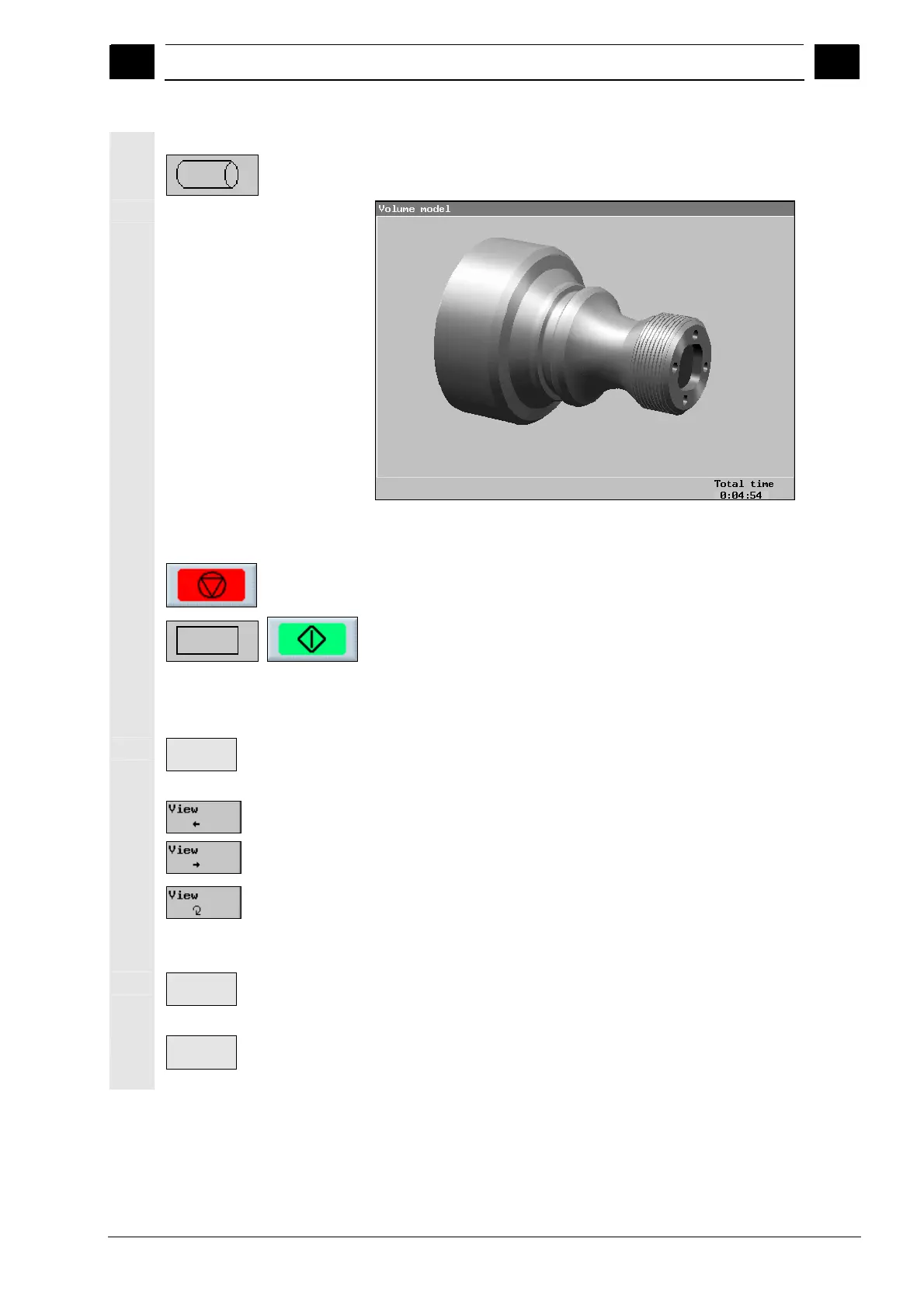

Volume model
 Press the "Volume model” softkey.
Volume model
Displaying the volume model
 Press the "Stop" softkey if you would like to display the volume
model at the current point in the machining.
 Press the "Side view" and "Start" softkeys if you would like to
continue the simulation.
View: Changing
Details
>
 Press the "Details" softkey if you want to change the view.
-and-
or
 Press the "View " or "View " softkey to rotate the workpiece
about the X-axis.
-or-
 Press the "View 3" softkey to rotate the workpiece about the Z-
axis.
-or-
Cut
 Press the "Cut" softkey to cut up the workpiece.
-and-
Cut
 Press the "Cut" softkey again if the volume model is to be
displayed in full again.
