3
Machining the Workpiece 08/2005
3.11 Simulatin
machinin
3
♥ Siemens AG, 2005. All rights reserved
3-118 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
You can find further information on changing the cut-away in Sec.
"Changing the cut-away".

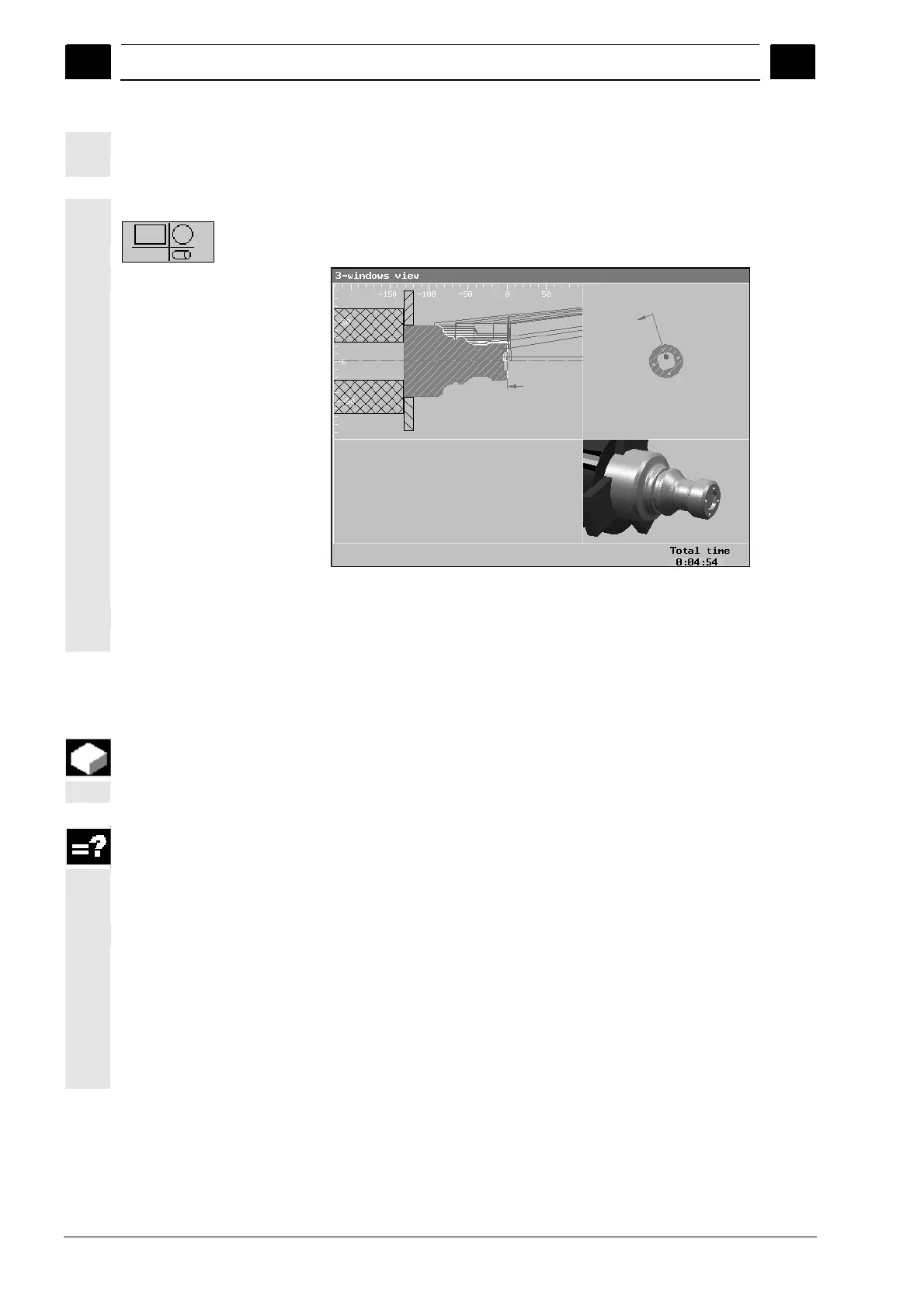

3-window view
îš¾ Press the "3-window view" softkey.
3-window view
You can find information on changing the cut-away in Sec. "Changing
the cut-away".
3.11.6 Changing the cut-away
If you would like to pan, enlarge, or decrease the size of the cut-away
on the graphical display, e.g. to view details or display the complete
workpiece, use the Zoom or magnifying glass.
Increase or decrease the size of the existing cut-away from the center
using the zoom function. Then you can pan the new cut-away.
Using the magnifying glass, you can first define the cut-away and then
increase or decrease its size.
The zoom/magnifying settings are program-specific, i.e. the settings
are retained if you change the cut-away and switch to the work plan
and then back to the graphics, for example. If you then simulate the
new program, ShopTurn will use the default settings of zoom and the
magnifying glass.
But you can also return to the default display of the workpiece from a
changed cut-away.
