11
08/2005 Examples
11.1 Standard machinin
rocesses
11
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 11-411

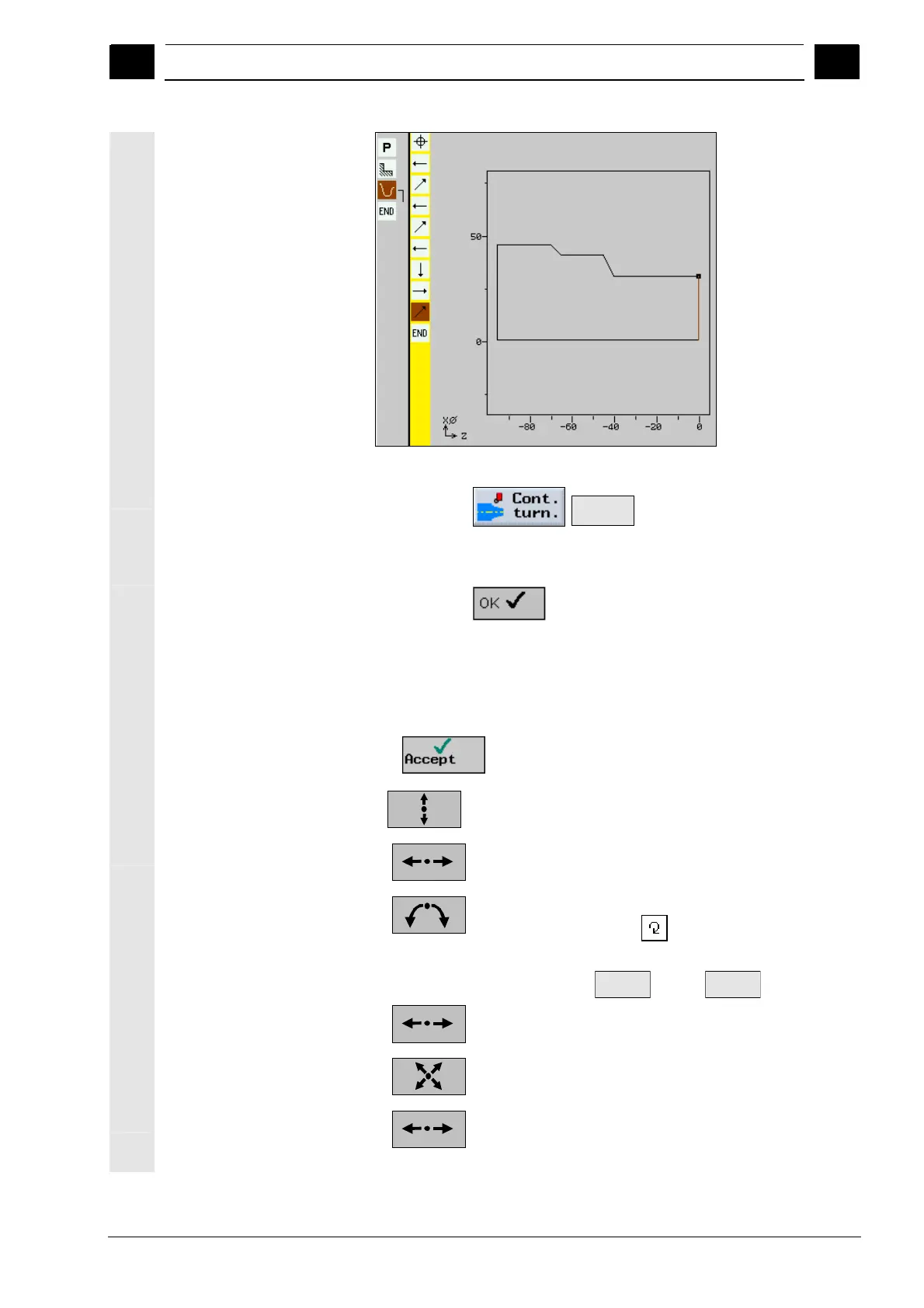

Blank contour
5. Input of finished part
contour with contour
computer
îš¾ Press the
New
contour
softkeys
îš¾ Contour name (here: Input Cont_2)
îš¾ Press the
softkey
îš¾ Determine the starting point of the contour:
X
0 abs
Z
0 abs
îš¾ Input the following contour elements and confirm each with the
softkey:
1.
X 48 abs FS 3
2.
α2 90°
3.
Direction of rotation
R 23 abs X 60 abs K -35 abs
I 80 abs
Dialog
selection
Dialog
accept
FS 2
4.
Z -80 abs R 6
5.
X 90 abs Z -85 abs FS 3
6.
Z -95 abs
