POLYMOBIL Plus SPR8-125.061.02 Page 2 of 8 Siemens AG
Rev. 01 01.00 TD SD 24 Medical Engineering
2 - 2 Checking the assemblies
To check the assemblies, remove the upper covers, the handles and the lower front cover
of the switchbox.
Proceed as follows:
• Switch POLYMOBIL Plus OFF and disconnect the line voltage plug.
• Remove the 4 Allen screws (1/Fig.2) in the handle and remove the handle
(refer to Fig.2 and Fig.3).

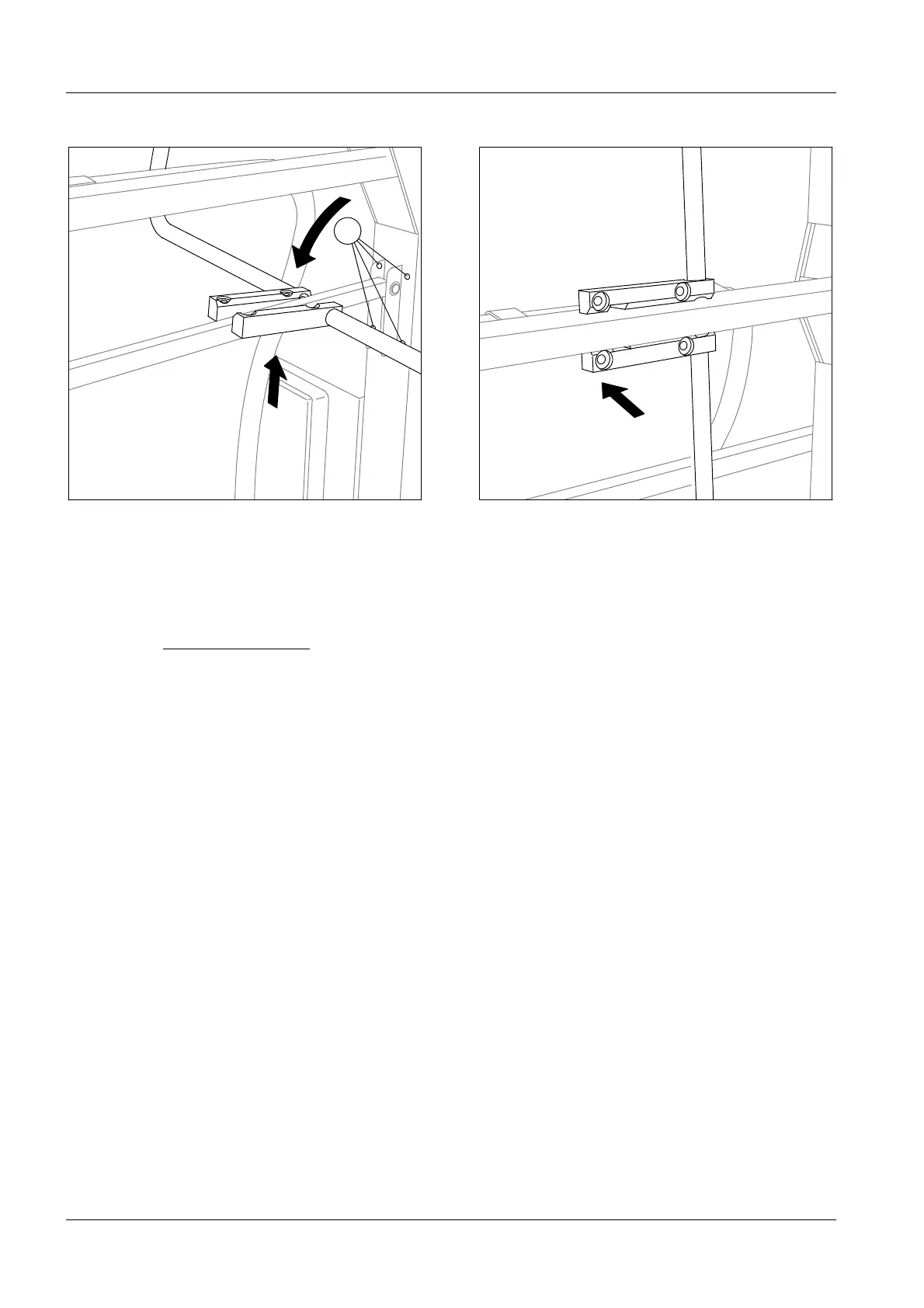

Fig. 2 Fig. 3
1
