• If the deviation is larger, loosen the 4 Allen screws a little ( arrow /Fig.18/19) and shift the
collimator accordingly.
After adjusting the collimator, tighten the screws again (arrow / Fig.18/19).
• Repeat the test and readjust the collimator until the light and radiation fields are within
the acceptable tolerance (< 1.6 cm).

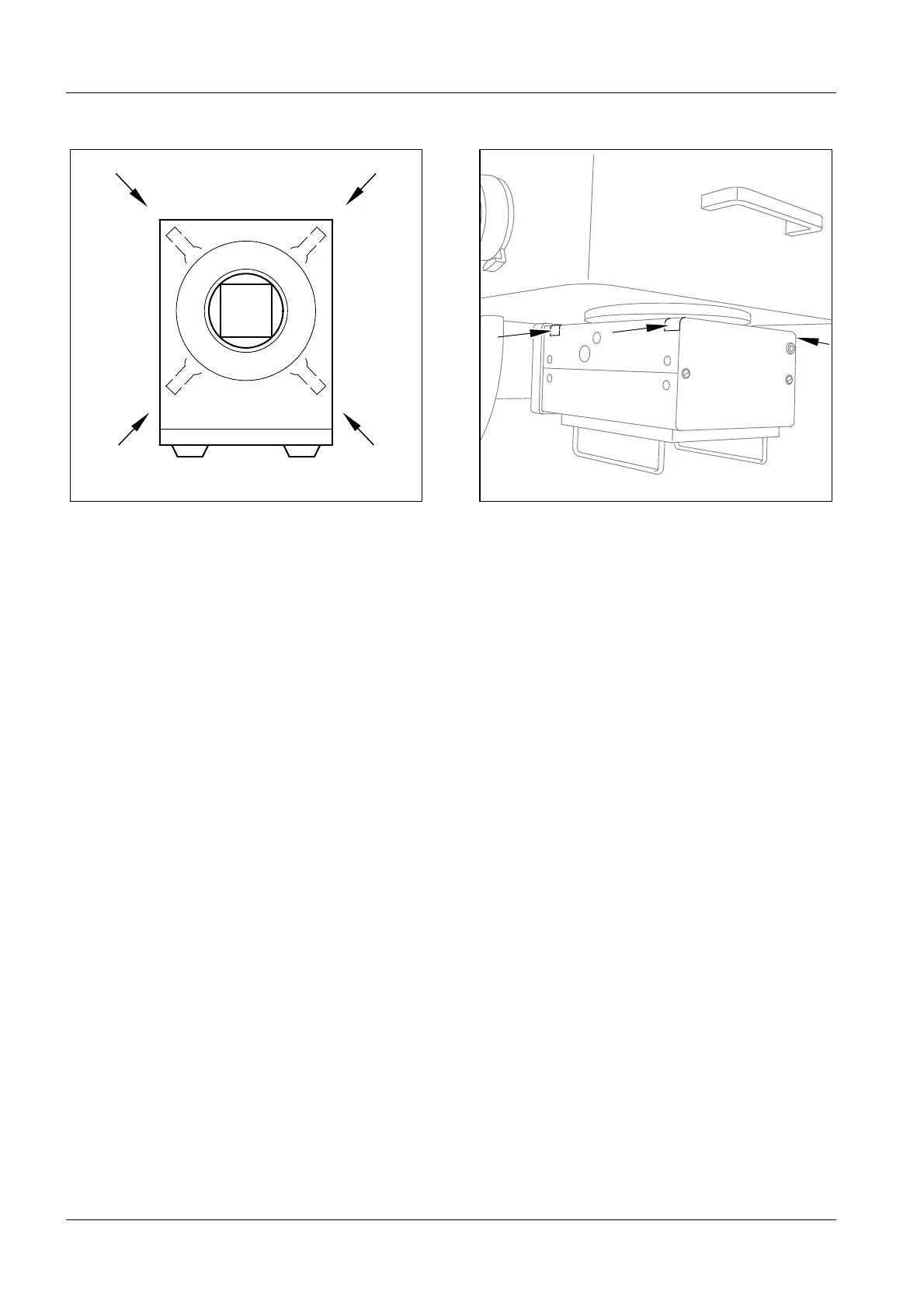

Fig. 18 Fig. 19
