Siemens RDF301.50 Series Basic Documentation

57 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07

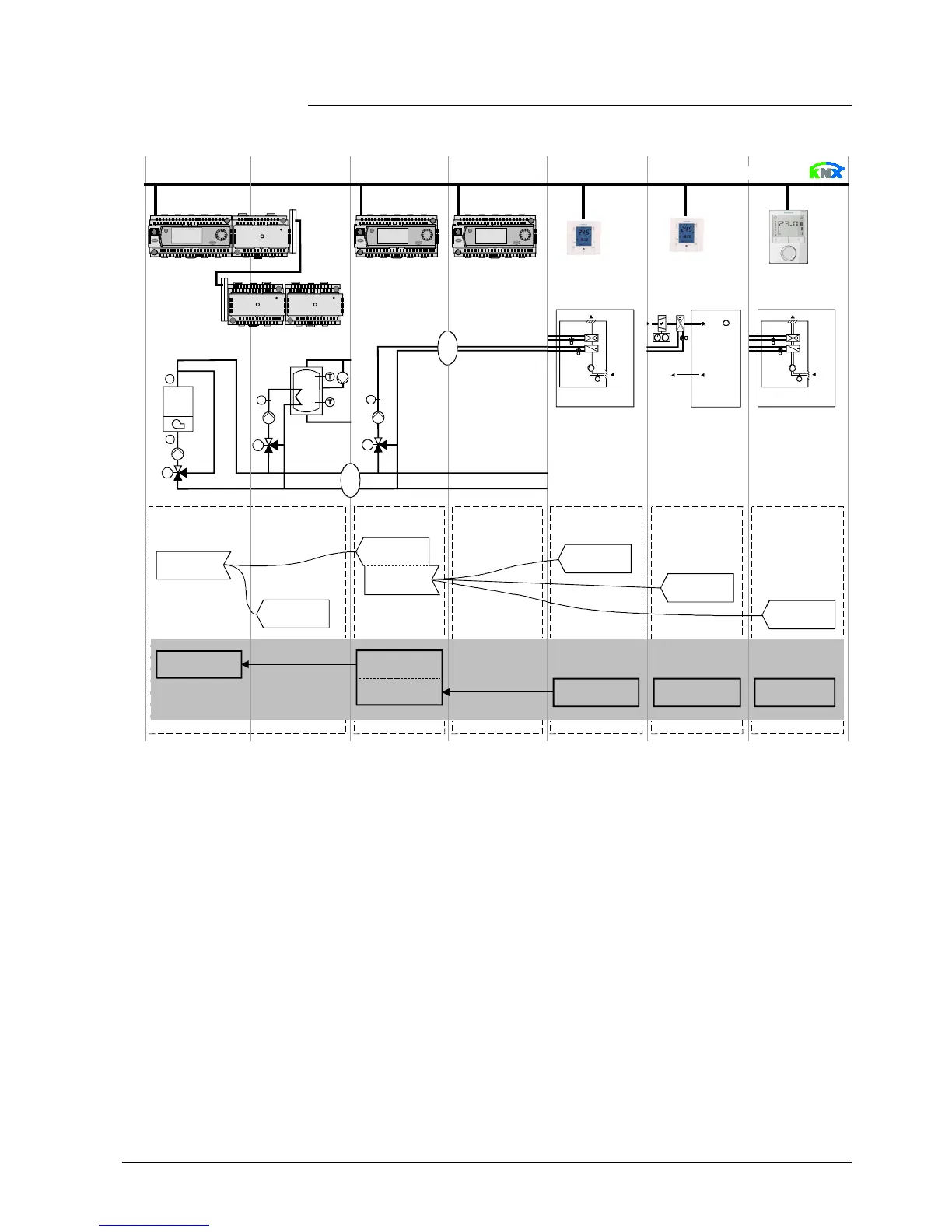

3.11.4 Example of heating and cooling demand zone
The building is equipped with Synco controls on the generation side and RDF /
RDG thermostats on the room side.
RMH760 RMH760 RMB795
Konnex TP1
RDG...RDU...
RDF...
T
T
T
T
1
2
P3171Z01
Heat requistion
Heat demand
Heat distr zone 1
Heat source
Controller 1 Controller 2
Controller 3
Controller 4 Controller 5 Controller 6
Controller 1 Controller 2 Controller 3 Controller 4 Controller 5 Controller 6
Heating circuit
fan coil
Fan coil
room A
VAV box
room B
Fan coil
room C
DHW heating
Heat demand
Heat demand
Heat demand
Heat demand
Heat requistion
Heat distr zone
source side: 1
Heat distr zone 2
Heat distr zone 2 Heat distr zone 2
Heat distr zone 2
Setting values
MV MV
T
T T
In the case of a typical application, the individual RDF / RDG room thermostats
send their heat demand directly to the primary controller (in the above example to
the RMH760).
(1) and (2) designate the numbers of the distribution zone.
∂ This type of application can analogously be applied to refrigeration distribution
zones.
∂ If no 2-pipe fan coil is used, heat and refrigeration demand signals are sent
simultaneously to the primary plant.
Explanation relating to
the illustration
Note:
