7-6
System Manual
C79000-G8576-C199-06
IM 300-5 (-5CA11)
X1
X2
4
16 9
8
1
J2
J1
J3
J8
X3
X4
LED1
LED2

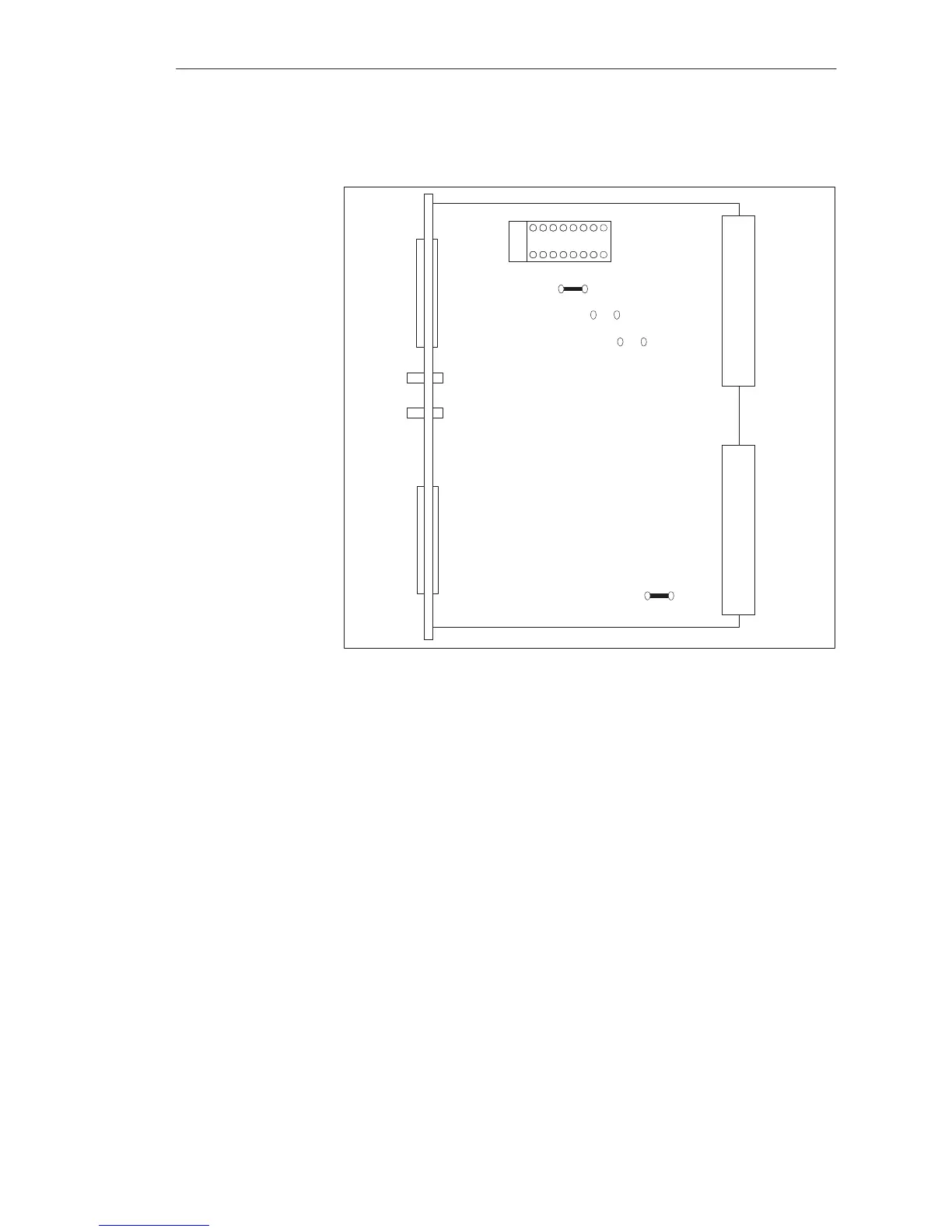

Figure 7-3 Location of Jumpers on the IM 300-5 (-5LB11) (when Delivered)
You must insert jumper 8-9 at location 4 for address setting in the extended
I/O area (O area). All other jumpers must remain in their factory settings.
Jumper
Assignments
Interface Modules
