7-8
System Manual
C79000-G8576-C199-06
IM 300-3
EU183U
IM 312-3
EU183U
IM 312-3
EU183U
IM 312-3
EU183U
IM 312-3
S5-135U/155U
CC
Terminator
Total Length of Lines 2 m max.

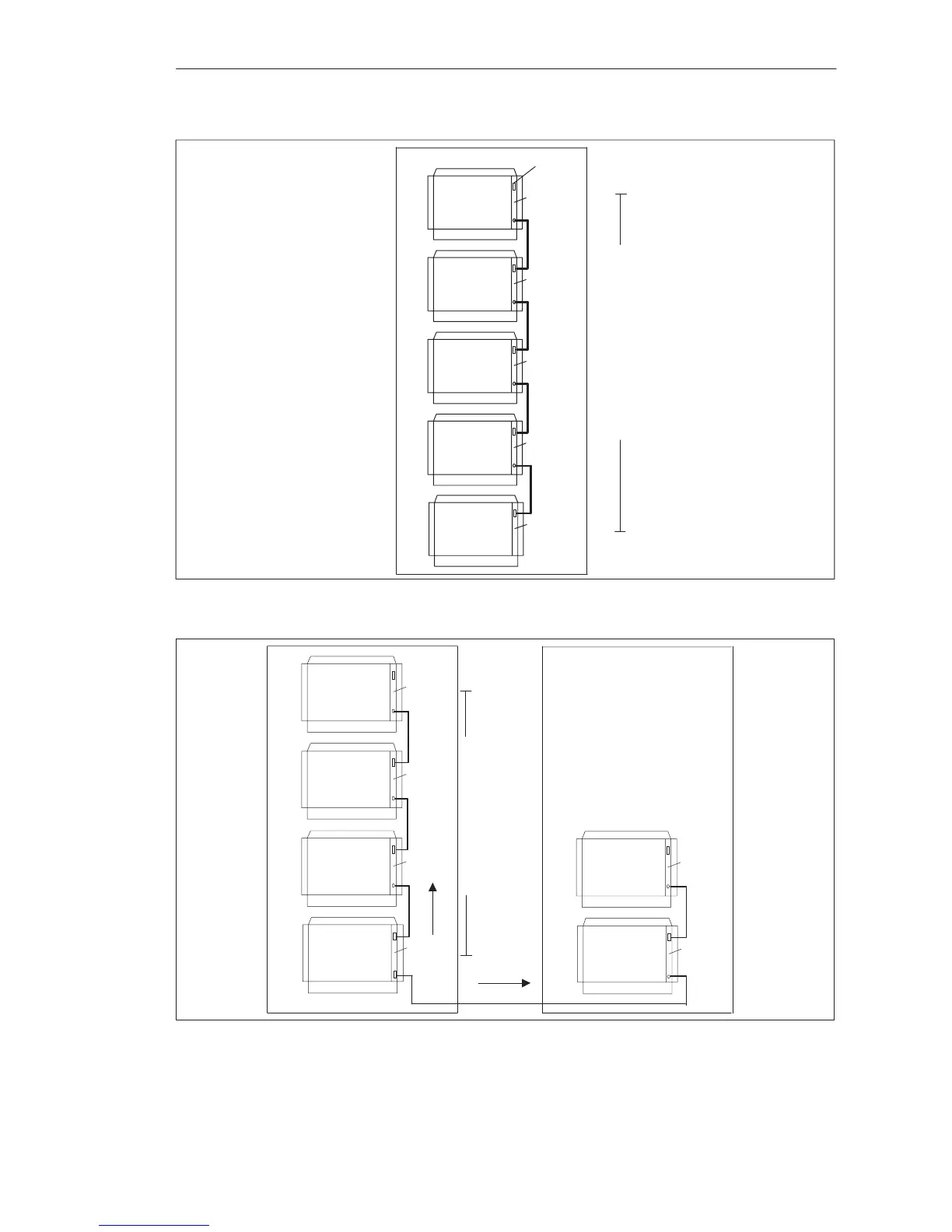

Figure 7-5 Centralized Communication Between Central Controller and Expansion Units with a Power Supply
Unit
IM300-5S5-135U/155U
CC
IM312-5
IM312-5
IM312-5
(1.5m)
IM 312-5
EU 184U
EU 187U
EU 184U
EU 187U
EU 184U
EU 187U
EU 184U
EU 187U
EU 184U
EU 187U
IM 312-5
(0.5m)
With this arrangement, the two
cabinets must be electrically
interconnected.
5 A max.
5 A max.
Total Length of Lines 2 m max.
Figure 7-6 Centralized Communication Between Central Controller and Expansion Units without a Power Supply
Unit
The EU with the highest current consumption should be positioned as closely
as possible to the CC.
Interface Modules
