SC 7000 and SC 9000XL Patient Monitors Service Manual
ASK-T898-03-7600 Siemens Medical Systems, EM-PCS Danvers 105
7k9kXLSM.apb.CD_ROM.fm/04-99/kaupp
NOT A CONTROLLED DOCUMENT

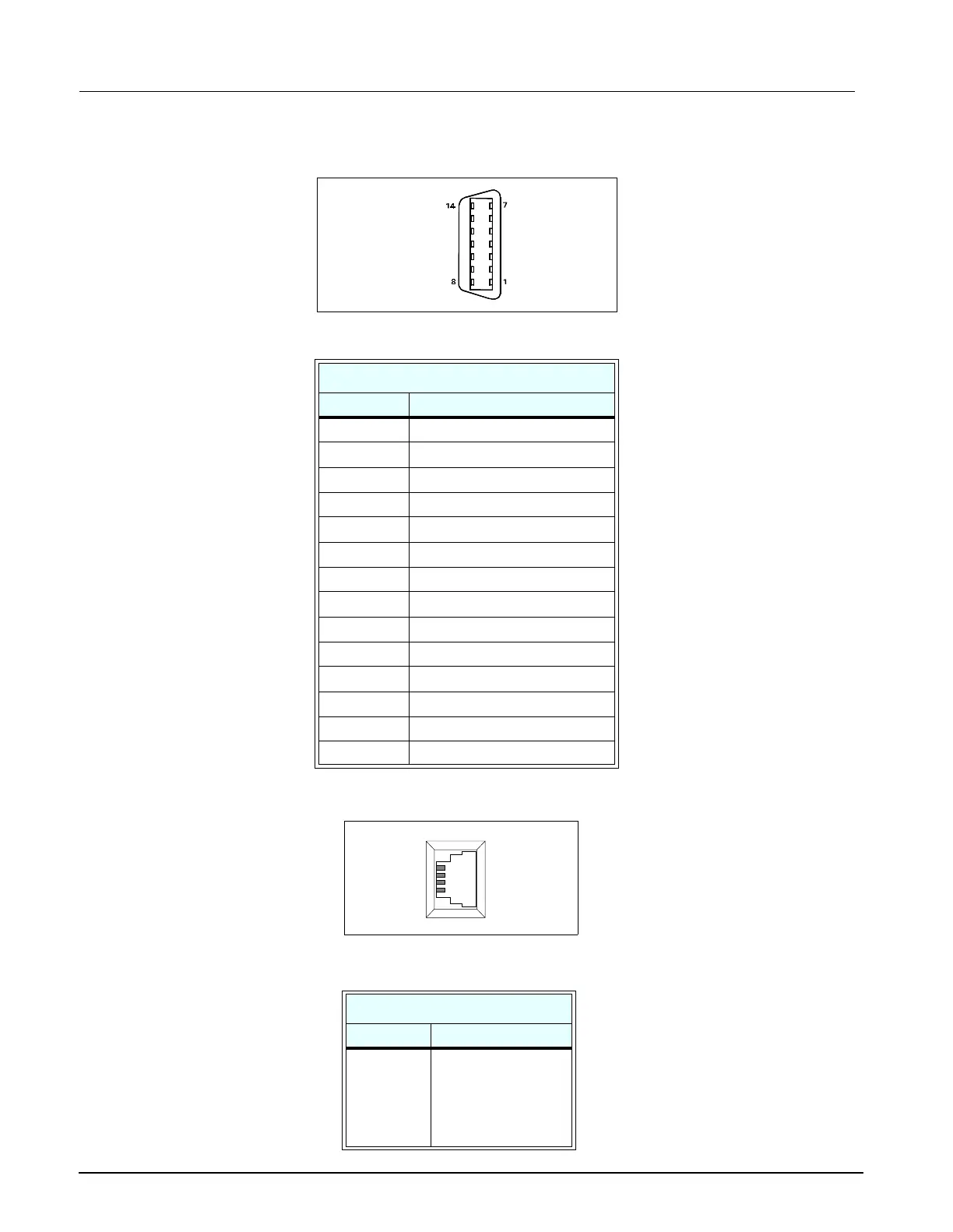

9 SC 7000 / SC 9000XL Analog Output Connector, X10
Figure B-12 Analog Output Connector (refer to Table B-10)
10SC 7000 / SC 9000XL Network Connector
(
Requires ≥VC2 software
)
Figure B-13 Network Connector (Refer to Table B-11.)
Table B-10 Analog Output Connector, X10, Pinouts
Analog-Out
Pin No. Signal
1GND
2 Hd Audio Out
3 Hd Audio Rtn
4NC
5 Diag TxD
6 Chan2 Rtn
7 Chan2 Analg
8 Hd Audio Det
9AGND
10 AGND
11
12 Chan1 Anlg
13 Chan1 Rtn
14 Diag RxD
Table B-11 Network Connector Pins
Network
Pin No. Signal
1TxD+
2TxD-
3RxD+
4RxD-
