Siemens SC 7000 - 16 Input Connector on etCO2 Module; Figure B-19 Input Connector on etCO2 Module (Refer to Table B-16.); Table B-16 etCO2 Module Input Connector Pins

SC 7000 and SC 9000XL Patient Monitors Service Manual
ASK-T898-03-7600 Siemens Medical Systems, EM-PCS Danvers 109
7k9kXLSM.apb.CD_ROM.fm/04-99/kaupp
NOT A CONTROLLED DOCUMENT
16Input Connector on etCO2 Module

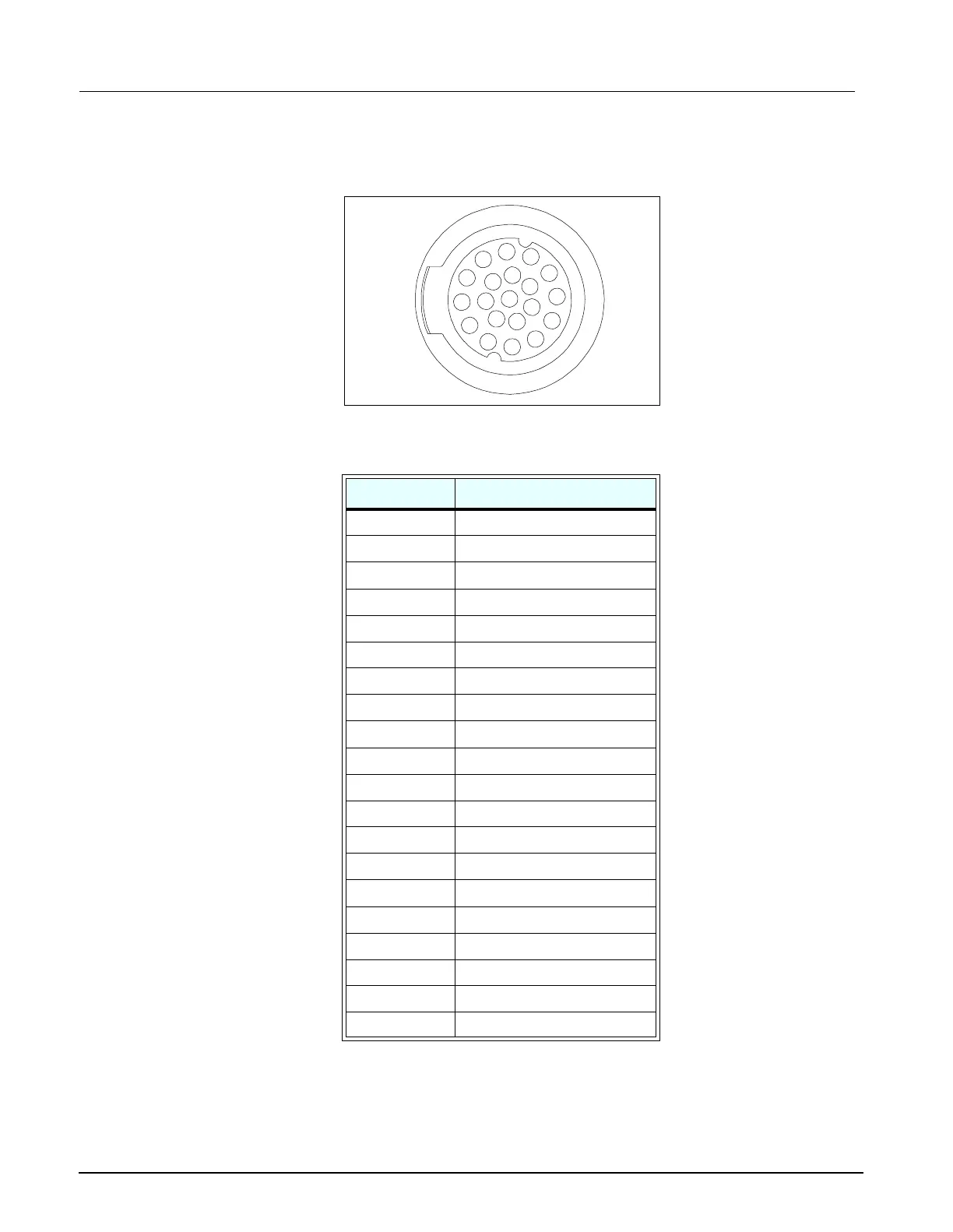

Figure B-19Input Connector on etCO2 Module (Refer to Table B-16.)
1
2
3
4
5
6
7
8
9
10
11
12
19
18
17
16
15
14
20
13
Table B-16 etCO
2
Module Input Connector Pins
Pin No. Signal
1 SRC-
2 SRC+
3EE CS
4REF IN
5 CASE HTR
6 DATA IN
7EE SK
8HTR RTN
9EE DOUT
10 +5V
11 EE DIN
12 SPAN SW
13 SRC SHLD
14 ZERO SW
15 CASE THRM
16 DET HTR
17 DET THRM
18 -12V
19 +12V
20 AGND
