Connecting
6.4 Power supply
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
131
Procedure
N
L1

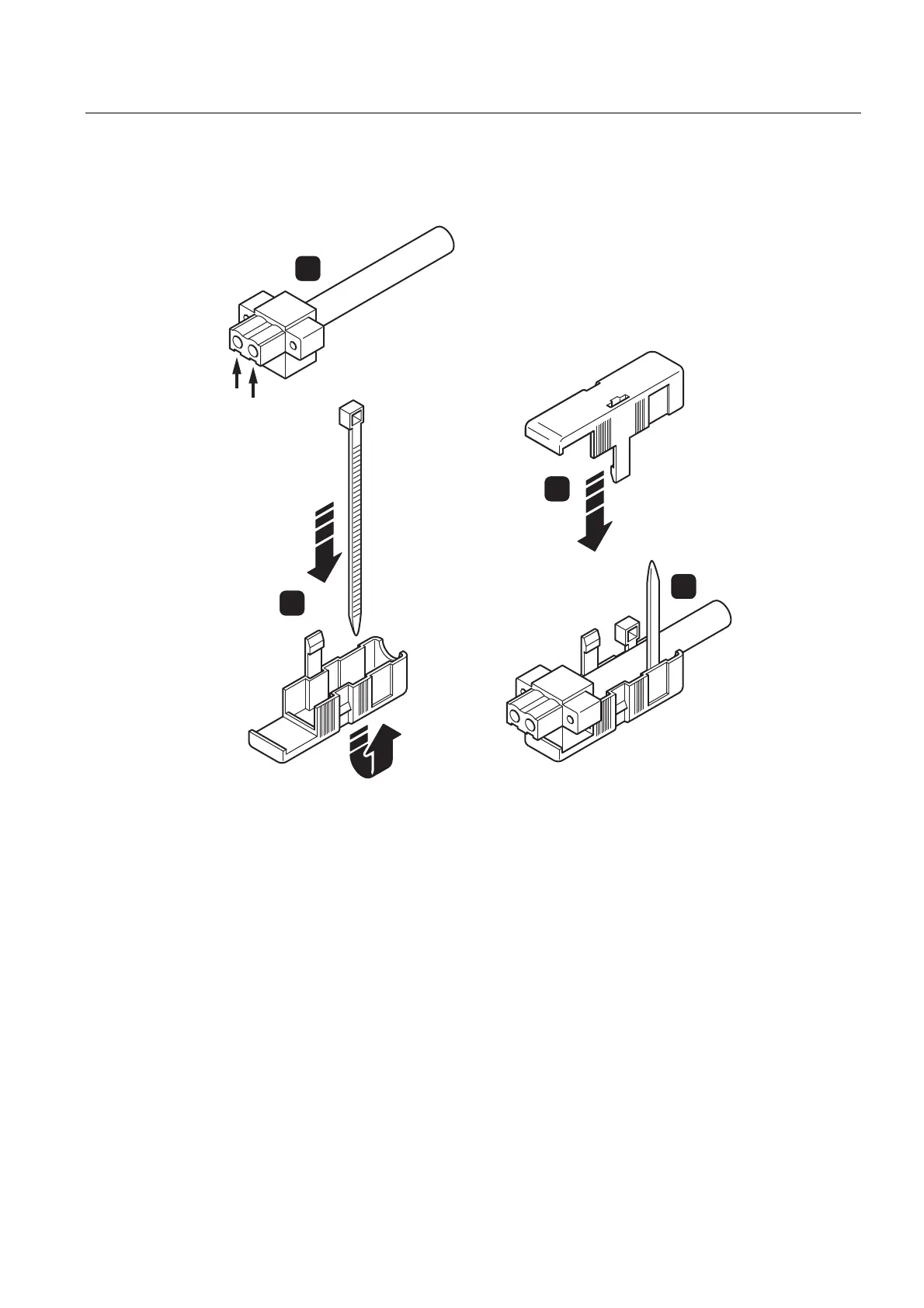

Follow the steps below to fit the connector to a two-wire cable:
1. Connect the cable to the terminal block. Strip the cable jacket only as far as necessary to
be able to strip the insulation and connect up the wires.
2. Feed the supplied cable tie through the two openings in the lower part of the housing as
shown in the figure.
3. Insert the terminal block with the connected cable in the lower part of the housing and
tighten the cable tie. The cable must be securely held in the lower part of the housing by
the cable tie. Cut off the excess cable tie.
4. Fit the upper part of the housing. The housing is correctly mounted when the two catches
audibly click into place and are flush with the surface of the housing.
