Siemens SCALANCE X-300

Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
47
4.2.1.3 SCALANCE X307-3 product characteristics
Possible attachments
The SCALANCE X307-3 has 7 RJ-45 jacks and 3 FO ports (for multimode fiber) for the
connection of end devices or other network segments.

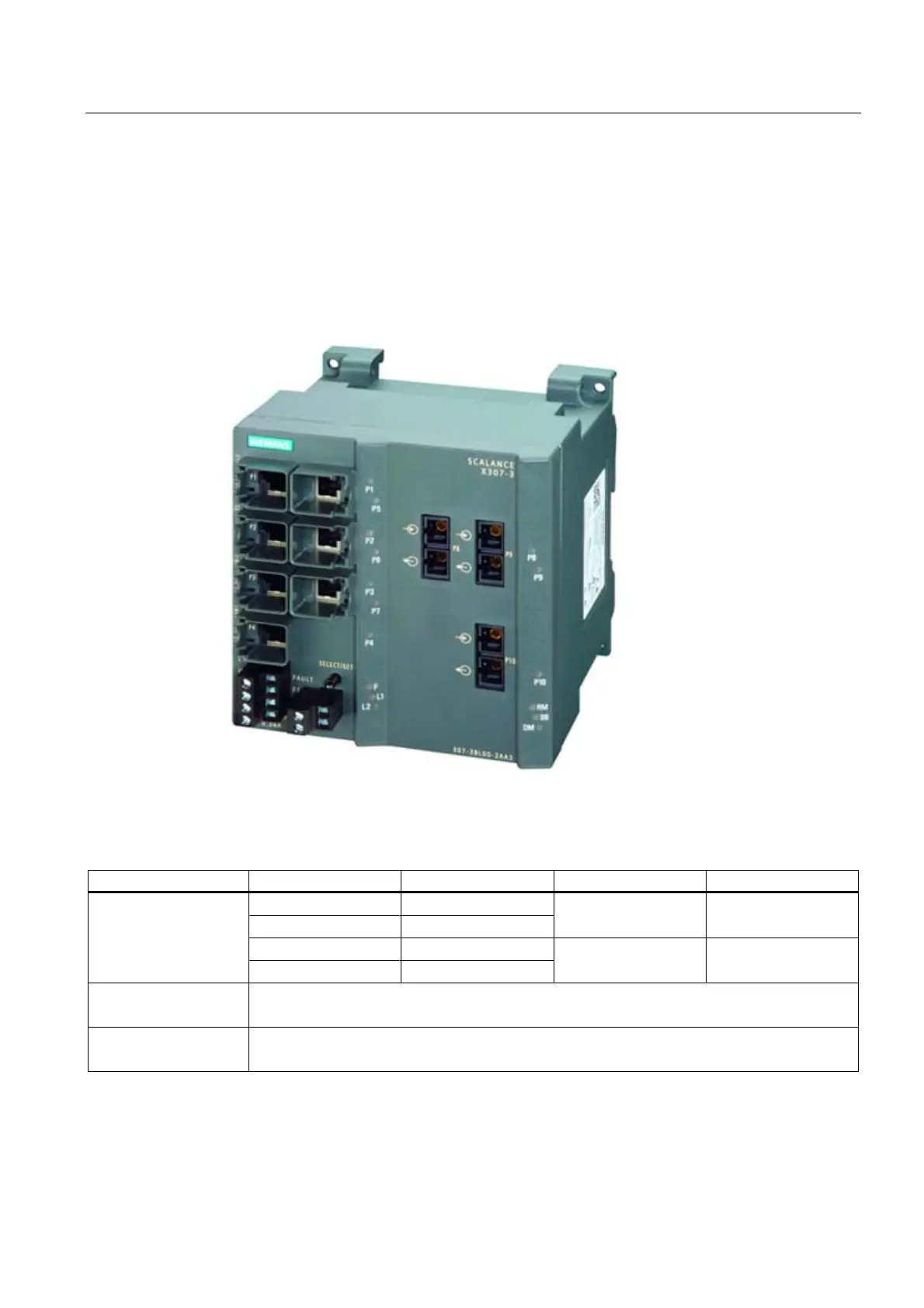

Figure 4-3 SCALANCE X307-3
Column 1 2 3 4
P1 P5
P2 P6
P8 *
3
) P9 *
3
)
P3 P7
Port number
P4 -
- P10 *
3
)
Connection type
electrical
No marking → Fast Ethernet port
*
1
) marking → gigabit Ethernet port
Connection type
optical
*
2
) marking → Fast Ethernet port
*
3
) marking → gigabit port
